Functional Description
Mass Spectrometer
Thermo Scientific TSQ Series Hardware Manual 21

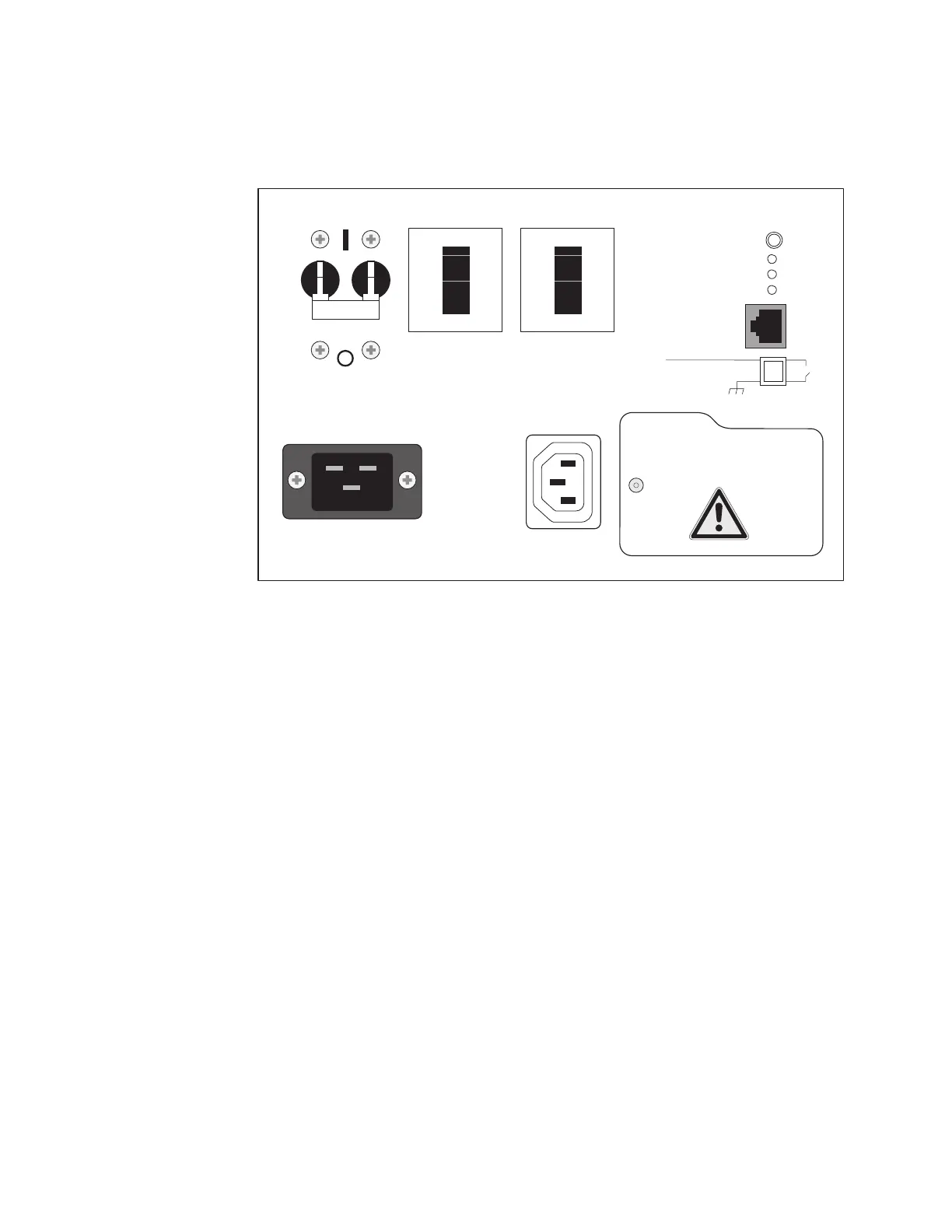

Figure 13. Power panel of the TSQ Quantum Access or TSQ Quantum Access MAX mass
spectrometer, showing switches and LEDs
The electronics service switch (labeled Electronics) is located next to the main power circuit
breaker on the mass spectrometer power panel (Figure 12 and Figure 13). In the Service Mode
position the switch removes power to all components of the mass spectrometer other than the
vacuum system. The Operating Mode position supplies power to all non-vacuum system
components of the mass spectrometer.
On the TSQ Quantum Access and TSQ Quantum Access MAX mass spectrometers, a
vacuum service switch (labeled Vacuum) is located next to the Electronics service switch on
the mass spectrometer power panel (Figure 13). In the Service Mode position the switch
removes power to all components of the vacuum system, including the forepump,
turbomolecular pump, and turbomolecular pump controller. The switch in the Operating
Mode position supplies power to all vacuum system components of the mass spectrometer.
The System Reset button is also located on the mass spectrometer power panel. Pressing the
System Reset button causes the embedded computer on the System Control PCB to reboot.
The TSQ mass spectrometer software is then reloaded from the data system. See “Resetting
the Mass Spectrometer” on page 57 for information on how to reset the mass spectrometer.
Three LEDs are located on the power panel:
• The Pump On LED illuminates green when the forepump current sensor detects current
to the forepump. The LED is off when the forepump current sensor does not detect
current to the forepump. If the current sensor detects a loss of current when the TSQ
mass spectrometer is on, high voltage turns off and the vacuum system vents.
System Reset
Ethernet
100 Base T
+ 30V – Max
Start In
V ~230, 50/60 Hz,
5.0 A Max
Power In
V ~230, 50/60 Hz, 10.0 A Max
Operating Mode
Service Mode
Electronics
Main Power
On
Qualified
Service
Personnel
Only
Off
Forepump
Pump On
Vent Valve Closed
Ethernet Link OK
Refer to Manual
Operating Mode
Service Mode
Vacuum
