3-9
3

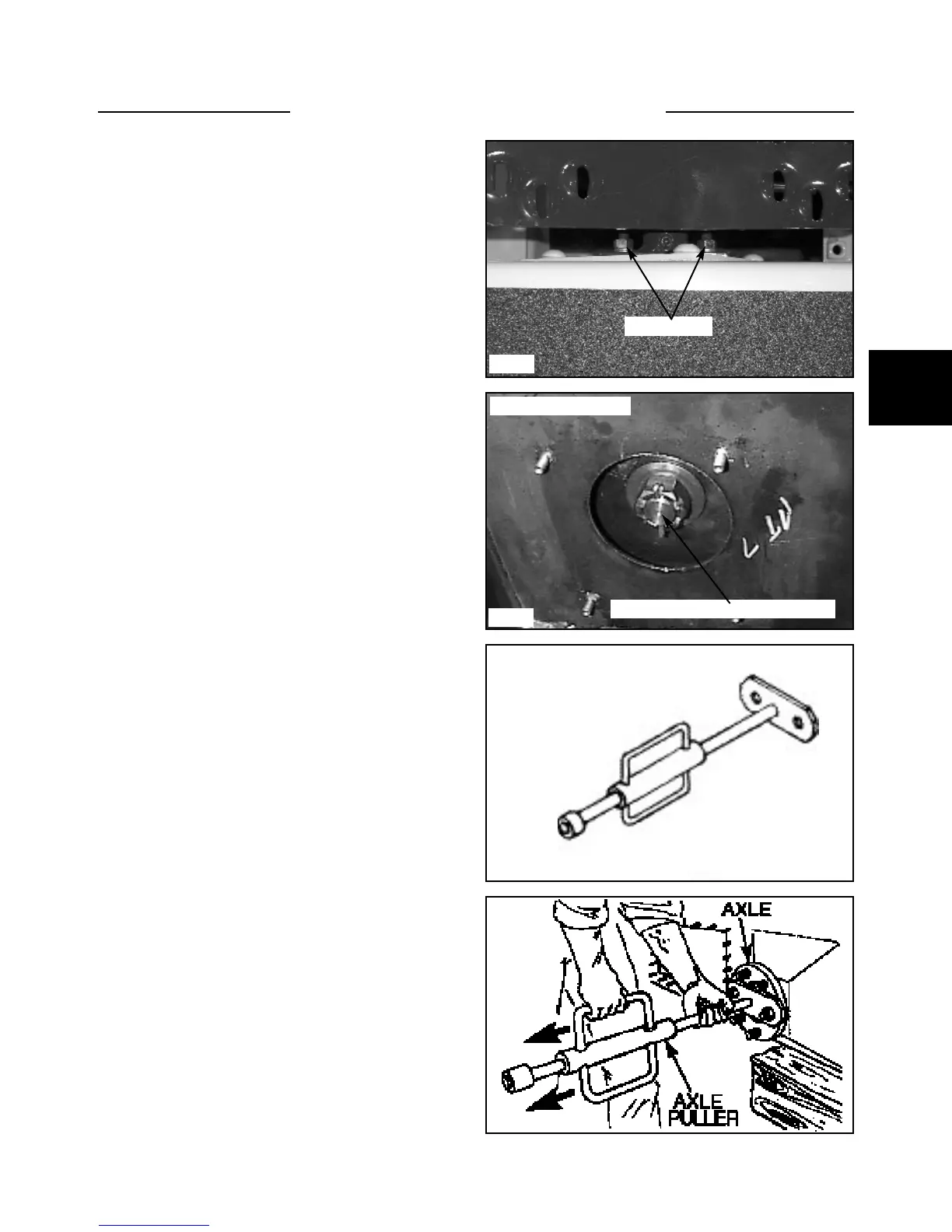

Axle Removal
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Block the loader securely with all 4 wheels clear of
the ground. Lower the restraint bar to retract brake pins
from rear axle sprockets.
3 Remove the wheels from the side of the loader the
chain is to be removed.
4 Clean the excess dirt from the final drive drain plug
area located in the front of the loader. Clean the excess
dirt from the inspection cover area located between the 2
axle towers.
5 Drain the lubricating oil from the final drive housing.
Refer to Section 3.2 page 3-3.
6 Remove the final drive inspection cover located
between the 2 axles.
7 Remove the drive chain from the final drive housing.
Refer to Section 3.3 page 3-5.
8 FRONT AXLE: Remove the foot peal assembly if
so equipped. Refer to Section 4.
9 Remove the inner axle cover plate from the final
drive housing. (fig. C5080)
10 REAR AXLE: Remove the inner axle cover plate
from the final drive housing.
AXLE ASSEMBLY 3.5
12 Remove the castle nut and axle washers.
11 The axle may be held stationary by inserting a bar
between the wheel studs.
C5080
C228
C501
C2431
Remove nuts
Remove cotter pin, nut and washer
Not exactly as shown
