7-18
7
C5119

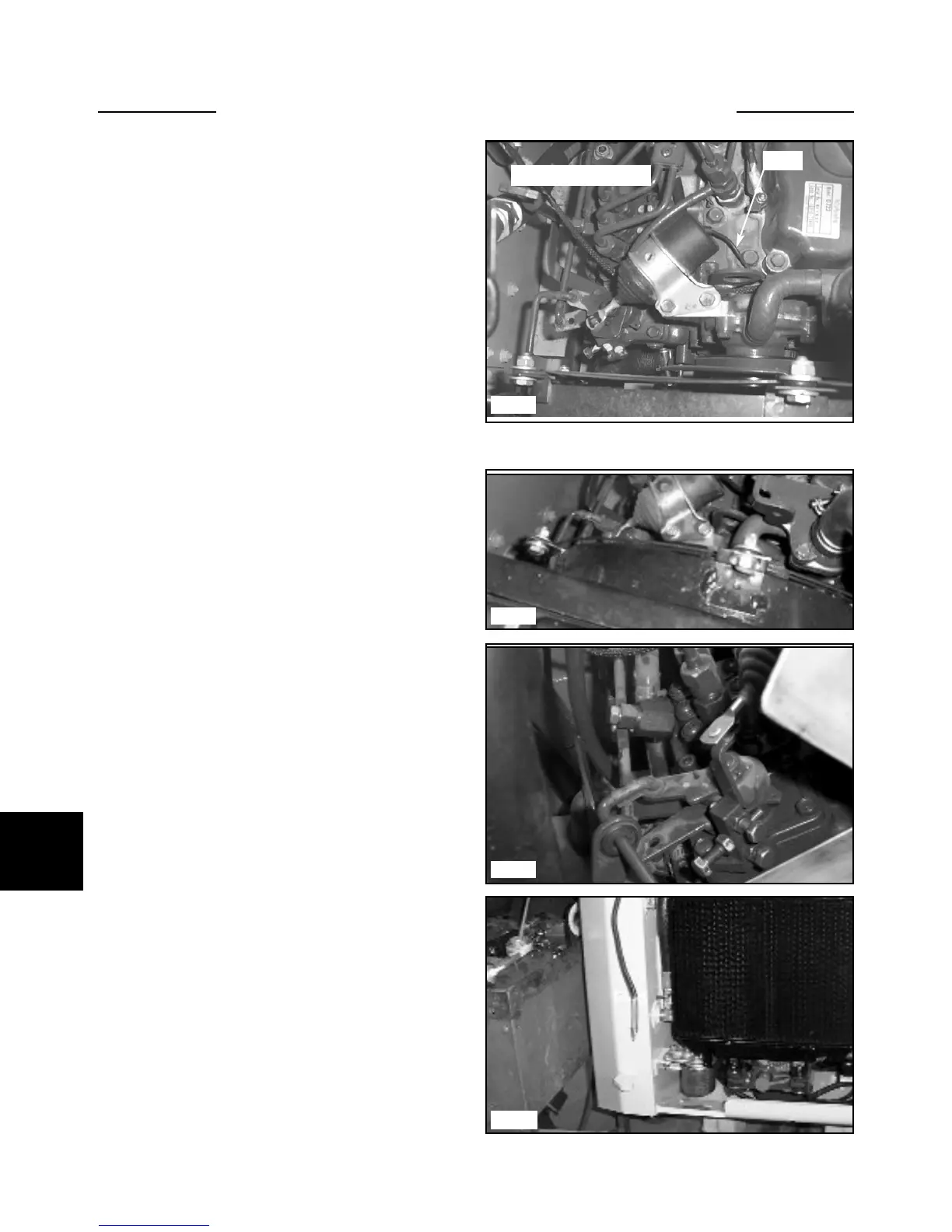

Stop Solenoid
The stop solenoid is energized only when the loader
engine is being stopped. When the ignition key is turned
from the run position to the stop position, the timer relay
supplies power to the stop solenoid for 15 seconds. The
stop solenoid pulls on the engine stop lever, stopping the
engine. After 15 seconds the stop solenoid returns to a
position of rest.
1 Park the loader on a level surface, lower the boom
arms, engage the parking brake and shut off the engine.
2 Access the engine compartment by opening the rear
door and lifting the engine cover. Latch the engine cover
in place.
3 Unplug the stop solenoid wire from the engine har-
ness.
4 Remove the two bolts that fasten the stop solenoid to
the engine. Lift the solenoid off . The solenoid should
pull freely out of the engine stop lever.
5 Check that the manual stop lever moves freely.
Lubricate and adjust if necessary.
6 Slide the new stop solenoid pin into the slot in the
engine stop lever. Fasten the solenoid to the engine using
two bolts.
7 Check that the engine stop lever rotates freely in the
solenoid linkage.
8 Connect the wire plug to the engine harness.
9 Start and stop the engine to check operation of new
solenoid.
ENGINE REPLACEMENT 7.3
C5650
C5290
C5291
Wire
