Thomas 85 - Installation; Rear Door 6.5; Removal

6-9
6

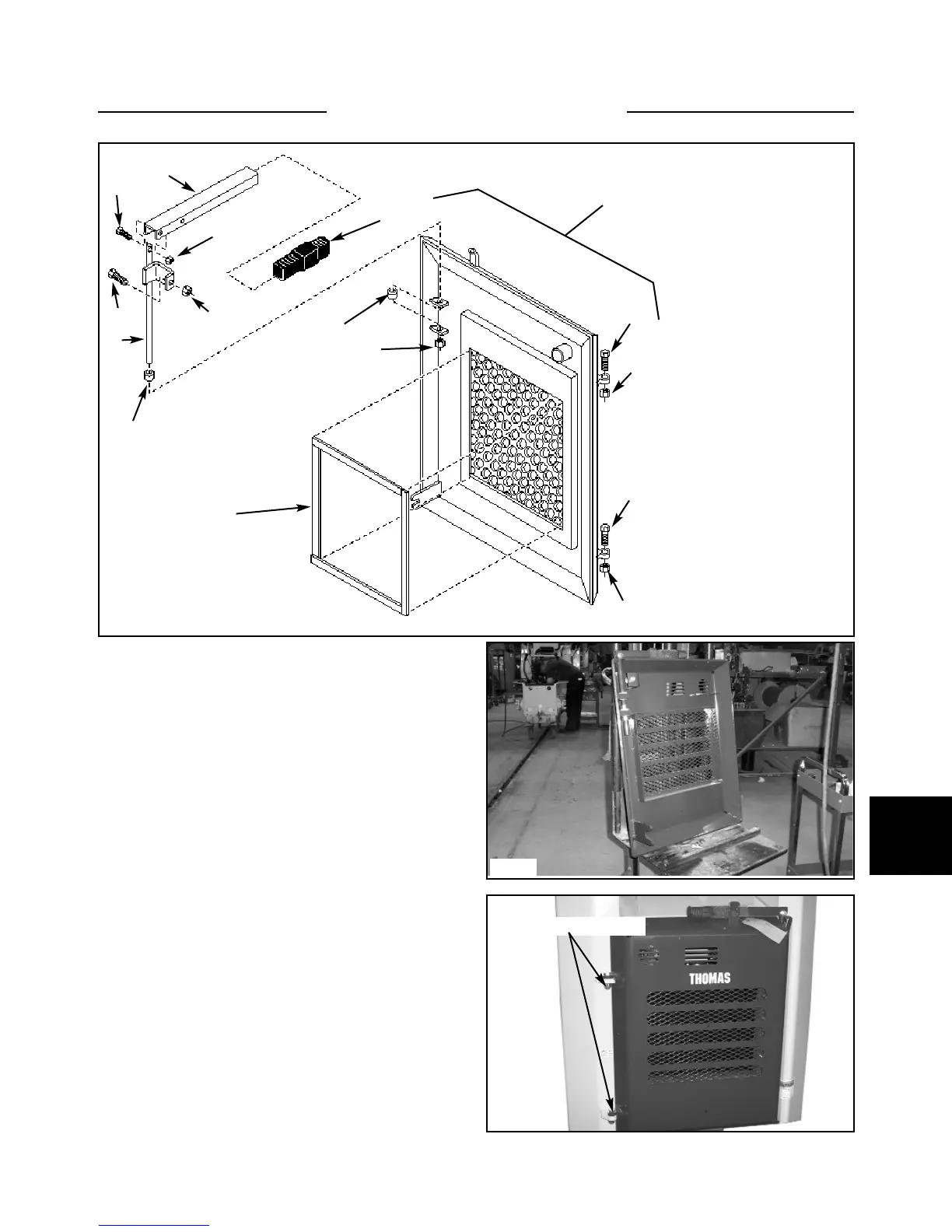

REAR DOOR 6.5
Removal
1 Open the rear door and using a hoist, take the weight
of the door off the mounting bolts. (fig. C5182)
2 Remove the mounting nuts and bolts. (fig. C5183)
3 Replace any worn mounting bolts as required.
Installation
1 Replace the door to the frame in the reverse order
above.
2 Adjust the door guide plate so the rear door looks
level with the engine compartment cover, and the door
slides freely into the closed position.
3 Adjust the door latch linkage bolt to provide an even
fit around the outside of the door.
1 Rear Door
2 Rubber Grip
3 Door Handle
4 Bolt
5 Nut
6 Bolt
7 Rear door latch
8 Nut
9 Bearing
10 Collar
11 Bolt
12 Nut
13 Neoprene, Closed Cell
C2477
1
11
12
11
12
10
9
2
13
3
4
5
6
8
7
9
C5183
C5184
Remove nuts and bolts
