2-26
2
DRIVE MOTOR 2.12
6 Replace the master link in the dive chain. Section 3.
shows chain replacement procedure.
Replacement

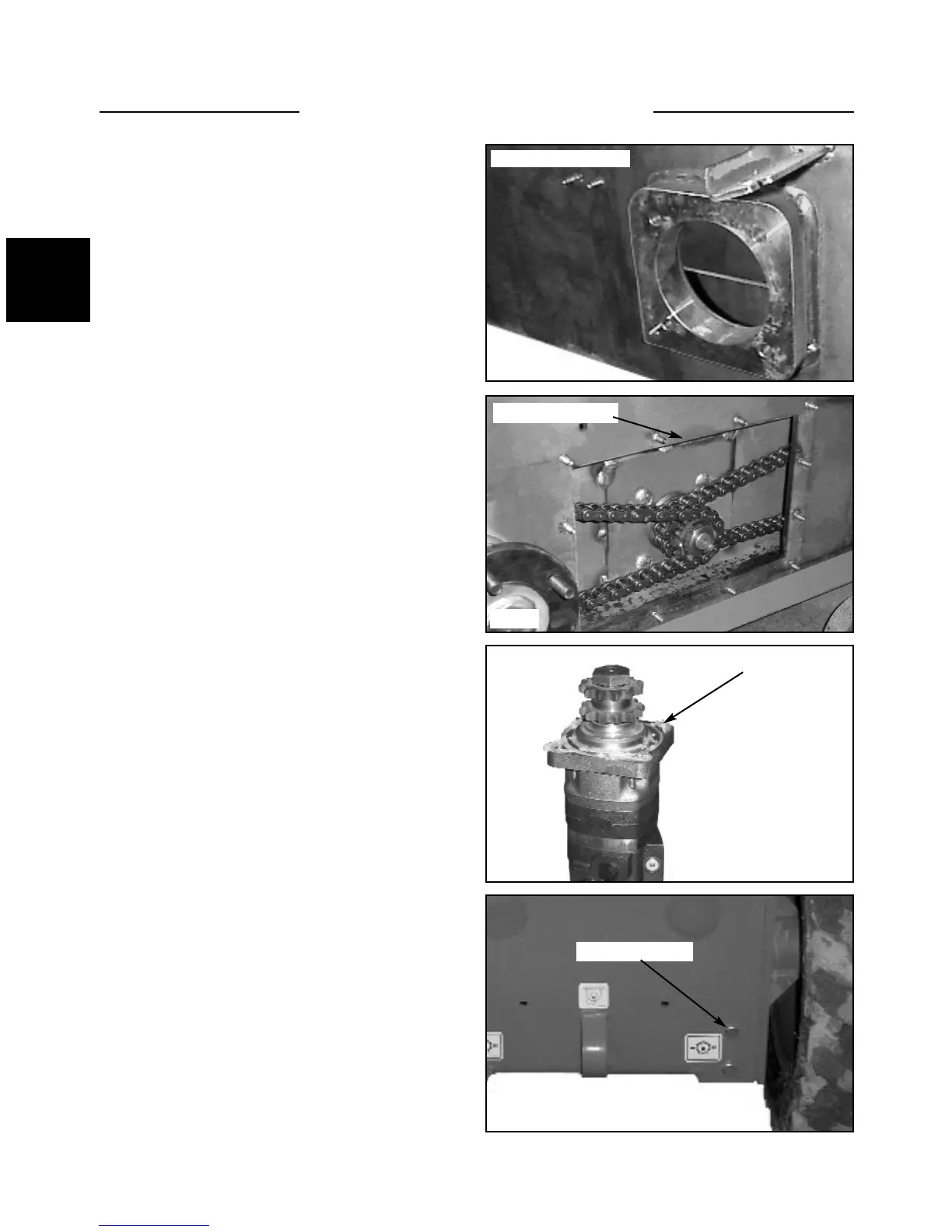

1 Clean the mounting areas thoroughly that need to be
sealed with silicone. (fig. C2079, C5074)
2 Apply a bead 1 / 4 of an inch thick around the drive
motor bearing retainer and around each mounting hole.
(fig. C5076)
3 Install the drive motor and sprocket assembly to the
final drive housing.
4 Install the 4 bolts, lockwashers and mounting nuts
and torque to 80 ft lbs (115 Nm.)
5 Install the 4 jam nuts. Torque the jam nuts to 40 ~ 60
ft lbs (54 ~ 81 Nm.)
C2078
Clean sealing area
C5074
C5076
C5014
Apply silicone
Upper check plug
Not exactly as shown
