3-15
3
General Information

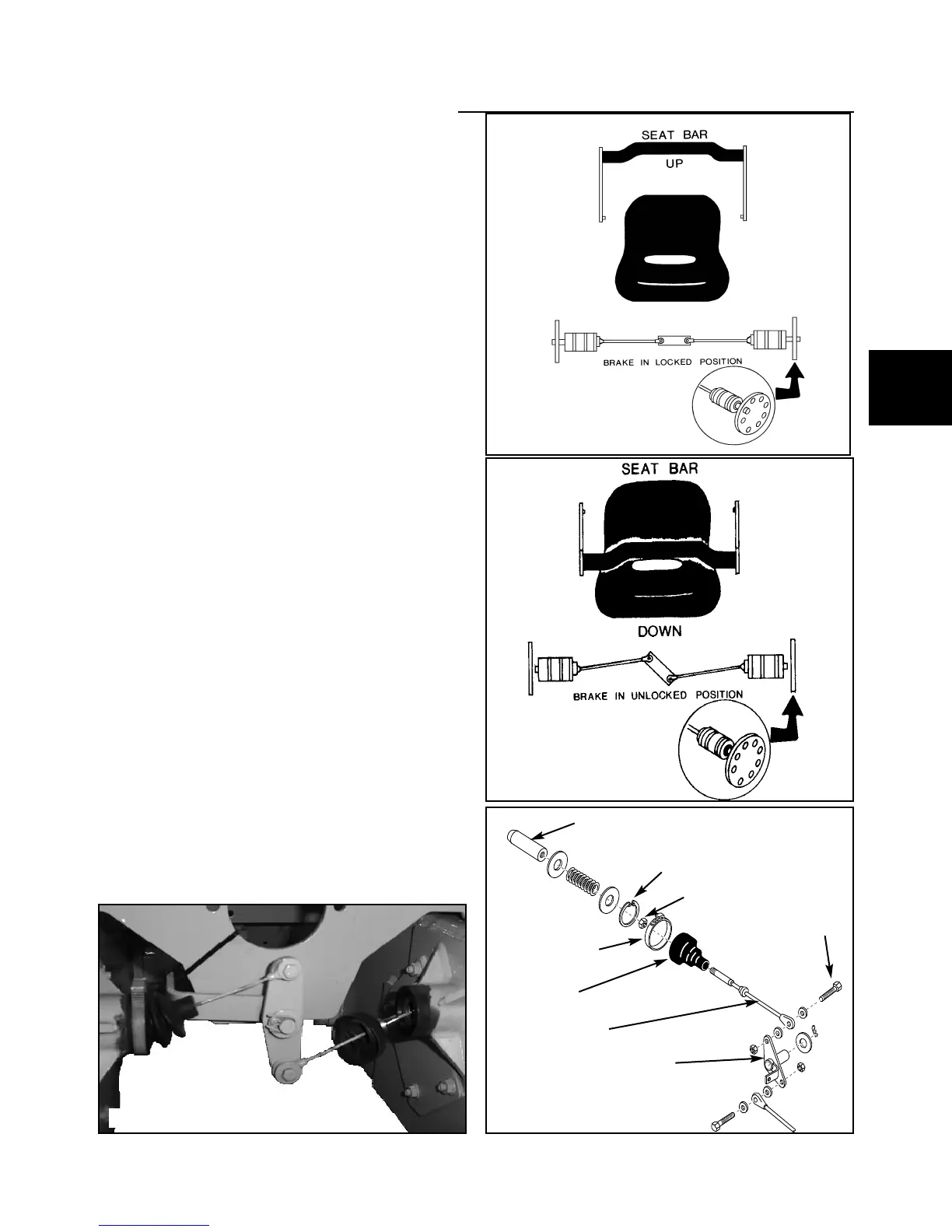

The parking brake is a mechanical system that uses spring
loaded pins engaging axle sprockets to prevent the wheels
from turning.
When the restraint bar is up, pins are engaged into holes
in the rear axle sprockets, this prevents the loader from
moving. (fig. C3258)
When the restraint bar is lowered, the pins are pulled free
of the sprockets, allowing the wheels to turn.(fig.3259)
PARKING BRAKE 3.6
C3259
C3258
Brake Pin Replacement
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Block the loader securely with all 4 wheels clear of
the ground.
3 Remove the wheels from the side of the loader the
pin is to be removed.
4 Remove the transmission inspection cover. Rotate
axles so that brake pins line up with a hole in the sprock-
et. This will make removal and re-assembly easier.
5 Remove the rear belly pan to gain access to the brake
pin bushings.
6 Remove the bolt that connects pin cable to brake pull
off assembly. (fig. C5623)
7 Remove ratchet clamp from brake boot. Roll boot
off of bushing. (fig. C5624)
8 Remove circlip from bushing mount, cable
and pin should pull out of transmission.
9 Loosen cable jam nut and remove pin from
cable.
C5623
Brake Pin
Circlip
Ratchet clamp
Brake boot
Jam nut
Brake pin cable
Brake pull off assembly
Bolt
C5624
To Next Page
