Thomas 85 - Hand Controls 4.3

4-14
4
Hand Operated Control Lever 85
Optional electric control handle
C3274
10
36
44
9
11
8
13
12
42
39
43
38
8
15
14
17
32
18
31
19
38
19
17
30
18
22
20
28
21
34
8
9
15
14
2
10
8
12
13
2
29
8
24
8
20
16
10
17
9
40
3
35
21
1
26
25
33
37
24
8
9
27
10
1
9
10
33
41
17
42
43
40
16
11
46
48
45
47
52
51
50
49
4
7
6
5

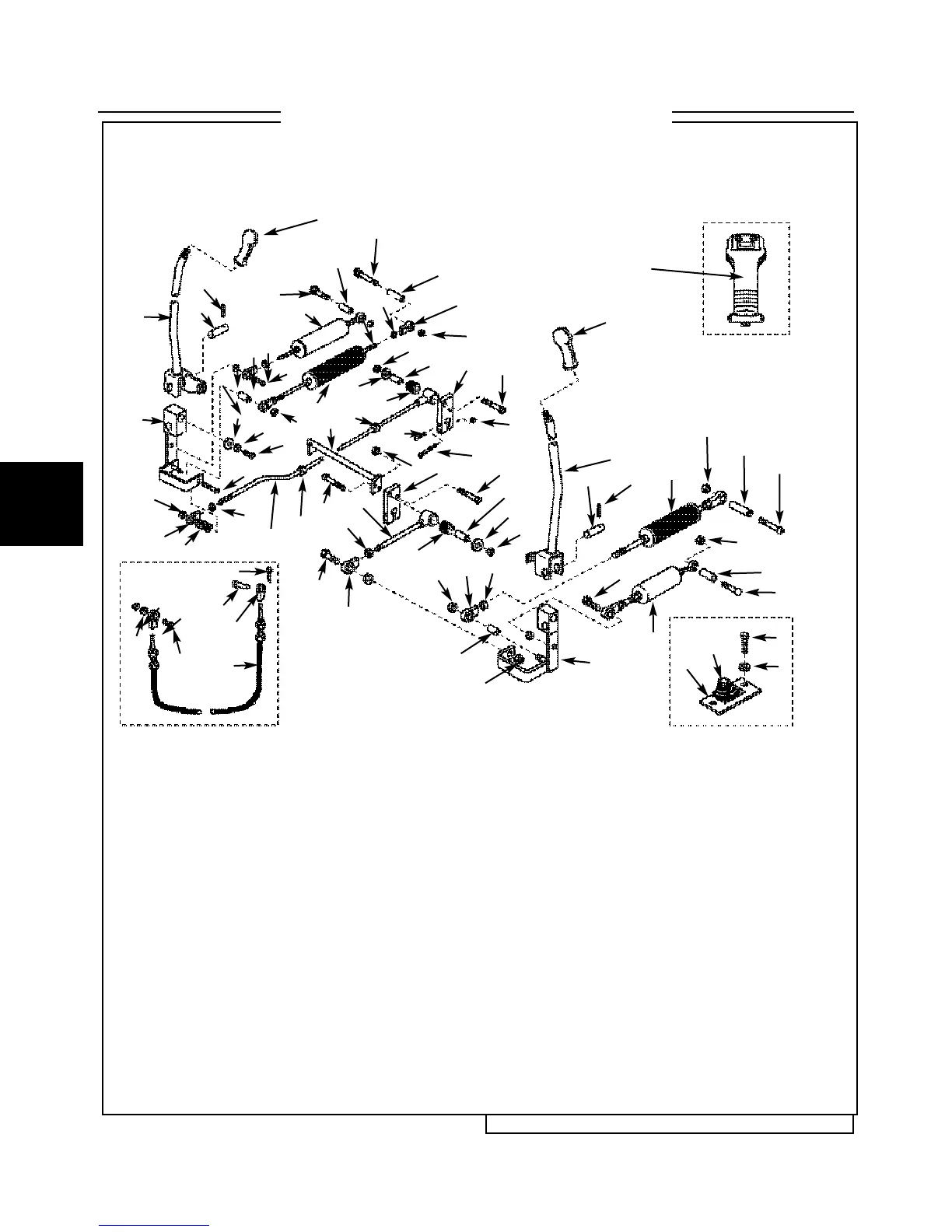

1. Control lever assembly 20. Isolator 39. Control lever
2. Handle 21. Collar 40. Spacer
3. Handle 22. Control rate limiter 41. Swivel block
4. Screw 23. Linkage 42. Control lever
5. Washer 24. Bolt 43. Pin
6. Boot 25. Washer 44. Swivel block
7. Lever boot cover 26. Bolt 45. Nut
8. Nut 27. Washer 46. Washer
9. Rod end 28. Pin 47. Rod end
10. Nut 29. Bar 48. Bolt
11. Hydroback 30. Bolt 49. Cotter pin
12. Bolt 31. Nut 50. Clevis pin
13. Spacer 32. Bolt 51. Bar
14. Bolt 33. Washer 52. Cable
15. Spacer 34. Pintle lever bar 53. Axle cover
16. Bolt 35. Bolt
17. Jam nut 36. Linkage
18. Washer 37. Bolt
19. Spacer 38. Shock absorber
HAND CONTROLS 4.3
