Fuel System
Fuel Filter:
The fuel filter is a spin on type and is located in the
engine compartment on the left side of the negine
mounted to a frame bracket.
Change the fuel filter every 400 operating hours.
To change the fuel filter: Park the loader on a level sur-
face, lower the boom arms, engage the parking brake
and shut off the engine.

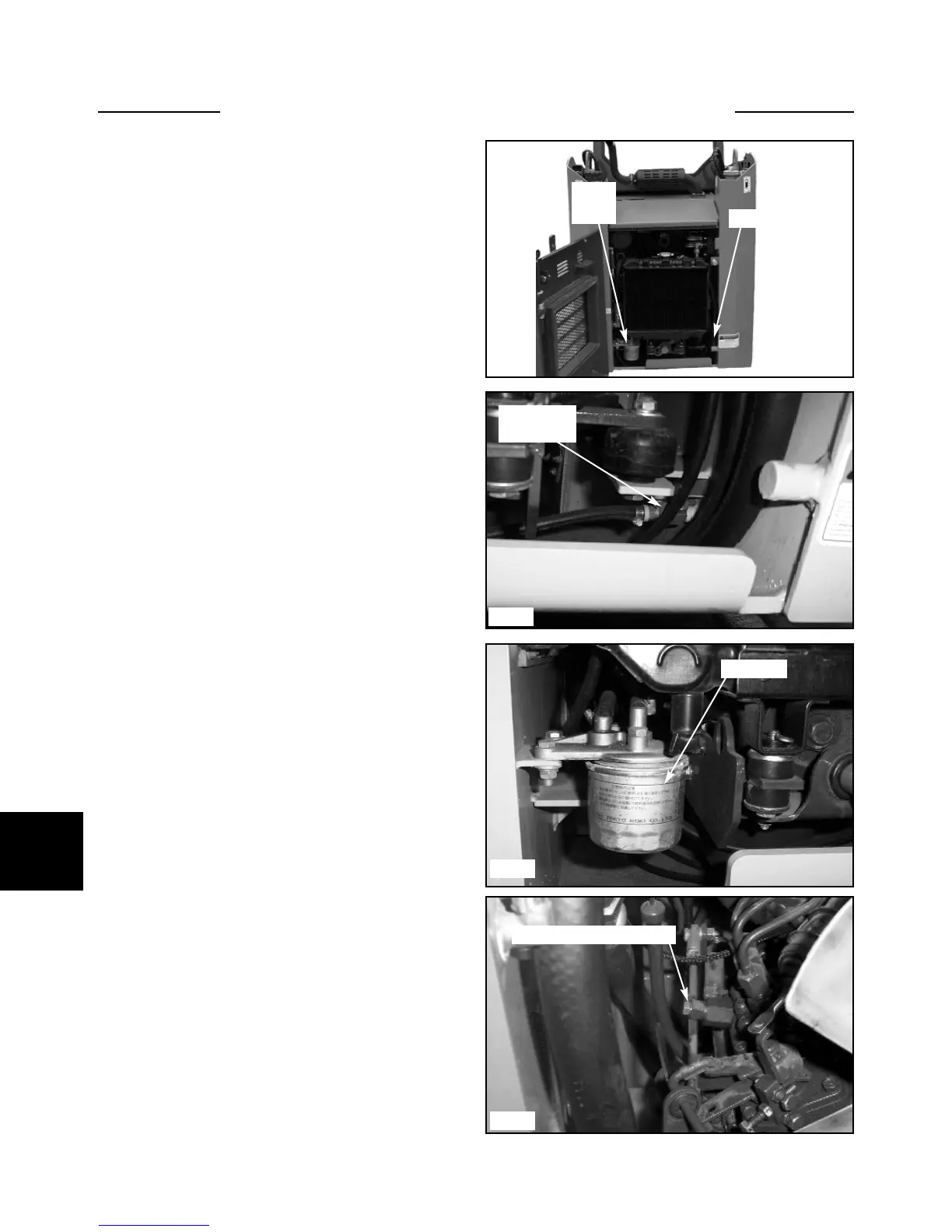

1 Access the engine compartment by opening the rear
door and lifting the engine cover. (fig. C5000)
2 Close the fuel line shut off petcock located on the
lower right hand side of the fuel tank. (fig. C5642) This
will prevent fuel loss due to siphoning.
3 Remove the fuel filter (fig. C5643) using a filter
wrench. Check to make sure the fuel filter O-ring seal
has not stuck to the filter adapter mount.
4 Lubricate the new fuel filter O-ring seal with light
oil. Tighten the filter to the adapter mount hand tight.
5 Open the fuel line shut off petcock.
7-4
7
6 Open the engine fuel line / air bleed petcock located
just to the left of the fuel injection pump. (fig. C5285)
Start the engine and allow to idle for 5 minutes. Close
the fuel line / air bleed petcock.
If the engine fails to continue operating, it may be neces-
sary to bleed the fuel system of air after changing the
fuel filter or running out of fuel. See Bleeding the Fuel
System, next page.
ENGINE MAINTENANCE 7.1
C5000
C5642
Fuel petcock
Fuel shut
off petcock
C5643
Fuel filter
C5285
Engine air bleed petcock
Fuel
filter
