4-11
4
FOOT PEDALS 4.2
Check cable ends, eyelets or rod ends, and mounting pins
for wear before removing the cable. Replace worn parts
when replacing new cables. Cable ends should be inspect-
ed every 150 hours of operation.
1 Raise the boom arms, engage the boom supports and
shut off the engine.
2 Remove the seat and hydrostatic shield.

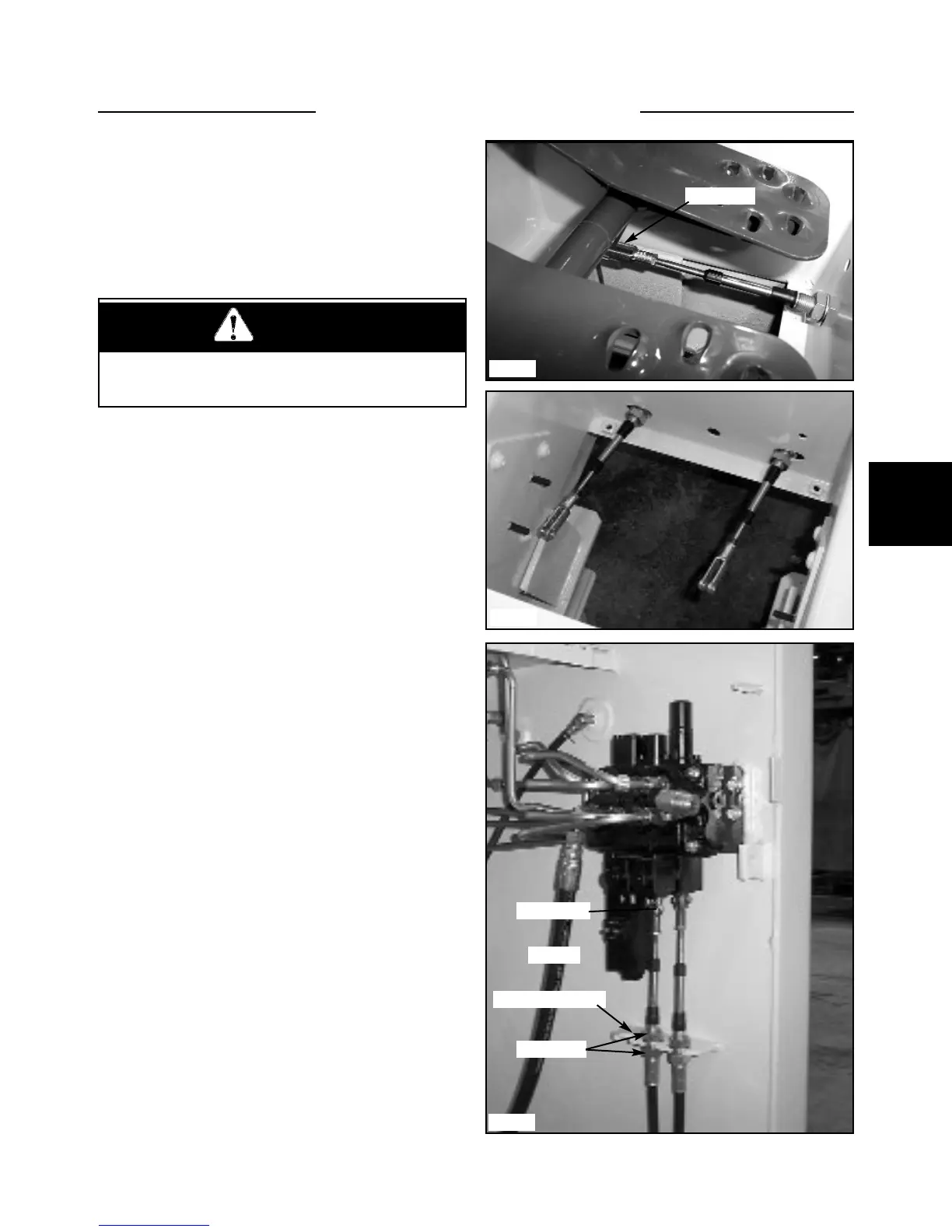

3 Remove the cotter pin and clevis pin connecting the
cable clevis to the foot pedal assy. (fig. C5098)
4 Remove the clevis, clevis jam nut, cable mount nut
and washer from the cable. (fig. C5086)
5. Access engine compartment and loosen the cable
mount nuts. (fig.C5129)
6. Remove the cotter pins from the valve end of the
cables and remove the clevis pins. (fig. C5129)
7 Remove the cable.
8 Remove the clevis and eyelet ends of the cable and
reuse them if still serviceable.
9 Install the new cable in the reverse order above.
There must be a minimum of 3/8’’ (6mm) of thread
engagement into the cable clevis and eyelet ends.
Note: After installation of a new cable, the foot pedal
angle will need to be verified and adjusted if necessary.
Refer to page 4-14 ~4-15.
Cable Replacement 85
Never work under the boom arms without the boom
supports engaged.
WARNING
C5098
Clevis pin
C5129
C5086
Jam nut
Bulk head mount
Cotter pins
Cable nuts
