3-3
3
LUBRICATION 3.2

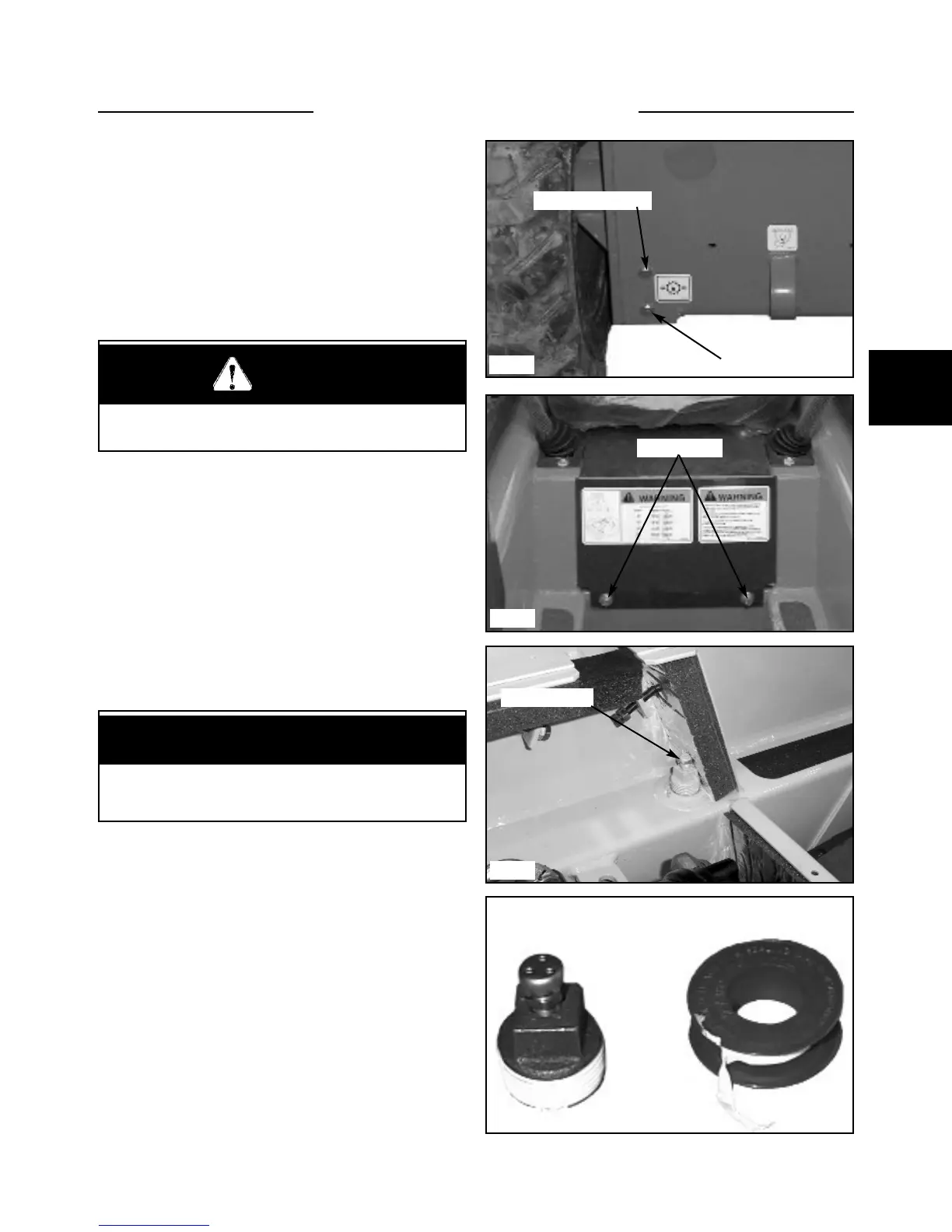

Checking The Oil Level
The loader has 2 independent final drive housings. When
checking the oil level ensure the loader is on a level sur-
face.
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Remove the top (upper) check plug located between
the 2 tires at the very front of the loader. (fig. C5014)
The oil level should be at the top of the check hole with a
little to trickle out.
Adding Oil
Oil should be added with the loader on a level surface.
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Remove the small inspection cover located to the rear
of the steering lever. (fig. C5017)
3 Remove the oil level check plug as outlined above.
(fig. C5014)
4 Remove the vented filler plug. (fig. C5077)
5 Add 10W30 API classification SJ oil until it begins
to flow out the upper check hole. Total final drive hous-
ing capacity per side is 1.9 gal (7 liters).
6 Replace all plugs.
WARNING
IMPORTANT
Check the final drives closely for damaged seals or
other leaks if the oil level is excessively low.
Never work under a raised boom arm without the
boom supports engaged and the engine shut off.
Changing The Oil
Ensure the loader is on a level surface before changing
the oil.
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Slide a drain pan under one of the lower drain plugs
located at the front of the loader, between the 2 front
wheels. (fig. C5014) Be prepared to contain 1.9 gal (7
liters) of oil per side.
3 Remove the drain plug. Allow the oil to drip com-
pletely out of the final drive housing. Replace the drain
plug . Dispose of the waste oil in an environmentally
friendly manner. If the oil is contaminated, remove the
side inspection cover to flush the housing.
4 Replenish the oil as outlined above in Adding Oil
with 10W30 API classification SJ oil.
C5014
C5017
C5077
Upper check plug
Lower drain plug
Apply thread sealant to plug
Oil filler plug
Remove seat
C2279
