4-13
4

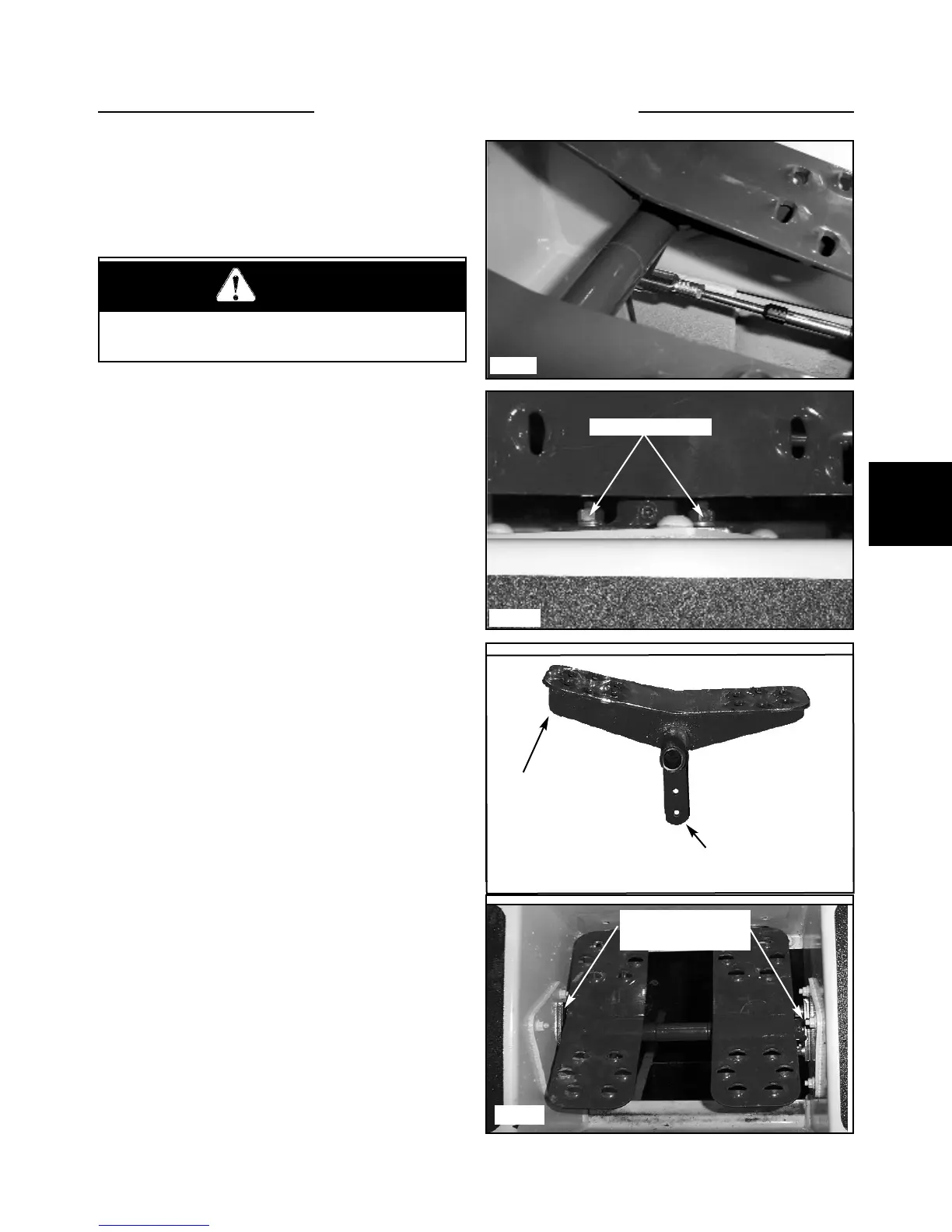

Foot Pedal Replacement 85
If the foot pedals or shaft need replacement due to dam-
age or wear:
1 Raise the boom arms, engage the boom supports and
shut off the engine.
2 Remove the seat and hydrostatic shield.
3 Remove the cables from the foot petals. (fig.C5098)
5 Remove the nuts retaining the foot petal shaft
mounts. (fig. C5080a)
6 Remove the complete pedal and shaft assembly
together. Note the orientation of the foot pedals.
7 Replace worn parts as required. The foot pedals are
equipped with bronze oillite bushings that are pressed
into place and machined to size afterward. They are not
serviceable separately. The complete pedal must be
replaced.
8 Reinstall pedals in the reverse order. Be sure to add
nylon washers as required to either end of the foot pedal
shaft to align the pedals with the linkages. Failure to align
the pedal and linkages properly will cause stiffness, bind-
ing and / or premature wear. Total pedal movement side
to side, end play, should not exceed 1 / 8”. When
installing foot pedals, note the proper orientation of the
pedals. (fig. C5591, fig. C5582)
WARNING
Never work under the boom arms without the boom
supports engaged.
FOOT PEDALS 4.2
C5098
C5080a
Remove shaft bolt
C5591
C5582
Front of pedal
Connect cable clevis
to bottom hole
Pedals are offset to
outside of loader
