2-27
2

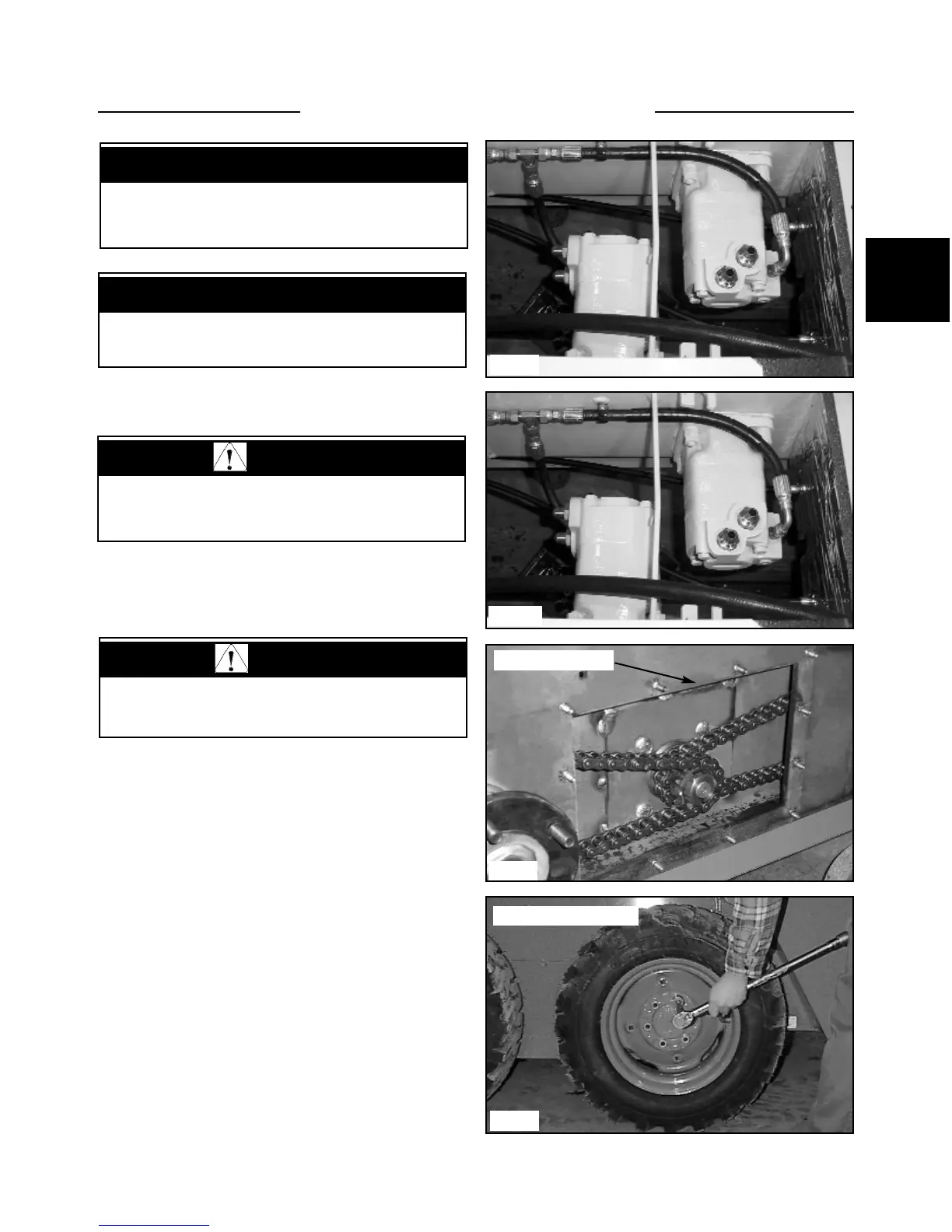

7 Install the adapter fittings to the drive motor.
8 Install the drain line to the drive motor. (fig. C5114)
9 Install the high pressure drive hoses. (fig. C5114a)
10 Clean the final drive housing and inspection cover
thoroughly before sealing the transmission. Apply the
gasket Seal to the transmission. (fig. C5074)
11 Install the inspection cover. When installing the nuts,
do not over tighten. The mounting torque should not
exceed 15 lbs ft. (15 Nm)
12 Add oil to the final drive housing unit it trickles out
the upper check plug hole. This will require approximate-
ly 1.9 gal (7 litres) of 10w30 API SJ oil. (fig. C1888)
13 Start the engine and check for hydraulic leaks. Do
not use your hands to trace hydraulic leaks. Shut off the
engine and inspect each fitting for proper torque.
14 Install the wheels and torque the nuts at 100 to 110 ft
lbs. (136 to 149 Nm.)
15 Install shields and seat, let loader down to ground
and test drive to check performance.
DRIVE MOTOR 2.12
When making repairs to the hydraulic system, keep
the work area and parts clean. Use caps and plugs
on all open line and ports.
IMPORTANT
Inspect fitting o-rings and flares for marks or dam-
age. Replace if necessary.
IMPORTANT
WARNING
Use caution when dealing with hydraulic fluid under
pressure. Escaping fluid under pressure can pene-
trate the skin and cause serious injury.
WARNING
To prevent personal injury never make repairs to the
hydraulic system while the engine is operating.
C5114
C5114a
C1658
C5074
Clean sealing area
Torque the wheel nuts
