3-12
3

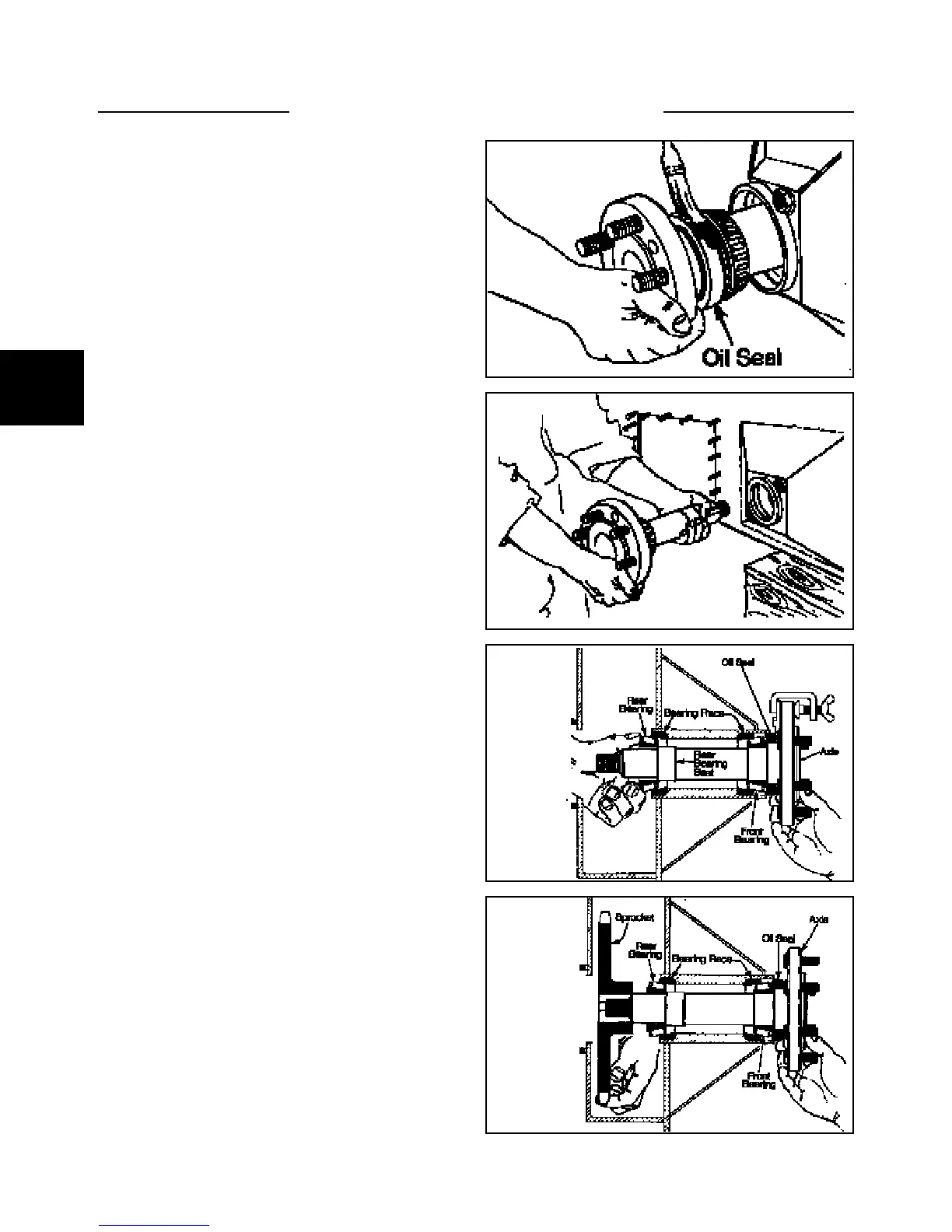

AXLE ASSEMBLY 3.5
9 Place the axle sprocket into the final drive housing
with the hub facing toward the bearing race area. (out-
side)
10 Apply gasket sealant to the outer edge of the bearing
housing. (fig. C212) Take care, make sure none gets on
the bearing surface.
11 Guide the axle into the final drive housing. (fig.
C220)
12 Start the axle into the drive sprocket. (fig C3814)
11 Place the rear (inside) axle bearing onto the axle.
(fig C225)
C226
C225
C220
C212
