5
5-13
BATTERY 5.6
Removal and Inspection

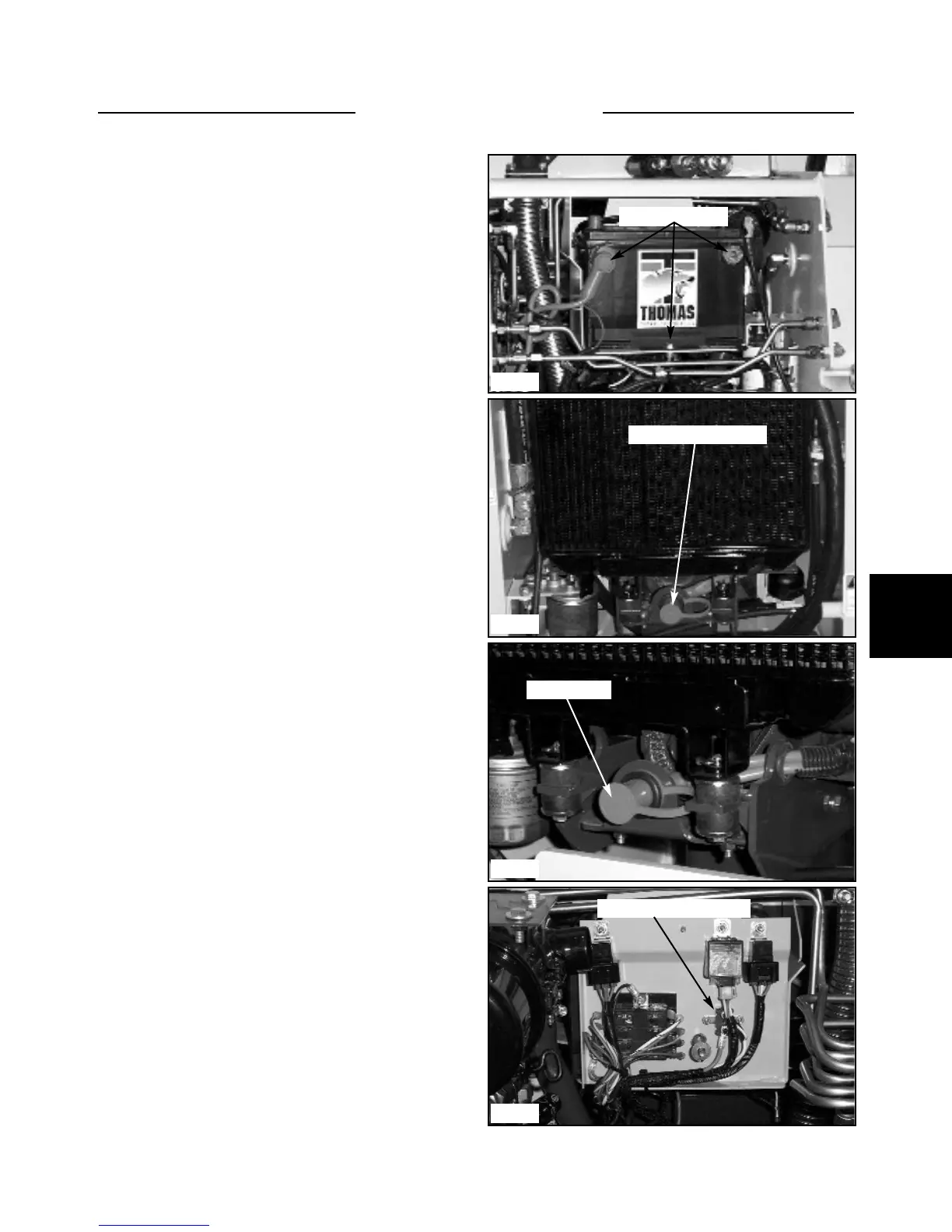

9 Inspect the battery case for cracks that may allow
electrolyte to leak into the environment.
Inspect the battery on a regular basis for damage such as
cracks or a broken case.
Inspect the battery cables for tightness and corrosion.
Remove any corrosion and coat the terminals with a
dielectric grease.
Check the battery hold downs to be sure they are properly
retaining the battery in the compartment. (fig. C5094)
Boosting
Circuit Breaker
In the event the loader has failed to start and requires
boosting, a boosting lug or post is located in the engine
compartment. (fig. C5095)
1 Open the rear door and raise the engine compartment
cover.
2 Remove the red rubber protective cover from the
boosting lug. (fig. C5096)
3 The ignition must be in the off position.
4 Connect the positive cable from the 12 volt boosting
supply to the boosting lug on the loader, ensure that it is
not grounding out on any matal parts.
5 Connect the negative ground cable to the boosting
supply first, and then to a clean ground on the loader
engine. Keep the cables away from any moving parts.
6 Start the engine.
7 Remove the negative ground cable from the engine
first and then the boosting supply. Remove the positive
cable from the boosting lug.
The circuit breaker is located in the engine compartment,
mounted on the fuse, circuit breaker panel.(fig. C5102)
To test the circuit breaker:
1 Disconnect the battery grounds before testing or
replacing the circuit breaker.
2 Remove the knob holding the cover on the fuse
panel, remove the cover.
3 Remove the 2 nuts retaining the wires to the circuit
breaker.
4 Using an ohmmeter, connect a lead to each of the
stud terminals and take a reading.
Low resistance is normal.
High resistance means the circuit breaker is defective and
must be replaced.
C5102
C5096
C5095
C5094
Circuit breaker location
Boosting lug
Boosting lug location
Check and clean
