8
8-5

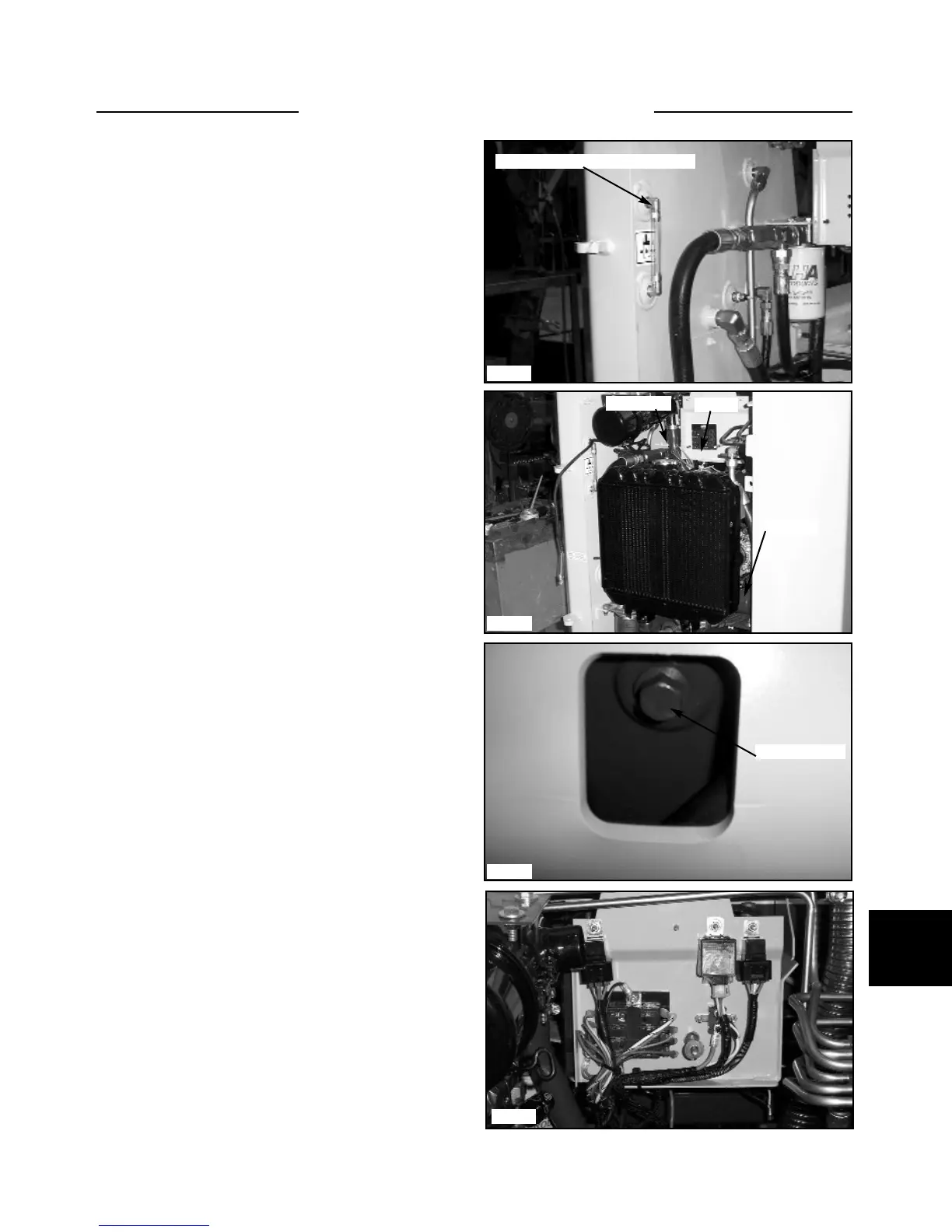

8.1.2 Service Access
1. 2G Oil Reservoir
The oil reservoir is located at the rear, left side of the
loader. It is part of the mainframe structure. The reservoir
level is accessed by opening the rear door and visually
checking the sight gauge. (C5068). The reservoir fill is
located at the top of the reservoir. The hydraulic filter is
also located here.
1.2H Engine
The engine is accessed by opening th rear door and rais-
ing the engine compartment cover. (C5177). The oil level
dipstick is located on the left of the engine. Oil fill is
located on top of the engine rocker arm cover. The oil
drain plug is located on the bottom of engine compart-
ment. (C5178) The oil filter and fuel filter is located to
the lower right of the engine assembly. The fuel filter is
located to the lower left of the engine.
1.2E Fuse Panel
The fuse panel is located in the engine compartment.
Open the rear door and raise the engine compartment
cover. (Open the panel by removing the retaining bolt or
nut.) A decal is located on the outside of the panel show-
ing proper fuse size and use.
MAINTENANCE 8.1
C5068
C5177
C5178
C5077
Hydraulic reservoir sight gauge
Oil fill
Oil check
Oil filter
Oil drain plug
