1-17
Disassembly Repair 85 (cont’d)

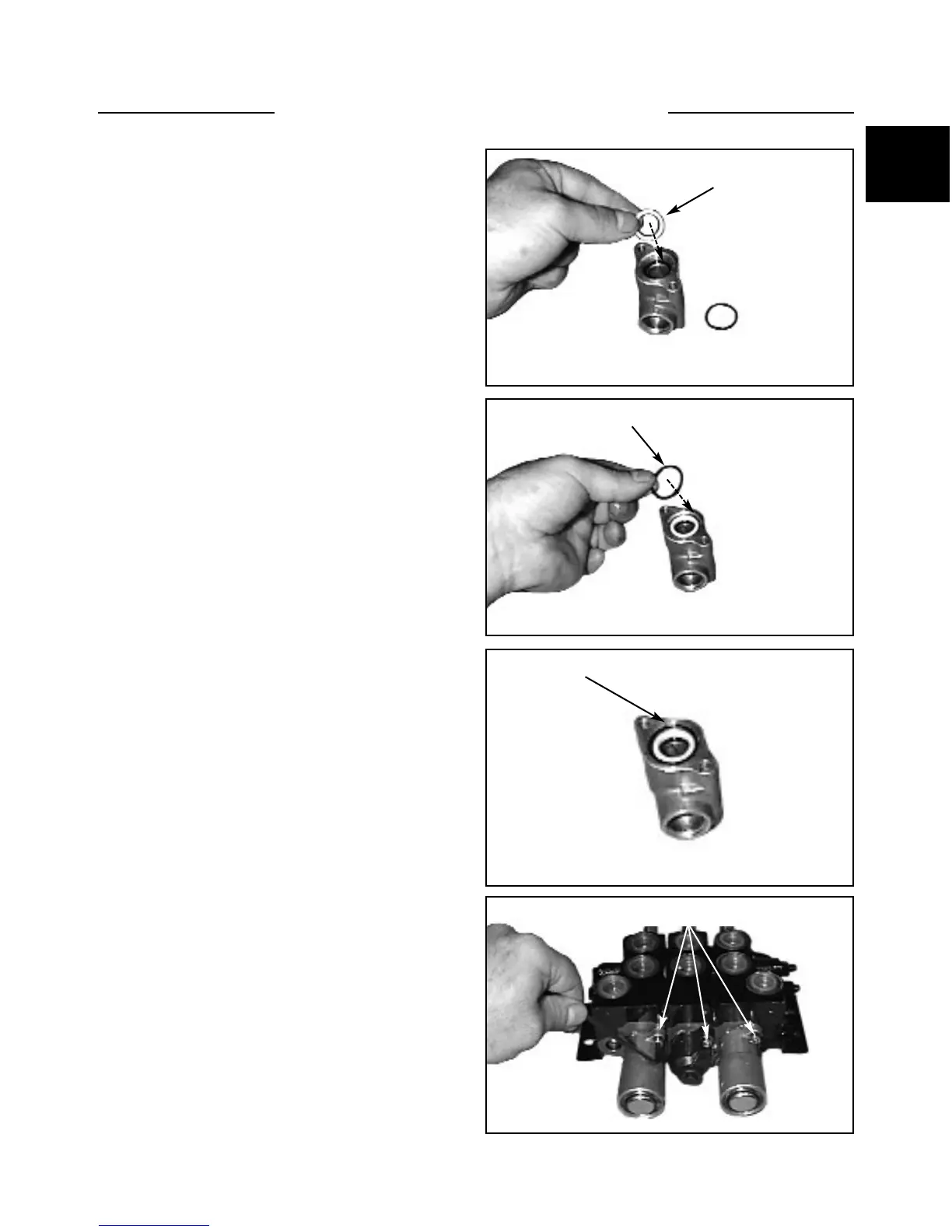

9. Lubricate the spool O-ring shim with system oil and
install over spool seal. (fig. C2376).
11. Figure C2378 shows the completely resealed lock
adapter assembly ready to be installed to the control valve
assembly.
10. Lubricate the section O-ring seal with system oil and
install to the lock adapter assembly. (fig. C2377).
CONTROL VALVE 1.3
12. Remove the screws retaining the spring return caps to
the control valve assembly. (fig. C2379). Remove the
spring return assemblies.
C2376
C2377
C2378
C2379
Remove screws
Lock adapter assembly
Section O-ring seal
Spool O-ring shim
