HYDROSTATIC CIRCUIT 2.1

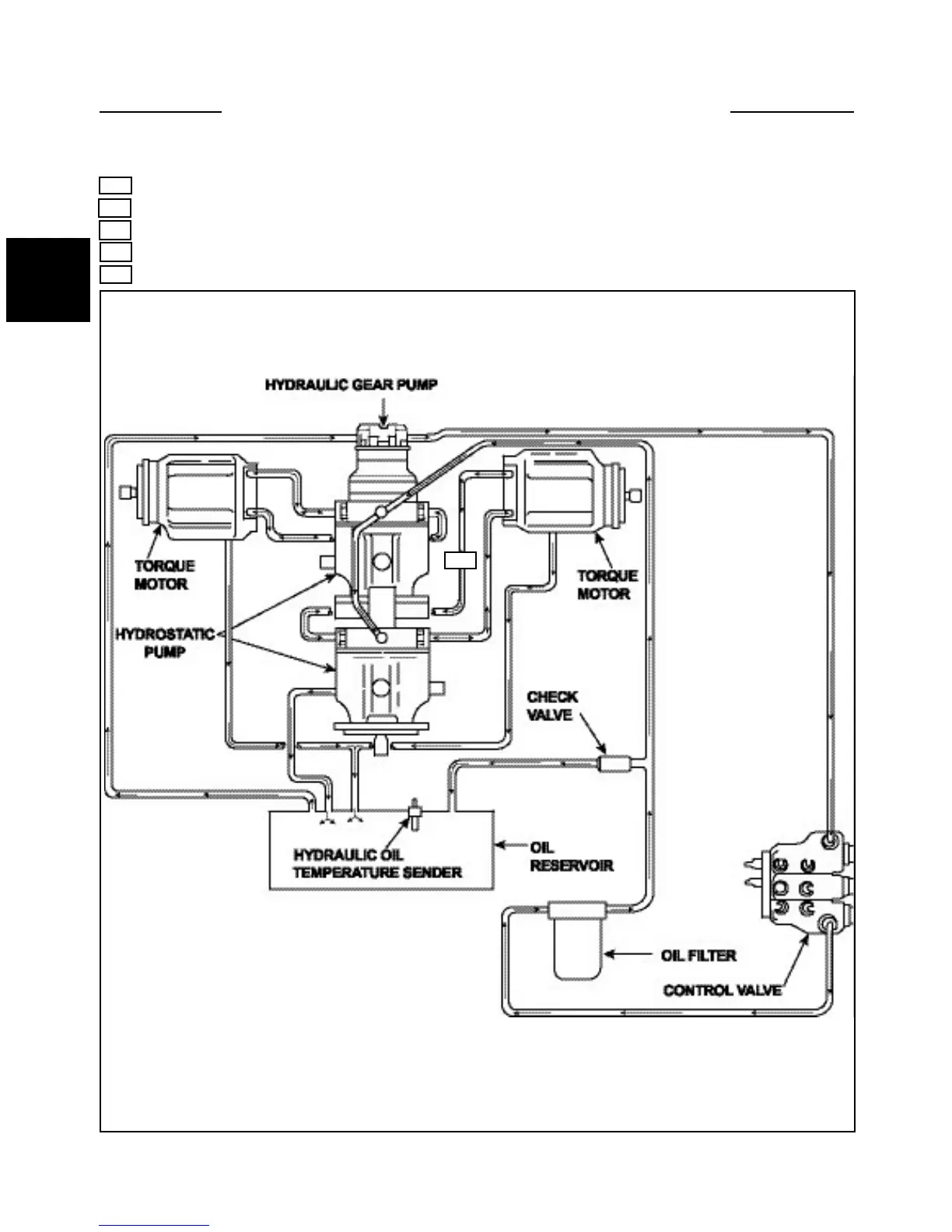

Hydrostatic Circuit and System Pressure Schematic
High Pressure Relieved at 5000 psi (345 bar)
Aux. Press. Relief Set at 2400 psi (165.5 bar)
System Charge Pressure 200 psi Minimum (13.8 bar)
Return Pressure
Suction Line (Vacuum) 4 - 6 Hg @ 160ºF (71ºC)
A
B
C
D
E
C5275
