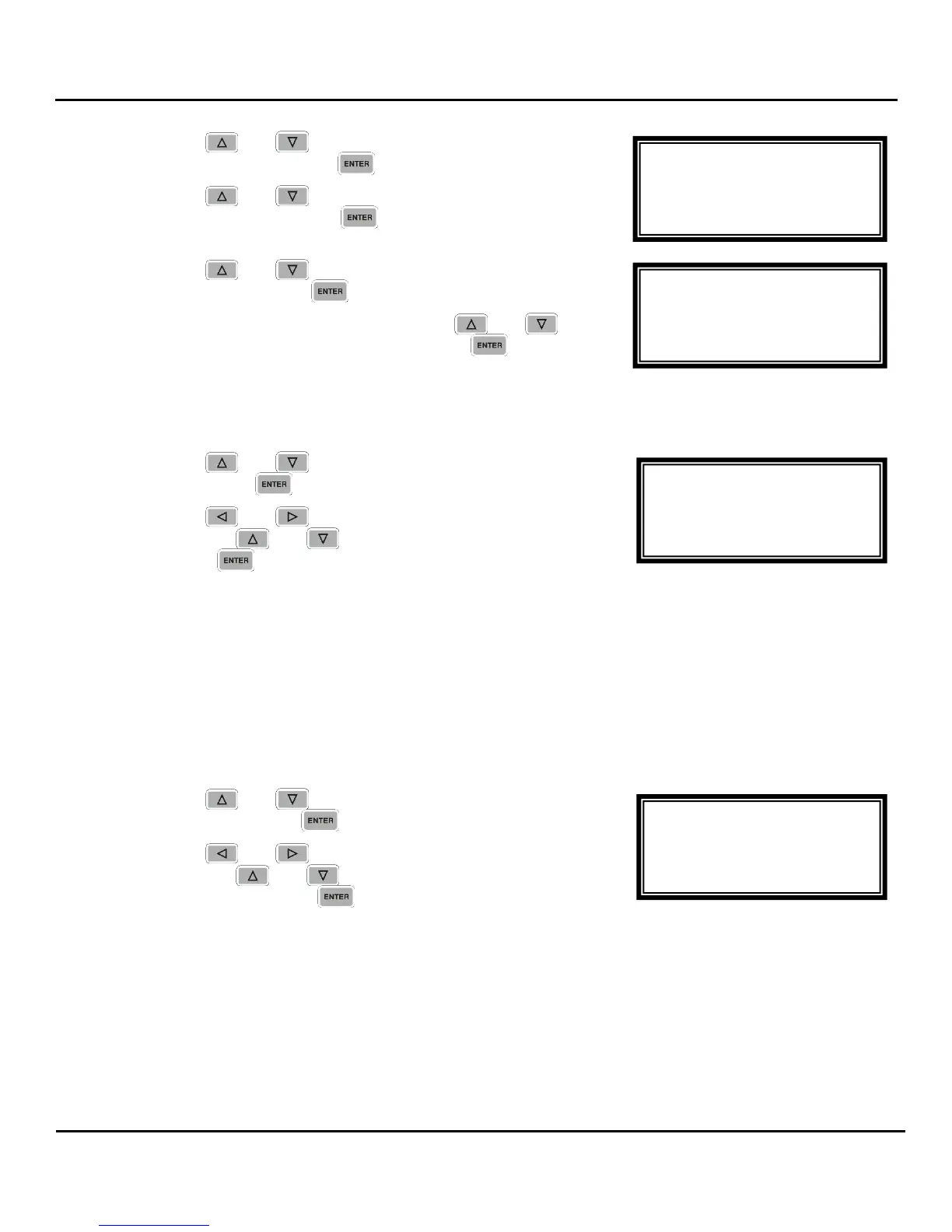

Receiver Descrambler - User Manual (release 7.3.1)
2. Use the and buttons to move the cursor to
“Receive:” then press the button.
3. Use the and buttons to “Enable” or “Disable”
Receive 1, then press the button to save the
selection.
4. Use the and buttons to move the cursor to “Phys
Conn:” then press the button.
5. Choose the physical connector using the and
buttons (“Port 1” or “Port 2”) then press the button.
IP
1. Use the and buttons to move the cursor to “IP:”
then press the button.
2. Use the and buttons to select the column to edit
and use the and buttons to change the IP, then
press the button to save the selection.
Notes:- A Unicast or Multicast IP address may be chosen.
Unicast: X.X.X.X – 223.255.255.255
Multicast: 224.0.0.0 – 239.255.255.255
Suggested Multicast Range: 239.192.X.X.
- In case of unicast reception, the unit takes into account only the port number and not the source
IP address.
Destination Port
1. Use the and buttons to move the cursor to “Dest
Port:” then press the button.
2. Use the and buttons to select the column to edit
and use the and buttons to change the port (0 –
65536), then press the button to save the selection.
MPEG/IP 1-4 1 ←→
Ip:239.192.1.50
►Dest Port:01050
FEC:Disable
MPEG/IP 1-4 1 ←→
►Ip:239.192.001.050
Dest Port:01050
FEC:Disable
MPEG/IP 1-4 1
Receive:Enable
►Phys Conn:Port 1
Ip:239.192.0.1
MPEG/IP 1-4 1
►Receive:Enable
Phys Conn:Port 1
Ip:239.192.0.1
