1.9 Connecting components
ITC500 / page 22
1.9.2 Pin assignment of the TEC output jack

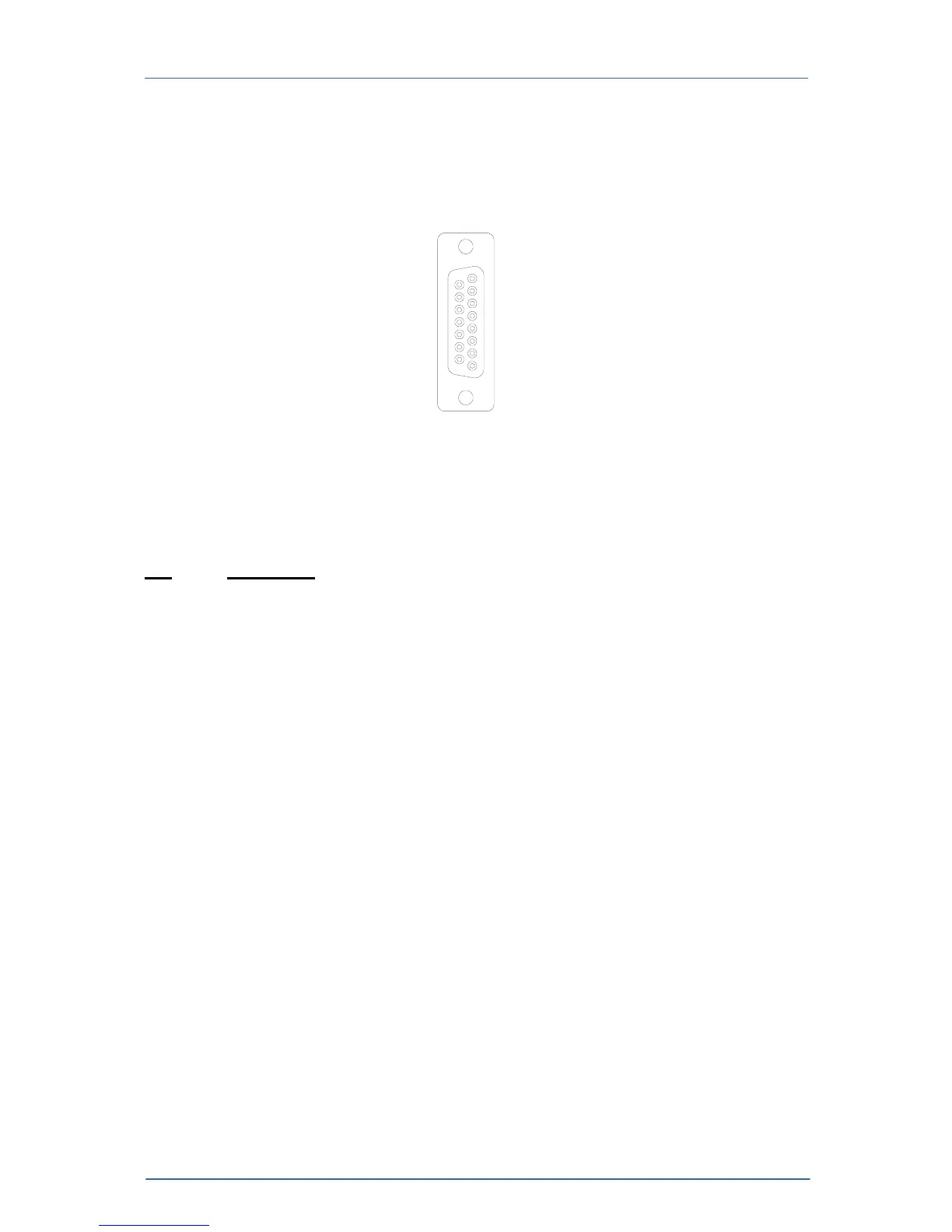

Figure 4 Pinning of the TEC connector
Pin Connector
TEC element
5,6,7 TEC element (+)
13,14,15 TEC element (-), ground
2 Voltage detector TEC element (+)
9 Voltage detector TEC element (-)
Status indicator
1 Status-LED (+)
8 Status-LED (-), ground
Temperature sensor
3 Thermistor (-), ground
4 Thermistor (+)
10 AD590/592 (-)
11 AD590/592 (+)
12 Supply voltage for Thorlabs-mounts
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
