FFS2000 Series Chapter 5: Software
Page 18 TTN047338-D02
5.2.1. File

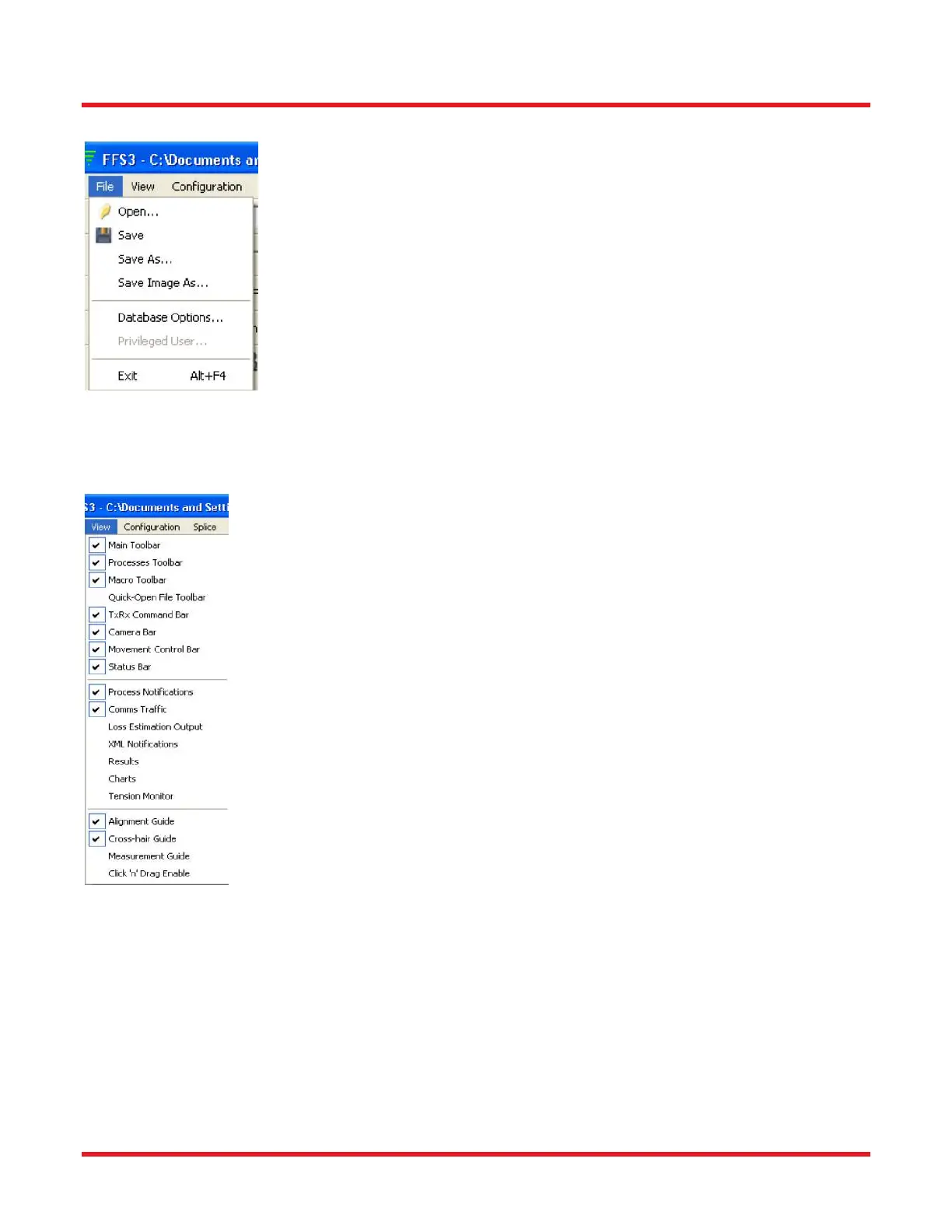

Figure 15 File Menu
Open: Open a new splice data file.
Save: Save the current splice parameters to the current splice data file.
Save As: Save the current splice parameters to a new splice data file.
Database Options: Enables, Disables, or Resets the Database. The database
has preconfigured settings that should not be altered.
Privileged User: Inactive at this time.
Exit: Close the GUI.
5.2.2. View
Figure 16 View Menu
Allows display control of the various toolbars, data windows, and guides
associated with the GUI (like crosshair and alignment guides).
The “Processes Toolbar”, “Macro Toolbar” and “Quick-Open File Toolbar” can
only be activated if functions are assigned to them; this is setup under the
Configuration menu.
5.2.3. Configuration
The Configuration Menu permits the user to edit the toolbars and machine parameters.
