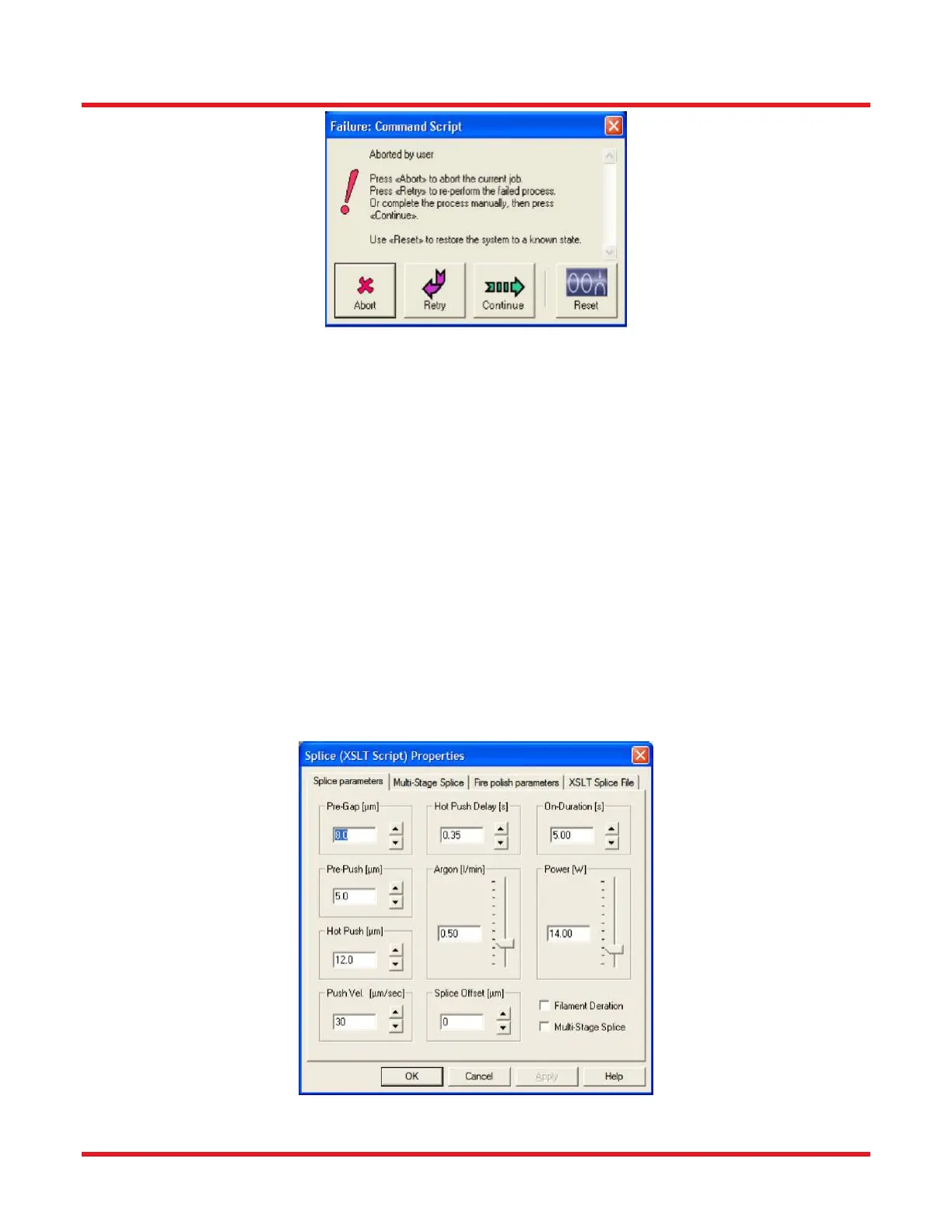

Figure 27 Failure Process Window
If you press reset then the reset macro will run. On completion you can choose to “abort or retry or
continue”.
5.14. Splice Properties
To customize the splice parameters, go to Splice → Splice Parameters.
Pre-Gap: Defines the target distance between the end faces of the fibers prior to running the Splice
Process.
Hot Push Delay: The time between when the filament has reached full power and when the fibers are
pushed together.
On-Duration: Defines how long the filament is at full power in addition to the hot push delay.
Pre-Push: Pushes the right fiber inwards prior to turning on the filament.
Argon: Defines the amount of argon flow during the splice.
Power: Defines the amount of power applied to the filament.
Hot Push: Defines the distance that the right fiber is pushed inwards after the Hot Push Delay.
Push Velocity: Defines how fast the right fiber is pushed in.
Splice Offset: Adds an offset value to the View to Splice distance, such that the filament is not centered
around the gap.
Figure 28 Splice Properties
