FFS2000 Series Chapter 9: Proof Test (Item #s FFS2000PT and FFS2000WS)
Page 58 TTN047338-D02

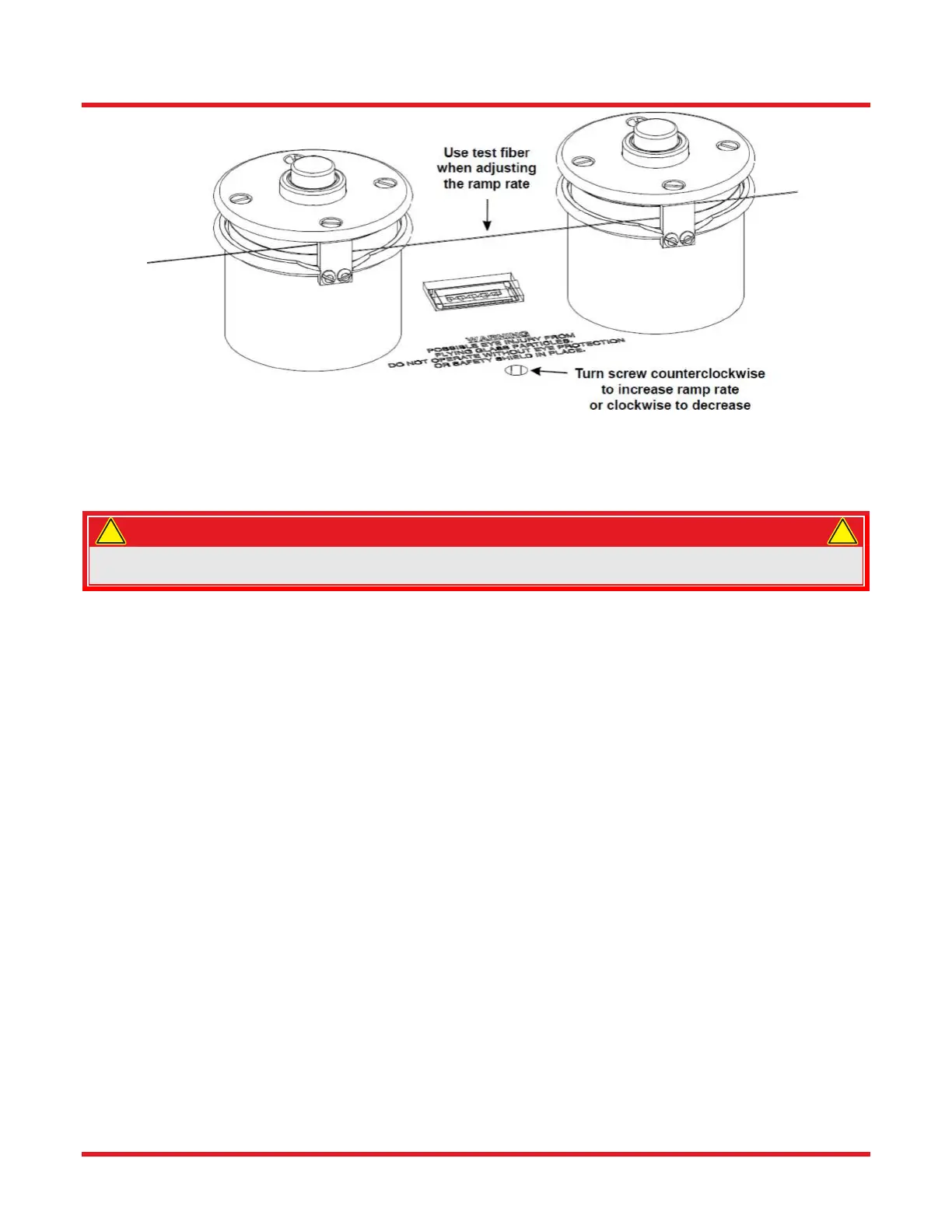

Figure 50 Schematic of Proof Test Load Ramp-Rate Adjustment
9.2.3. Proof Testing
CAUTION
Always use the safety shield or wear safety glasses when proof or tension testing fiber. The fiber
under test can shatter and send glass particles flying.
The proof test is used to determine whether a fiber or fusion splice meets a minimum strength requirement.
During the proof test, the peak load is applied to the fiber and held for the desired cycle time.
The procedures for proof testing are as follows:
1. Ensure the proof test presets are as desired.
2. Adjust the proof test cycle if necessary. (Refer to Section 9.2.2 for instructions).
3. Load the fiber to be tested. (Refer to Section 9.2.1 for instructions).
4. Make sure the safety shield is in place or that you are wearing safety glasses. (Note: Anyone observing
the test should also take precautions against flying glass particles.)
5. Initiate the proof test by selecting Test button on the splicer.
6. The proof test process can be monitored by watching the bar graph that is displayed in front of the main
display area. The maximum tension applied to the fiber will be displayed on the bar graph. If the fiber
breaks prior to reaching the proof test level, the breaking strength will be displayed.
!
!
