THORLABS Vytran FFS2000 Series User Manual

FFS2000 Series Chapter 11: Maintenance
Page 78 TTN047338-D02

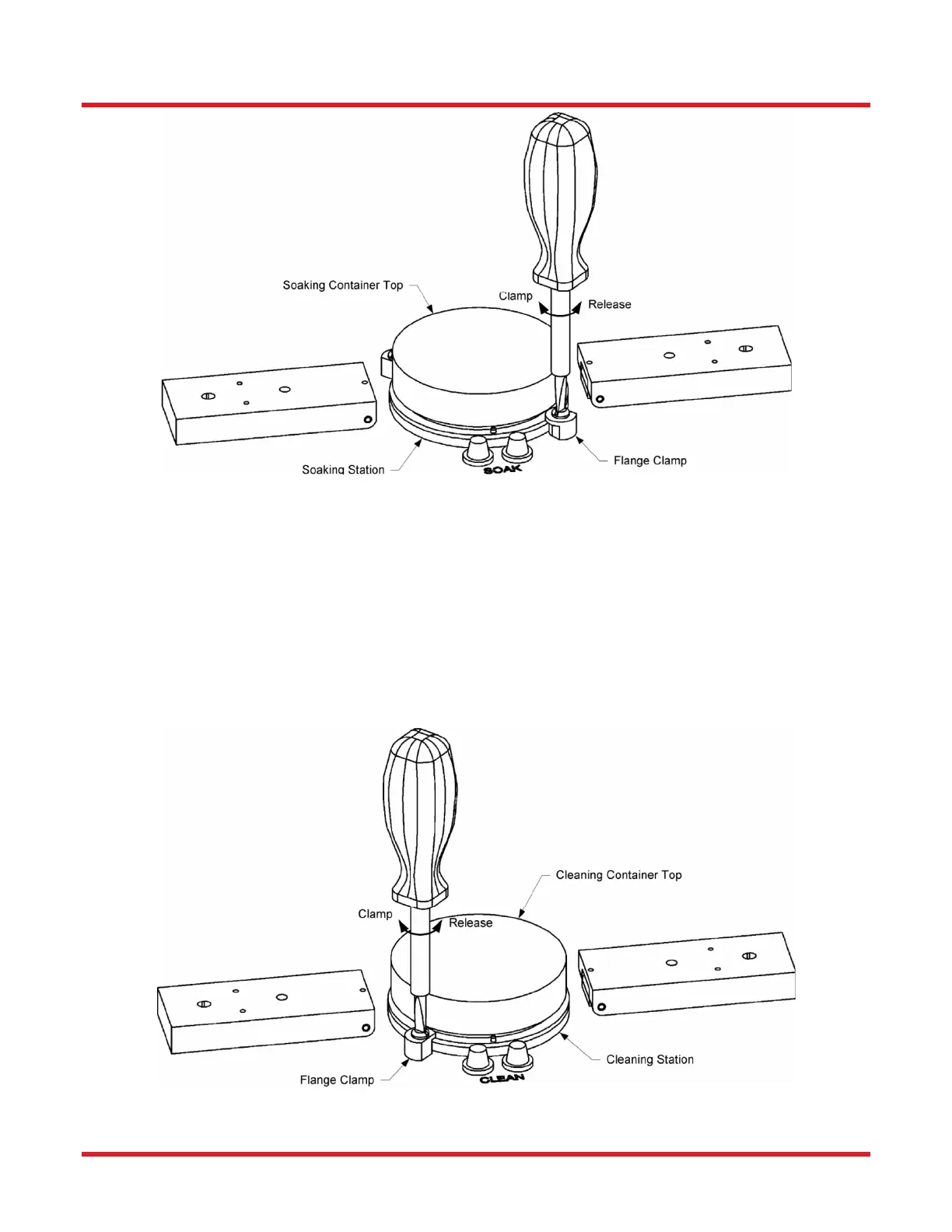

Figure 68 Replace Soaking Solvent
Cleaning Station:
The cleaning container is wired into the unit, and must be removed carefully. Tightly screw on the top of the
cleaning container. While pushing down on the container top, unscrew the flange clamps ½ turn to release the
container (Figure 69). Gently lift the container out and detach the two wires at the connector. The transducer
attached to the bottom of the container is fragile and should be handled gently.
Properly dispose of the old fluid and clean the container. Replace with clean fluids and screw the top on tightly.
Re-attach the connector on the cleaning container. Carefully place the container in position and turn the flange
clamps ½ turn to secure the container.
Figure 69 Replace Cleaning Solvent
