Toa A-9120DHM2 - Connections; Control I;O Terminal Connections

107
14.1. Control I/O Terminal Connections
[Remote volume control terminals 1, 2 (REMT VOL 1, REMT VOL 2)]
Volume of the input or output channels can be remotely adjusted by connecting a variable resistor or variable DC
power supply unit. (The REMT VOL 1 terminal is factory-preset to output 1, and the REMT VOL 2 to output 2.)
Connect a 10 kΩ (linear taper) variable resistor or input the DC voltage of 0 to +10 V as shown below.
The larger the variable resistor resistance, the larger the volume is, and the smaller its resistance, the smaller
the volume is.
Connecting the ZM-9001 Zone Manager adds 6 control inputs and allows the equipped 6 control buttons to
perform the functions assigned for input's or output's channel volume up/down, or Scene memory recall.
Connecting the ZM-9002 Zone Manager adds 1 volume control and 4 control inputs. Volume of the input or
output channels can be remotely adjusted with the volume control, and the 4 control buttons can be assigned
the same functions as those of the ZM-9001.
Note
To avoid interference due to noise, use shielded cables.
[Control input terminals 1 – 4 (IN 1 – 4)]
Connect switch contacts, etc. to these terminals.
Open voltage is 3.3 V, and the short-circuit current is 1 mA or less.
[Control output terminals 1 – 4 (OUT 1 – 4)]
Use these terminals to activate LEDs, relays, and other external equipment.
Maximum operating current is 50 mA, and the maximum applicable voltage is +27 V.
E
E
4
4
3
3
1
2
2
1
VOL2
REMT
VOL1
REMT
OUT
IN
I/O
CTRL
E
IN
E
IN

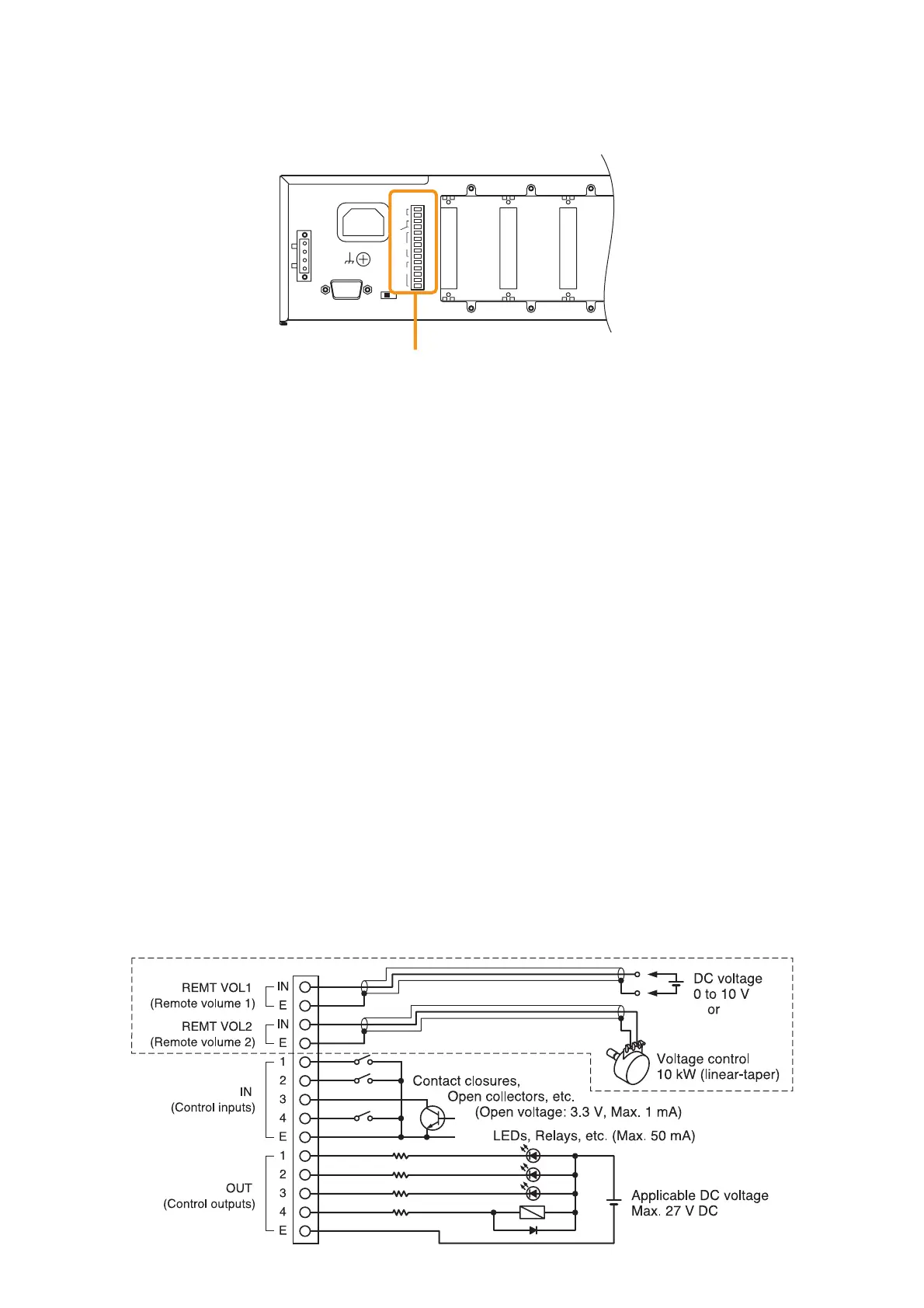

Control-I/O connection terminal
14. CONNECTIONS
14.1.1. When a variable resistor or variable DC power supply unit is connected
