Toa A-9120DHM2 - Zm-9014

128
17.8. ZM-9014

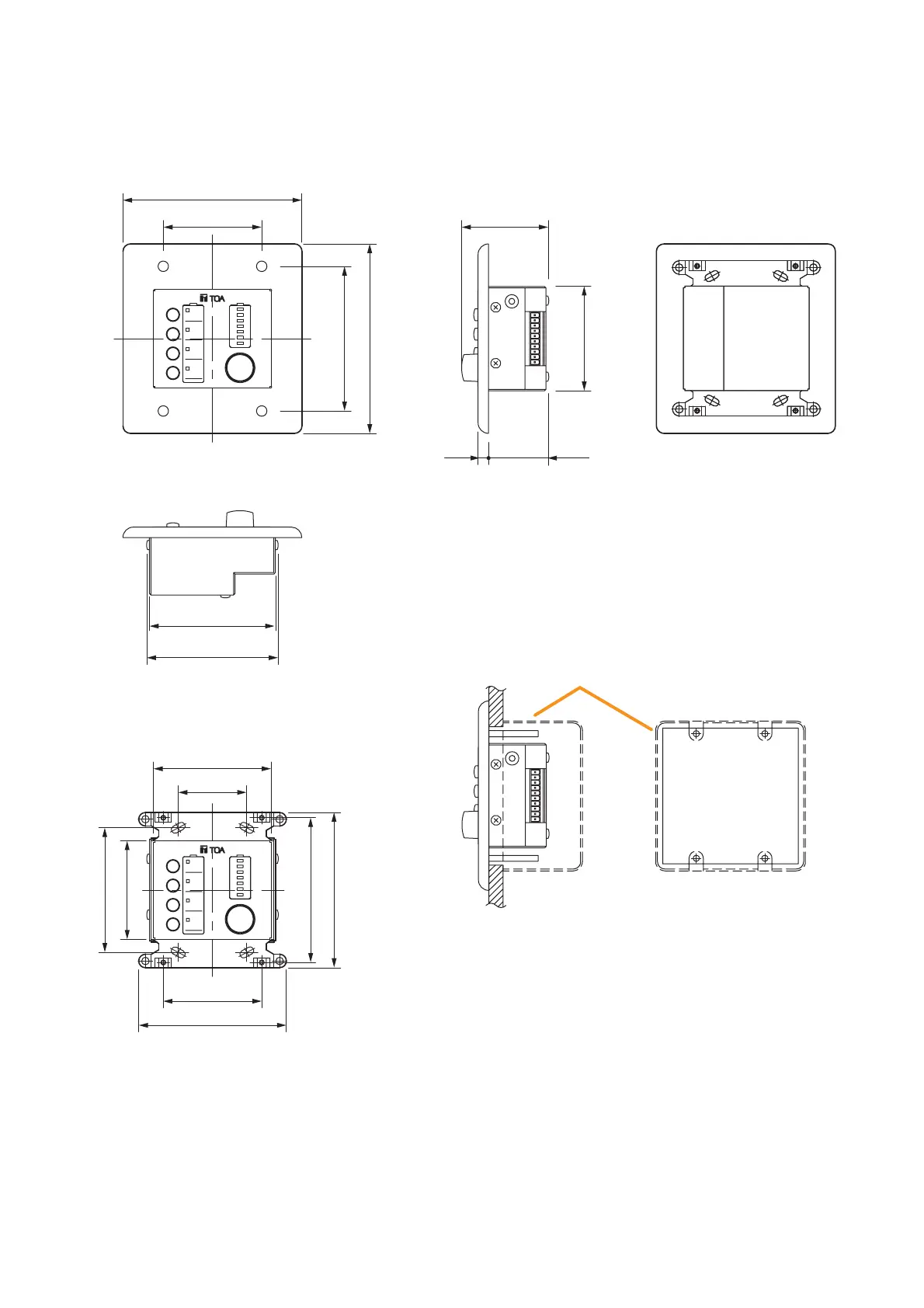

Unit: mm (in)
58.5 (2.3)
40.5
(1.59)
7
(0.28)
2-gang electrical box
(American type, not supplied)
70 (2.76)
120 (4.72)
66 (2.6)
97 (3.82)
127 (5)
88 (3.46)
84.5 (3.33)
46 (1.81)
66 (2.6)
99 (3.9)
79 (3.11)
83.5 (3.29)
66 (2.6)
97 (3.82)
104 (4.09)
[Front]
[Bottom]
[Front view without panel]
[Figure when mounted]
[Side] [Rear]
