Toa A-9120DHM2 - 24 Compression Characteristics Diagram

136
Input Level (dB)
Output Level (dB)
OFF
DEPTH = 1 & 2
DEPTH = 3
DEPTH = 4
DEPTH = 5
COMPRESSOR
–96
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
–91 –86 –81 –76 –71 –66 –61 –56 –51 –46 –41 –36 –31 –26 –21 –16 –11 –6 –1

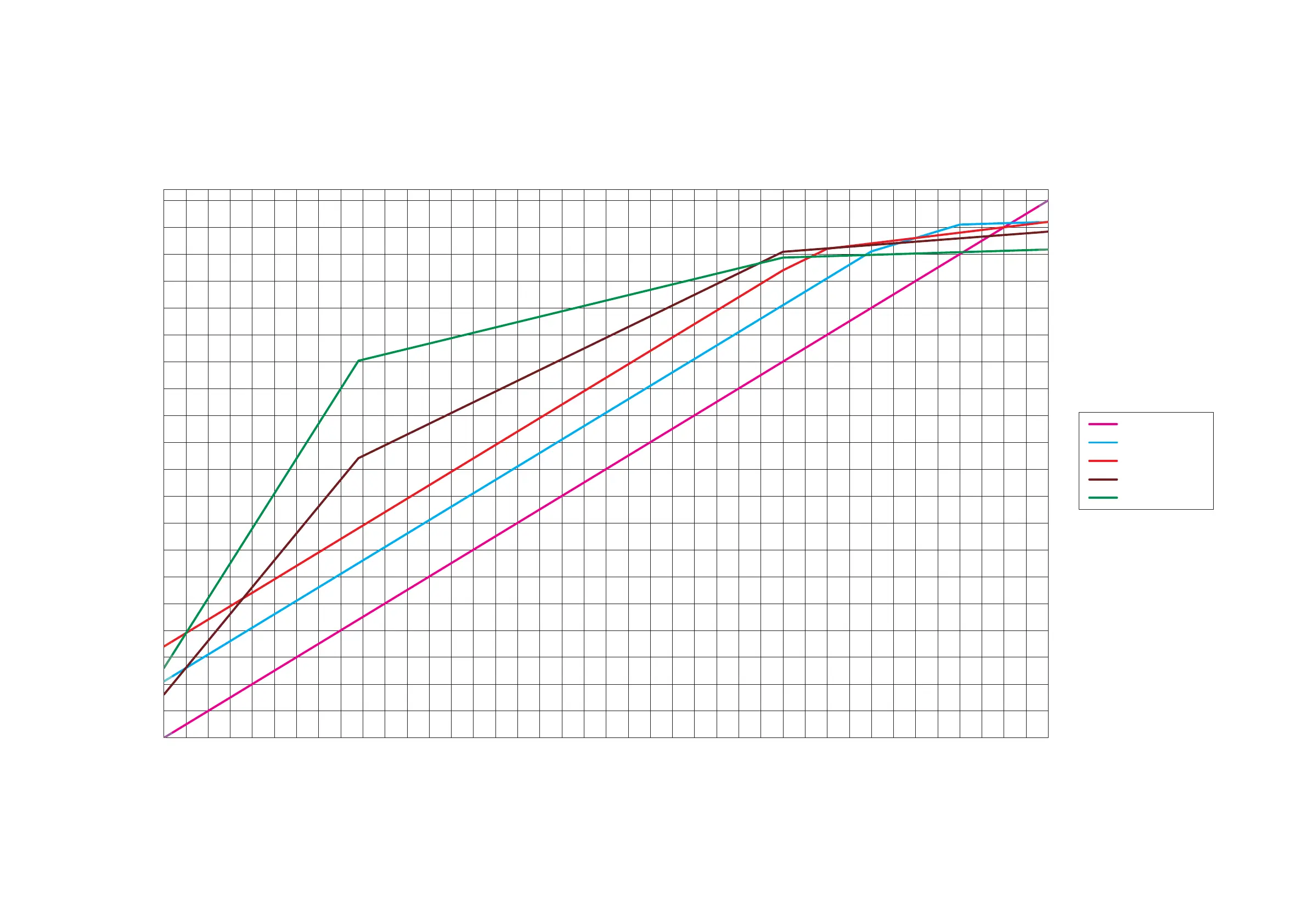

24. COMPRESSION CHARACTERISTICS DIAGRAM
The diagram below shows the compression characteristics on p. 58-A10 or p. 71-B8.
