Toa A-9120DHM2 - A-9060 DHM2 and A-9120 DHM2; A-9240 Shm2

111
70 V
OUT 1
70 V
OUT 2

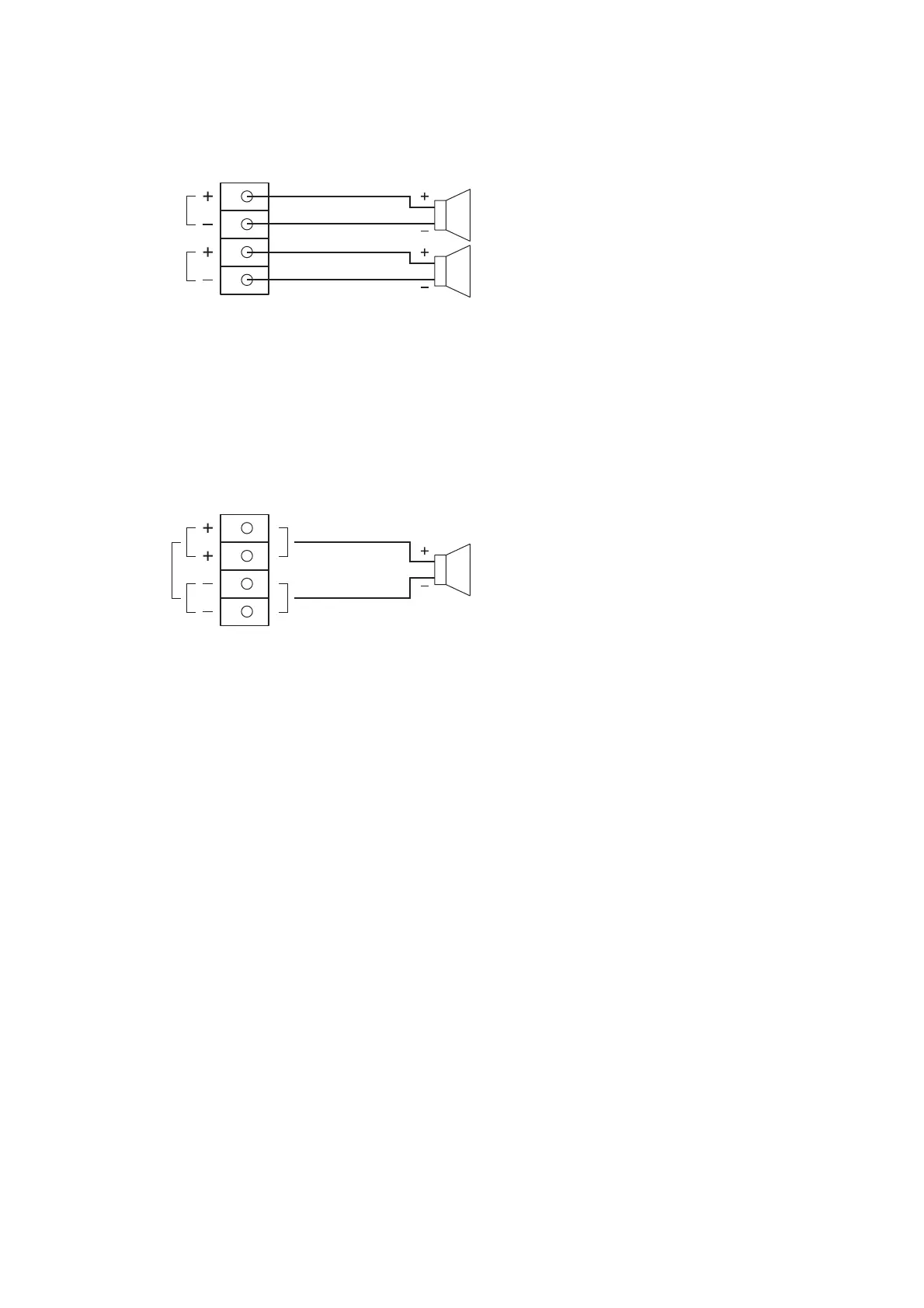

14.2.2. A-9060DHM2 and A-9120DHM2
The speaker output terminals of the A-9060DHM2 and A-9120DHM2 are designed for 70 V line applications.
Both CH 1 and CH 2 outputs are provided on the 4P terminal block.
Connect the speaker cables to each positive terminal (+) and negative terminal (–) individually.
70 V
14.2.3. A-9240SHM2
The speaker output terminal of the A-9240SHM2 is designed for 70 V line applications.
CH 1 output is provided on the 4P terminal block.
Connect the speaker cables to the positive (+) and negative (–) terminals.
