Toa A-9120DHM2 - C-001 T Module Connections; Control Input Terminal; Control Output Terminal; Connecting the ZM-9003

112

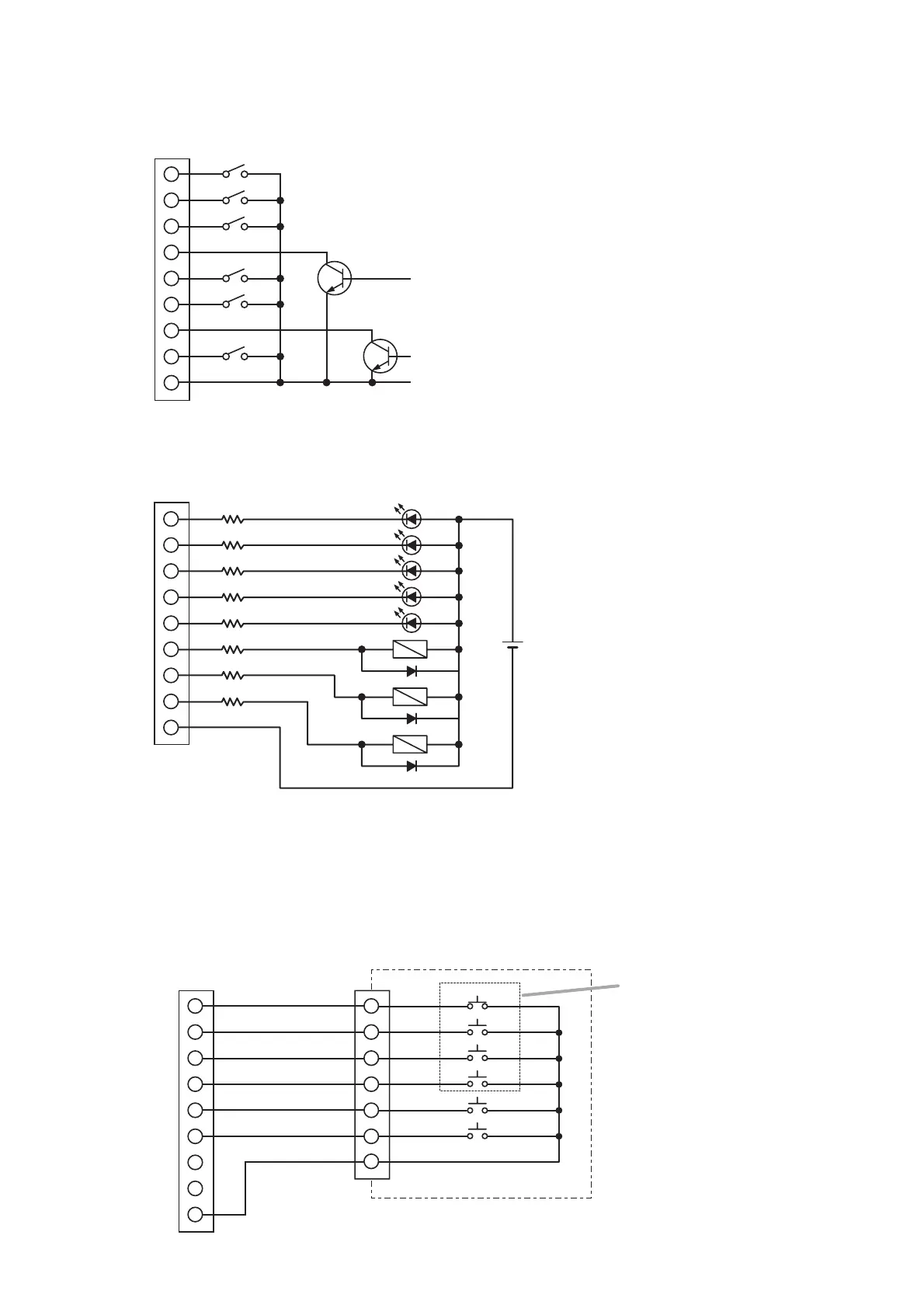

14.3. C-001T Module Connections
IN
1
2
3
4
5
6
7
8
E
Open collectors, etc.
Contact closures
(Open voltage: 3.3 V, Max. 1 mA)
14.3.1. Control input terminal
OUT
1
2
3
4
5
6
7
8
E
Applicable DC voltage
Max. 27 V DC
LEDs, Relays, etc. (Max. 50 mA)
14.3.2. Control output terminal
For operation by means of the control
inputs, refer to p. 109 "Operation by
control input."
IN
1
2
3
4
5
6
7
8
E
ZM-9003 (Control output terminal)
1
2
3
4
5
6
E
4 interlocking switches
1
2
3
4
5
6
14.3.3. Connecting the ZM-9003
Output terminal Nos. 1 – 4 of the ZM-9003 are internally connected to the interlocking switches and Nos. 5
and 6 to the momentary switches.
Connect these terminals to the Control input terminals of the main unit or C-001T depending on applications.
