14.4. RC-001T Module Connection
14.4.1. Connection method

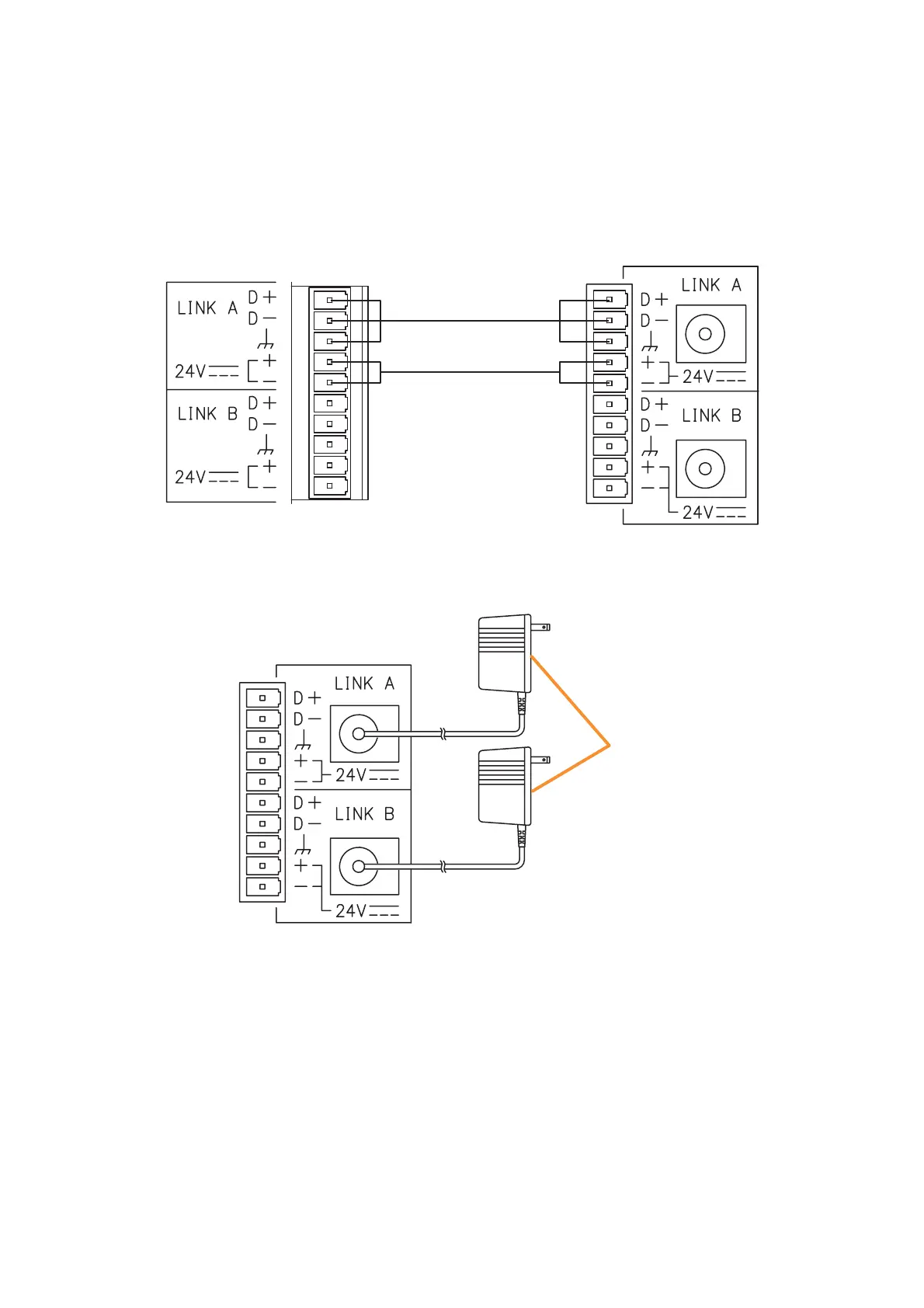

To connect the RC-001T Remote Control Module to the Remote control panels such as ZM-9011, ZM-9012,
ZM-9013, or ZM-9014, connect the same DATA BUS terminals and the same 24 V DC terminals of the both
units.
RC-001TZM-9011/9012/9013/9014
Connect the AC adapter to the RC-001T to supply the power to the Remote control panel.
RC-001T
AC adapter
A single AC adapter is required for each BUS channel.
A single AC adapter can supply power up to 8 Remote control panels per channel.
Up to 16 Remote control panels can be connected to the RC-001T. In this case, 2 AC adapters are required to
supply power to 8 units on each channel.
