14.4.2. Cable distance
Cable distance between the RC-001T and Remote control panels (ZM-9011/9012/9013/9014), and the
number of connected Remote control panels differ depending on the connection method as shown below.

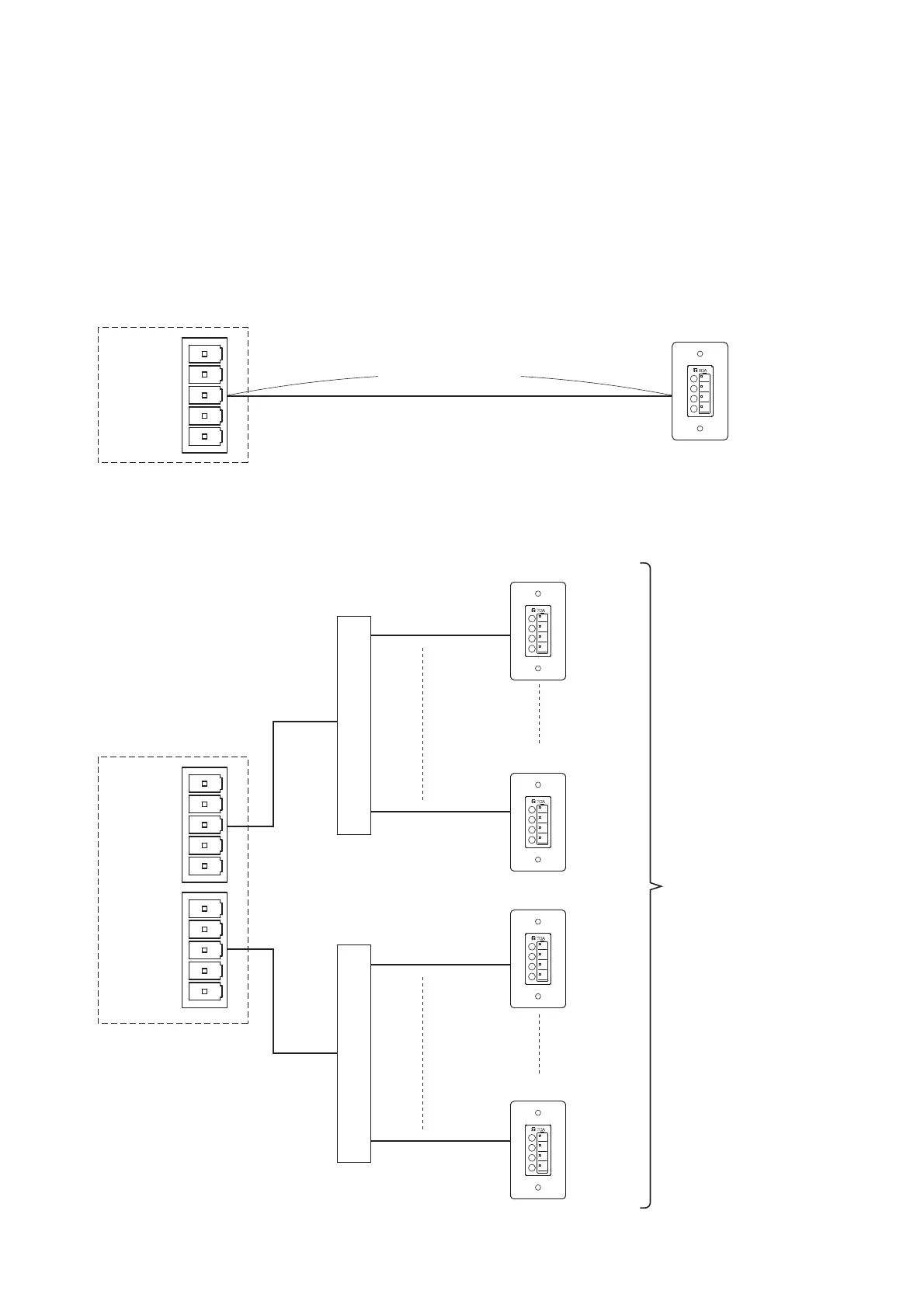

[Star connection configuration]
The maximum cable distance between the RC-001T and each Remote control panel is 800 m (875 yd) in total.
Example: Up to 16 panels can be connected when the total cable distance is within 800 m (875 yd).
LINK A
LINK B
LINK A
or
LINK B
RC-001T
Connection terminals
Remote control panel (1)
(8)
Connection terminals
Remote control panel
(9)
(16)
(When one Remote control panel is connected)
RC-001T
(When 16 Remote control panels are connected)
Maximum cable distance
is 800 m (875 yd) in total.
800 m (875 yd) max.
