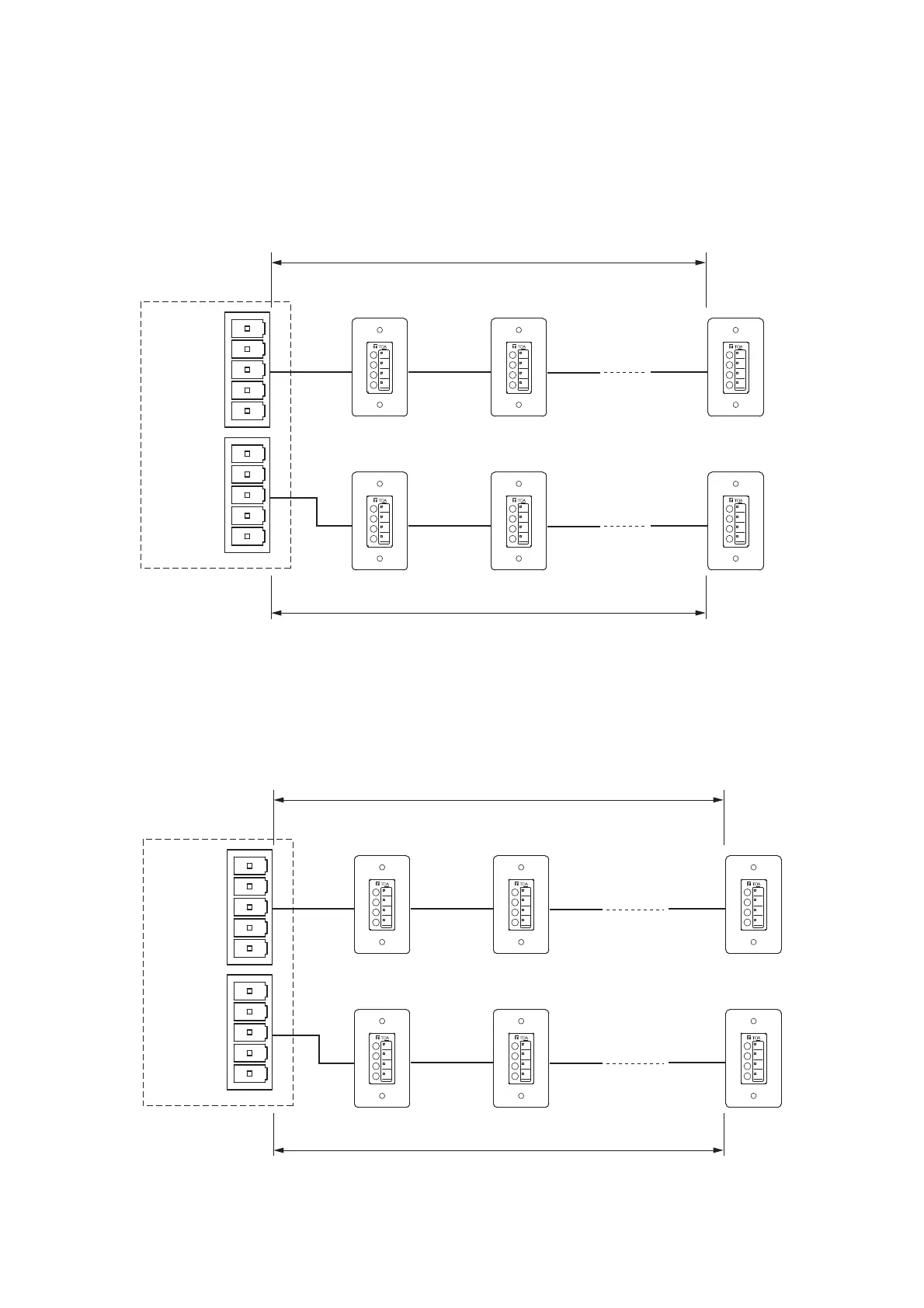

[Daisy-chain connection configuration]
The number of connected Remote control panels differs depending on the cable distance.
When 16 panels are connected, the maximum cable distance for each LINK A and LINK B is 200 m (220 yd).
Example 1: When each cable for LINK A and LINK B is extended up to 200 m or 220 yd (400 m or 440 yd in
total), 16 panels can be connected irrespective of the distance between RC-001T and panels,
and between panels.
LINK A
LINK B
RC-001T
Remote control
panel (1) (2) (8)
(10) (9) (16)
200 m (220 yd) max.
200 m (220 yd) max.
Example 2: When each cable for LINK A and LINK B is extended up to 300 m or 330 yd (600 m or 660 yd in
total), 14 panels can be connected irrespective of the distance between RC-001T and panels,
and between panels.
LINK A
LINK B
RC-001T
300 m (330 yd) max.
300 m (330 yd) max.
Remote control
panel (1) (2) (7)
(9) (8) (14)
