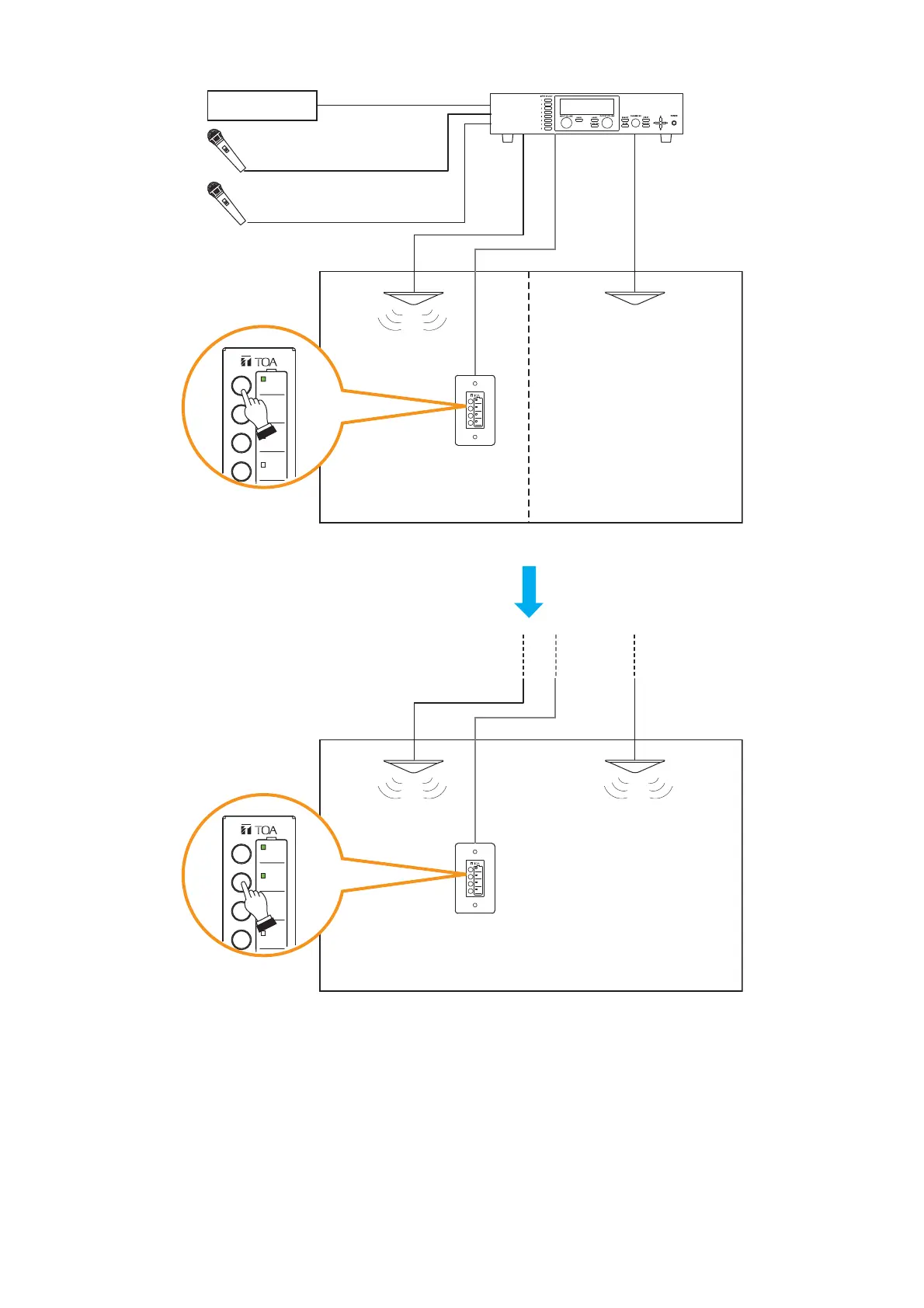

BGM player
Input channel 1
Input channel 2
Input channel 3
Zone 1 (Output channel 1)
Remote controller
with address "0"
Mixed audio signals
of BGM, MIC 1, and
MIC 2
No audio output
Zone 2 (Output channel 2)
9000M2 series
OUT 1
OUT 2
Microphone
(MIC 1)
Microphone
(MIC 2)
(When one room is partitioned into two sections)
Zone 1 (Output channel 1)
Remote controller
with address "0"
Mixed audio signals
of BGM, MIC 1, and
MIC 2
Zone 2 (Output channel 2)
Mixed audio signals
of BGM, MIC 1, and
MIC 2
OUT 1
OUT 2
(When 2 rooms are combined into one large room)
Notes
• When a scene memory is recalled while the cross point ON/OFF function is performed by the remote
controller, the system operation is brought into the state set in the scene memory. (Scene memory takes
precedence.)
• When the same cross points have been assigned to the multiple buttons, the said cross point can be
controlled in the same operation each time any button is pressed.
• In-use indicator for the button lights when all the set cross points are turned to ON. When the multiple cross
points are set to be controlled by a single button, and when some points are also redundantly set to be
controlled by other buttons, the in-use indicator status may not match with the ON/OFF status of the cross
point.
• Paging input channel's cross point cannot be turned ON or OFF by the remote controller.
