SERVICE INFORMATION

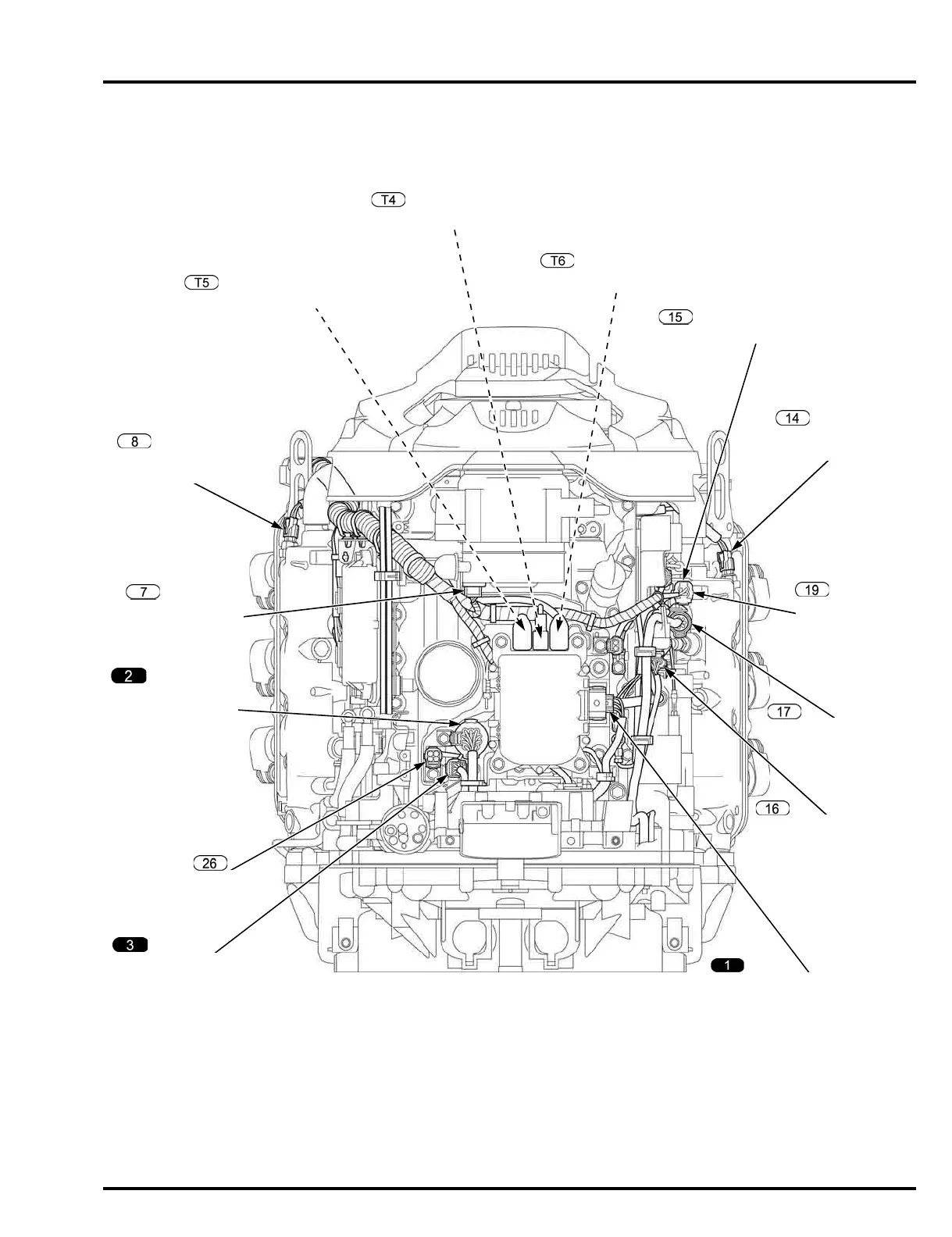

CABLE/HARNESS ROUTING
POWER TILT MOTOR
2P CONNECTOR
INTERFACE 6P CONNECTOR
INDICATOR PANEL WIRE
HARNESS 6P CONNECTOR
HO2S
4P CONNECTOR
SWITCH PANEL
WIRE HARNESS
14P CONNECTOR
ACG CABLE TERMINAL
POWER TILT RELAY WIRE TERMINAL
EMT SENSOR 2
2P CONNECTOR
TRIM ANGLE SENSOR
3P CONNECTOR
DLC 4P
ALTERNATOR
4P CONNECTOR
EMT SENSOR 1
2P CONNECTOR
TACH PULSE 2P CONNECTOR
STARTER CABLE 1 (+) TERMINAL
