Chapter 8 – Alarm Settings
71

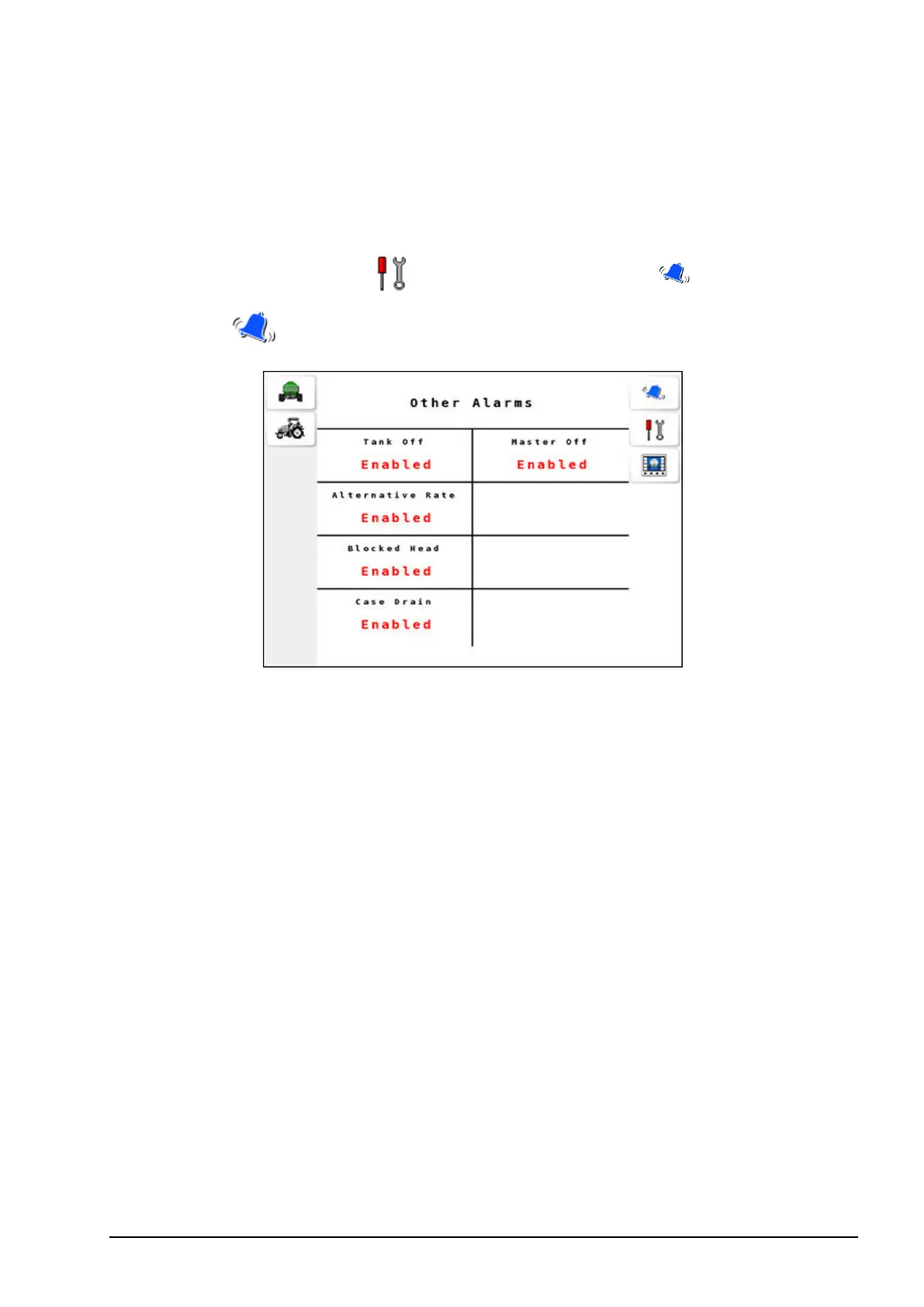

8.8. Setting up other alarms
There are additional alarms that can be configured for the seeder
operation.
1.
Select Settings Menu / Alarm Settings Menu / Other
Alarms .
Configure the following alarms:
l Tank Off: Triggered when the master switch is on but the tanks
are switched off. This alarm is intended as a warning only.
l Master Off: Triggered when a tank is switched on and the master
switch is in the off position. This alarm is intended as a warning
only.
l Alternative Rate: Triggered when the primary rate (preset rate 1)
is not being applied. Either the secondary rate (preset rate 2) is
active, or increment/decrement buttons are used to change the
application rate.
l Blocked Head: Triggered if the mounted sensors detect one or
more blocked heads.
l Case Drain: This alarm can be used if the seeder has a case drain
alarm fitted to the fan motor. The alarm is triggered if the fan
motor case drain pressure is too high (> 450 kPa).
