62
10. STARTING UP EXTERNAL LINK AND SETTINGS
3. Press [SET] to finish settings.
• Connection status via Bluetooth wireless technology is displayed as follows.
: Connecting
: Canceling connection
PROCEDURE Necessary settings for RS232C
1. Start up External Link.
" PROCEDURE Necessary settings for
Wireless LAN communication (when
communicating DS and the external device
directly)" step1 to 3

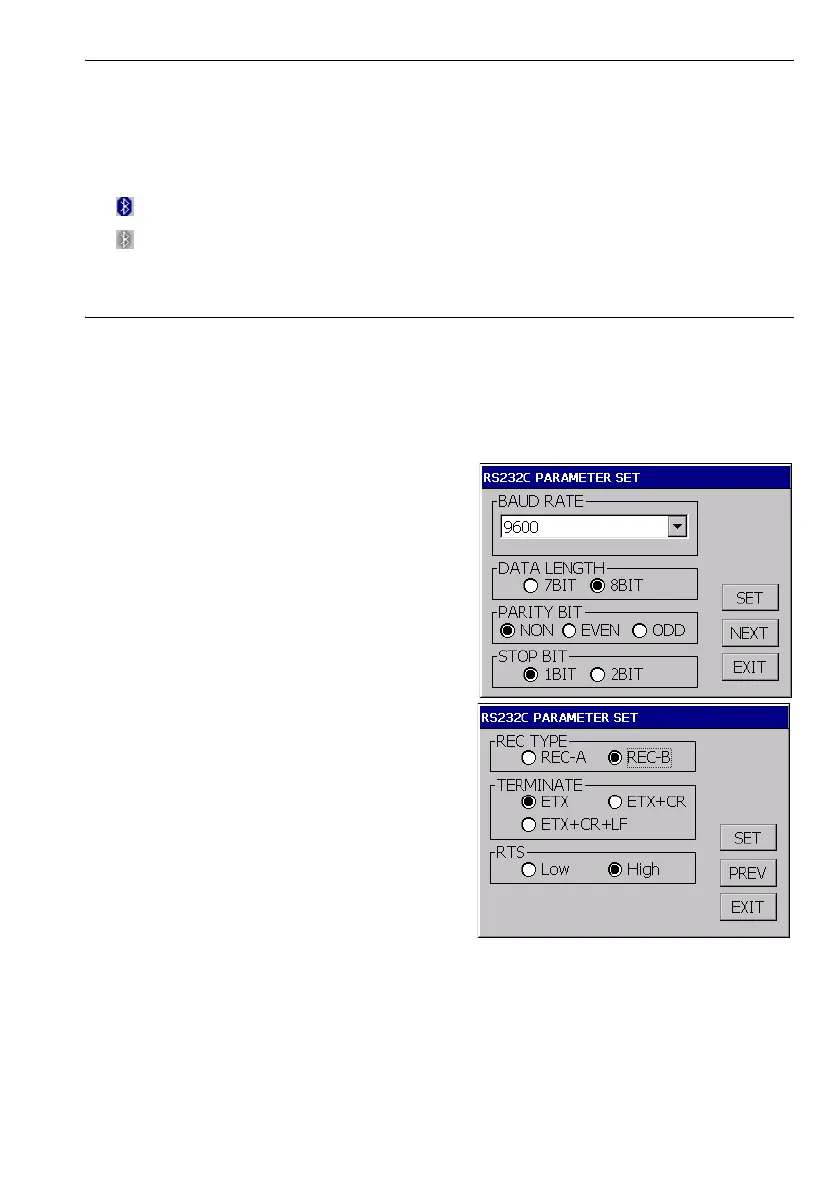

2. Press [RS-232C] in <SETTING>.
Items set and options (*: Factory setting)
Baud rate : 1200/2400/4800/9600*/19200/
38400/57600/115200bps
Data bits : 7/8* bits
Parity : Not set*/Odd/Even
Stop bit : 1*/ 2 bits
REC Type : REC-A (newly measured data is
output)/REC-B (displayed data is
output)*
Terminate : ETX*/ETX+CR/ETX+CR+LF
RTS : Low/High*
3. Press [SET] to finish settings.
To Next Page
