MC-X1 Connectivity and Configuration
Factory Reset for the GR-i3 via TRU
19
Excavator Indicate System P/N: 1022461-01
6. After resetting the Main GNSS board, repeat steps 3 to 5e for the Auxiliary GNSS board.
The TCP Port for the Auxiliary GNSS board is 8013.

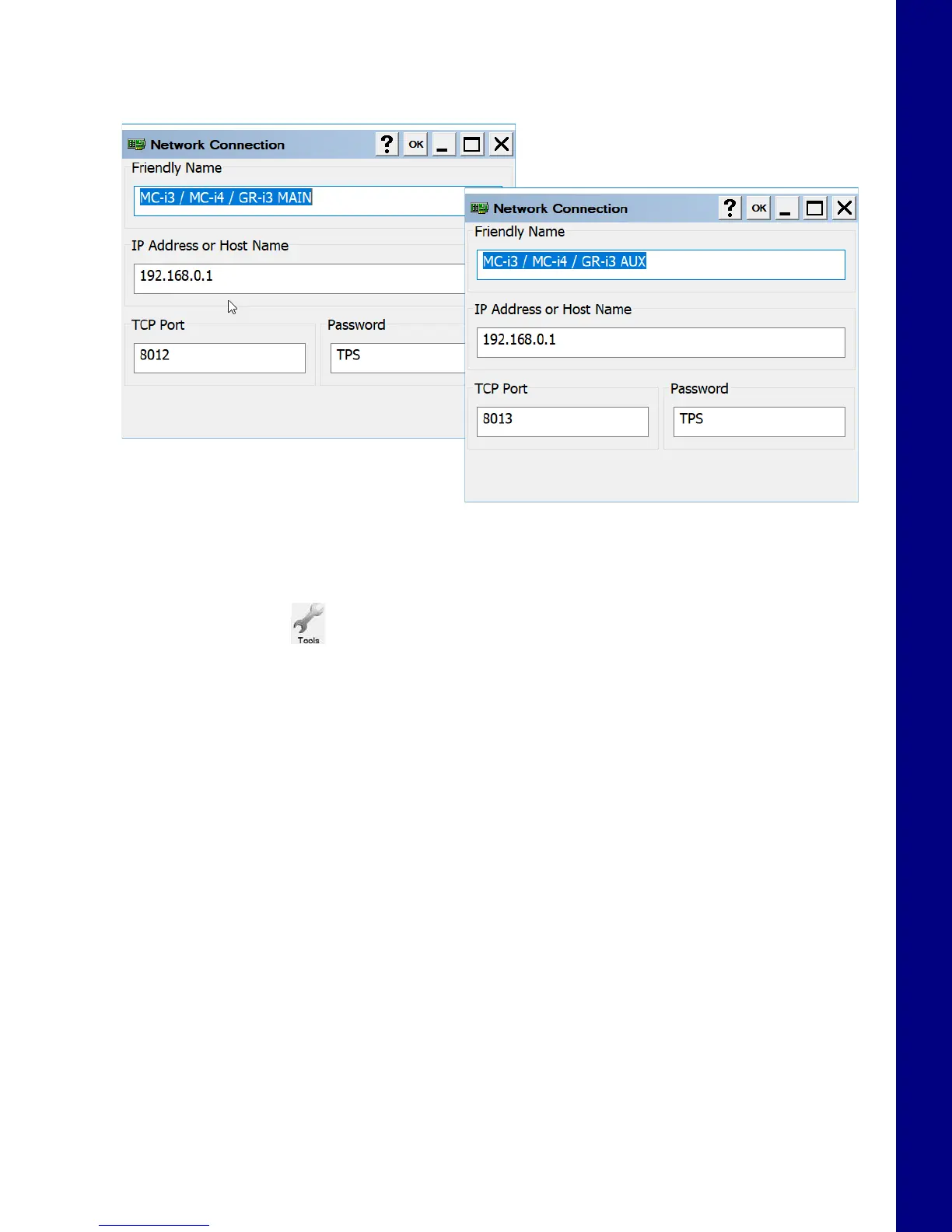

Figure 32. TRU - Network Parameters
7. Tap Connect.
8. Tap the Tools icon .
9. Select Factory Reset.
10. A popup message appears. Tap OK.
11. After both GNSS boards have been reset, close TRU.
