Machine Measurements and Configuration
Entering Sensor Information
41
Excavator Indicate System P/N: 1022461-01
6. Tap Next to access the Excavator Hitch screen.

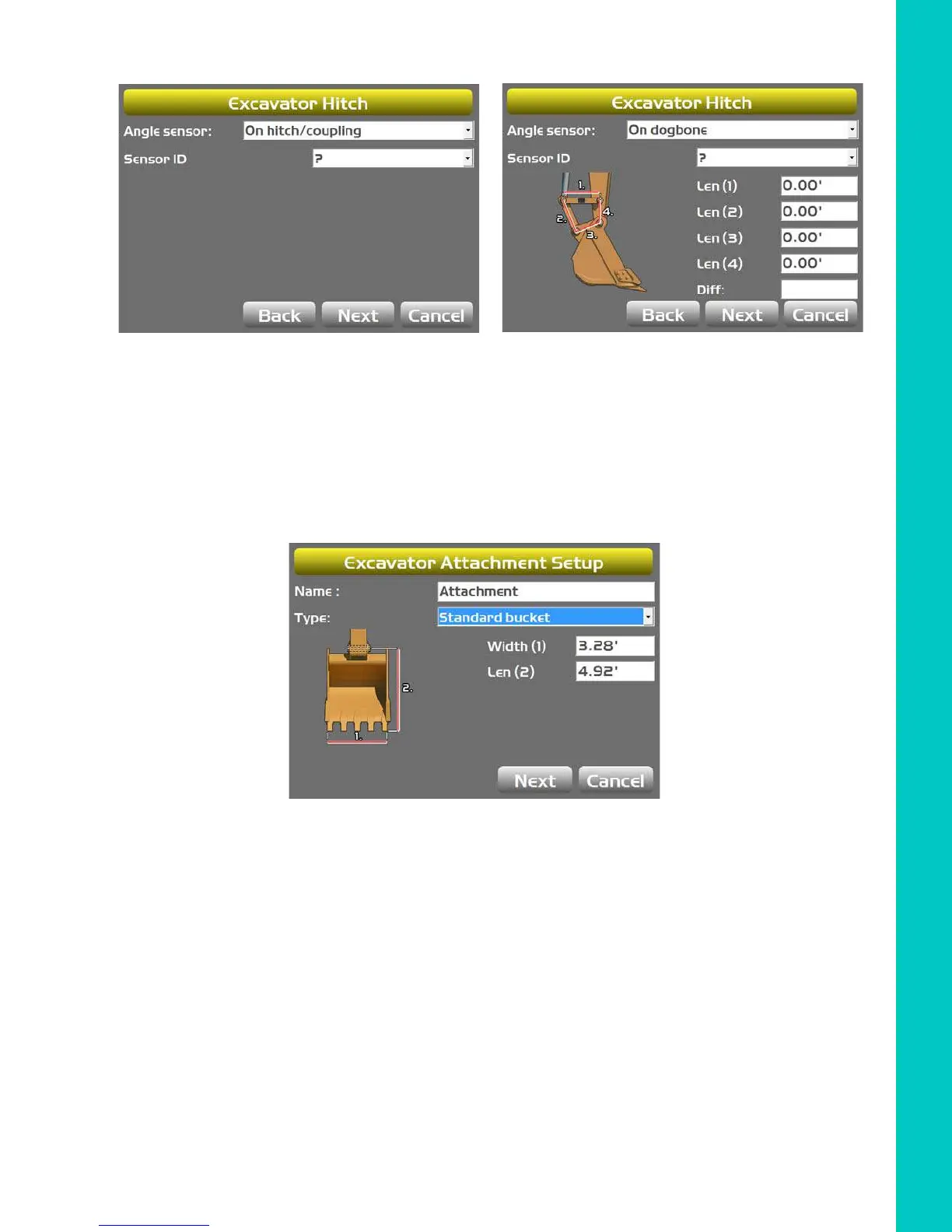

Figure 53: Select Bucket Sensor ID
7. Enter the appropriate values, and select corresponding sensor.
8. Tap Next to access the Excavator Attachments screen.
a. Tap New to access the Excavator Attachment Setup screen.
b. Enter or select the appropriate data as needed.
Figure 54: Excavator Attachments
c. Press Next to access the Calibrate Attachment Angle screen (calibration performed
in next chapter).
d. Press Next to access the Calibrate Bucket Base screen (calibration performed in next
chapter).
e. Press Finish to access the Excavator Attachments screen.
f. Repeat Steps a through e for each attachment.
