Topcon MR-2 User Manual

Cables and Accessories
7
P/N: 1011907-01
Getting Acquainted
Cables and Accessories
Standard Cables
The MR-2 package includes a cable harness that breaks out two serial communication ports and a power supply
connection to the receiver.
Table 1 lists these cables.

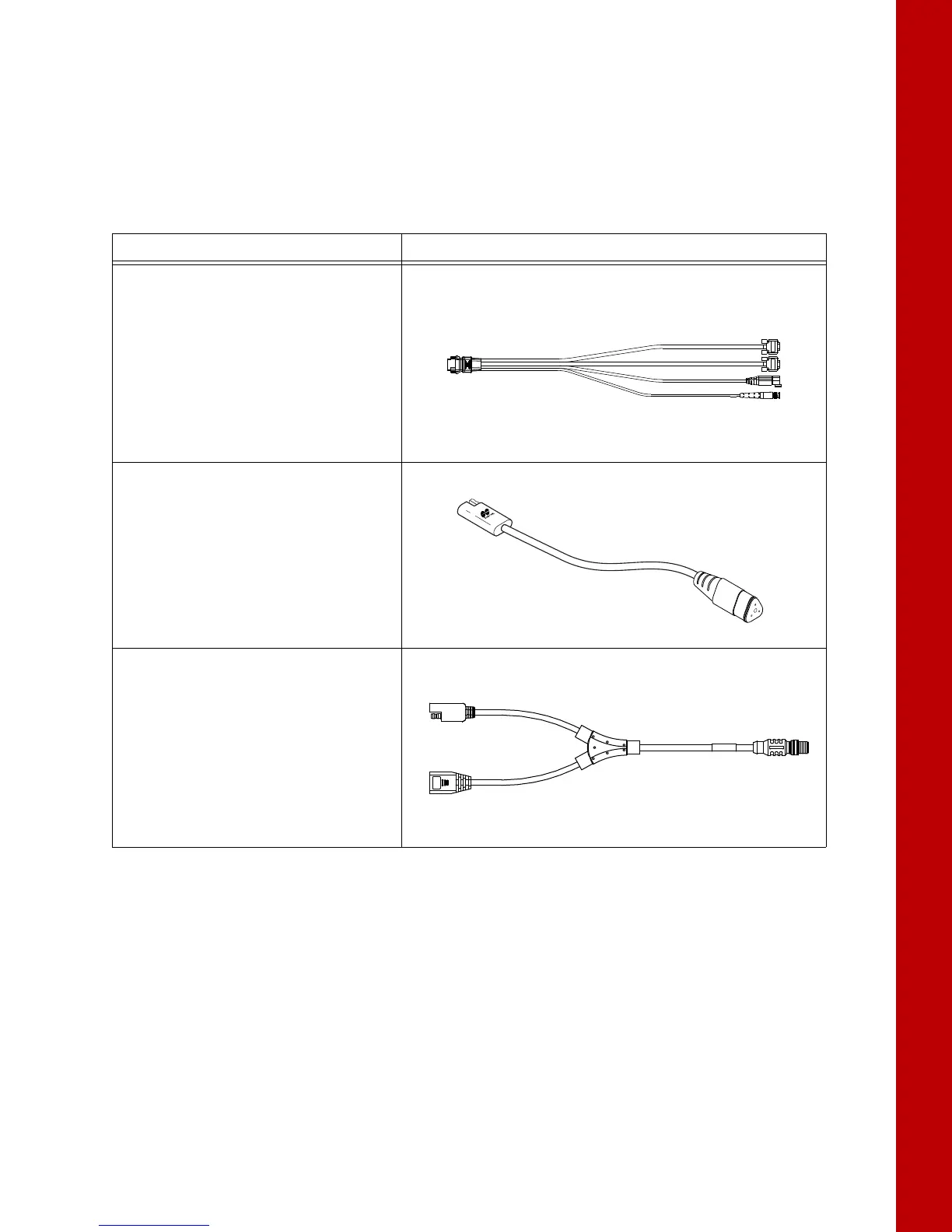

Table 1. MR-2 Package Cables
Cable Description Cable Illustration
Cable Harness
• Deutsch 3-pin connector: Connects the
receiver to a 9-36 VDC power supply.
• DB-9 connectors: Connects the receiver to
external devices (controller or computer)
for data transfer and receiver
configuration.
• BNC connector: Provides accurate time
transfer to external devices.
p/n: 14-008207-02LF
Power Adapter
Converts the Deutsch 3-pin connector to an
SAE connector for connection to a 9-36 VDC
power supply.
p/n 1000231-01
Ethernet Cable
• SAE connector: Connects the receiver to a
9-36 VDC power supply.
• Ethernet connector: Connects the receiver
to external devices (controller or
computer) for data transfer and receiver
configuration.
• M12 connector: Connects to the M12
connector on the receiver.
p/n: 1008816-01
