Topcon MR-2 User Manual

Ethernet Connection
24
P/N: 1011907-01
Configuration
View Receiver Password
1. Connect the receiver to TRU using a Serial connection (see “Connect The Receiver to TRU” on page 20).
2. Click Receiver SettingsNetwork. The Network screen appears (Figure 22).

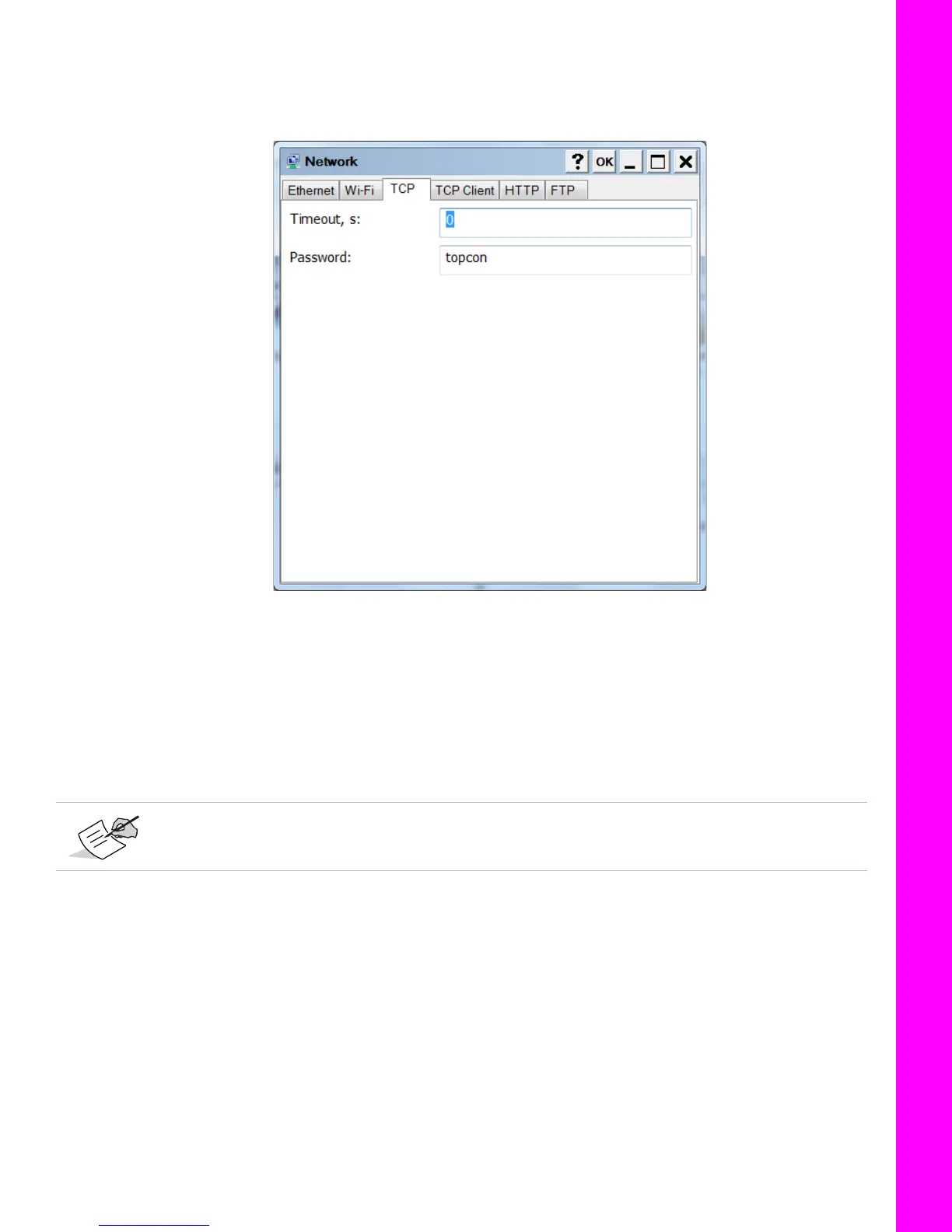

Figure 22: Network – TCP Tab
3. Click the TCP tab. The password displays in the Password field.
Change Password
1. Connect the receiver to TRU using a Serial connection (see “Connect The Receiver to TRU” on page 20).
2. Click Receiver SettingsNetwork. The Network screen appears (Figure 22).
3. Click the TCP tab, and enter a new password in the Password field.
4. Click OK, and reset the receiver to enable the new password.
Reset the Receiver
After changing Ethernet settings, reset the receiver. Open the Terminal window, enter set,reset,yes and click
Send. The IP addresses become assigned within 30 seconds after reset. The Receiver will reply with a ping,
and become accessible by TCP ports from TRU or PC-CDU. Click X to close Terminal and go to the TRU main
screen.
Shutdown of the receiver takes approximately 1 to 1.5 minutes. After shutdown, the receiver takes
approximately 1 to 1.5 minutes to restart. After restart, all functions of the receiver are available.
For all receivers, the default password is topcon .
