Cable and Antenna Connections
16
P/N: 1011907-01
System Setup
Step 2: Connect the Ethernet Cable
The MR-2 allows up to five virtual TCP port connections using the same IP address. Virtual TCP ports can be
used to connect the device to a PC (for control) and to an RTK source.
Figure 13 shows the connections for the
Ethernet cable.

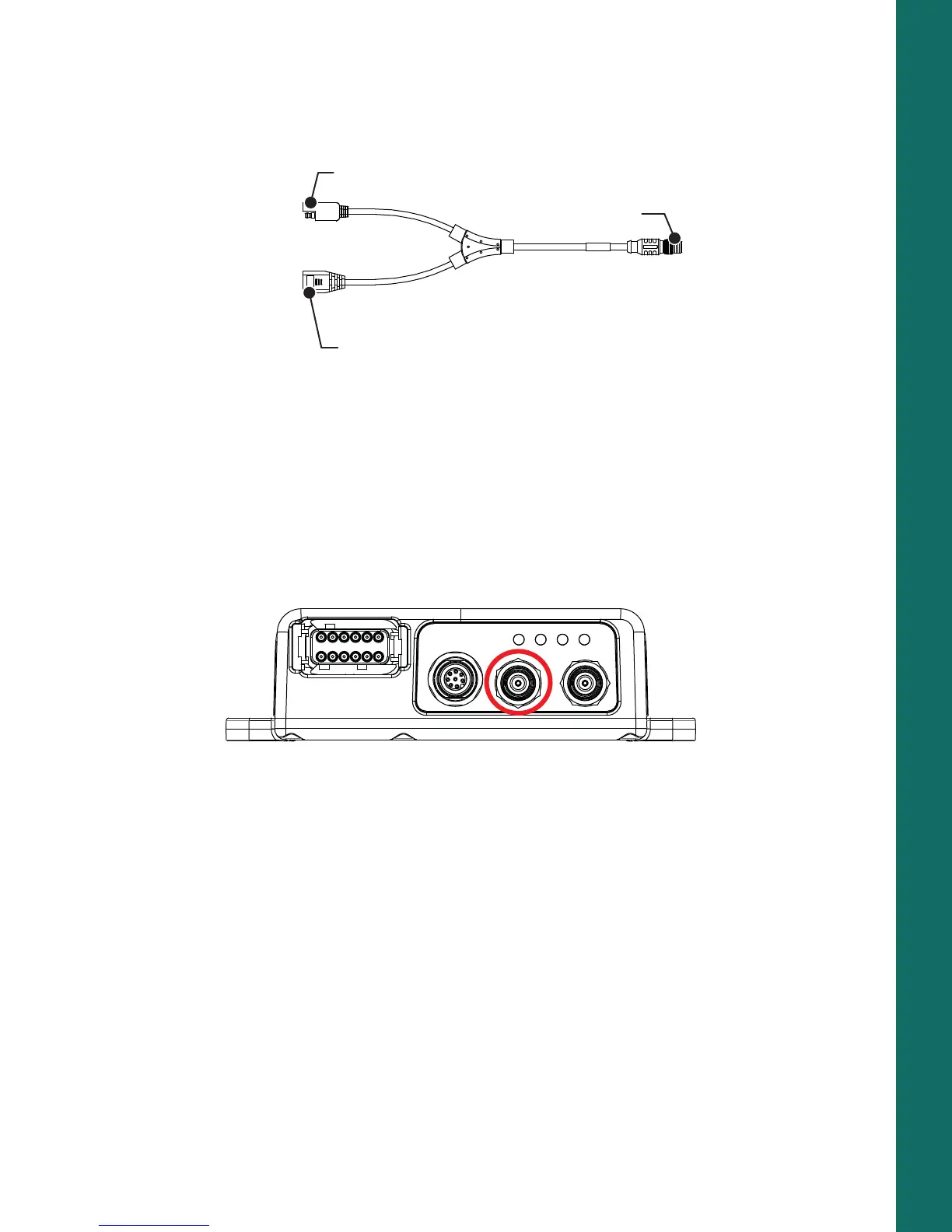

Figure 13: Ethernet Cable Connections
1. Connect the Ethernet cable to the MR-2.
2. Connect the RJ45 end of the Ethernet cable to a source.
3. Connect the SAE end of the Ethernet cable to a power source.
Step 3: Connect a Single Antenna
To connect a single external antenna for precise positioning:
1. Mount the GNSS antenna on a rigid surface.
2. Connect the antenna cable to the primary antenna connector circled in red in Figure 14.
Figure 14: Primary Antenna Connector
3. Make sure the antenna cable is connected to the antenna.
Connect to MR-2
Connect to Source
Connect to Power
To Next Page
