Mounting the Receiver
9
P/N: 1011907-01
Getting Acquainted
Mounting the Receiver
The four mounting flanges on the MR-2 housing enable you to easily secure the receiver in any orientation, onto
any hard surface, with the strength to withstand tough environmental conditions (
Figure 3).

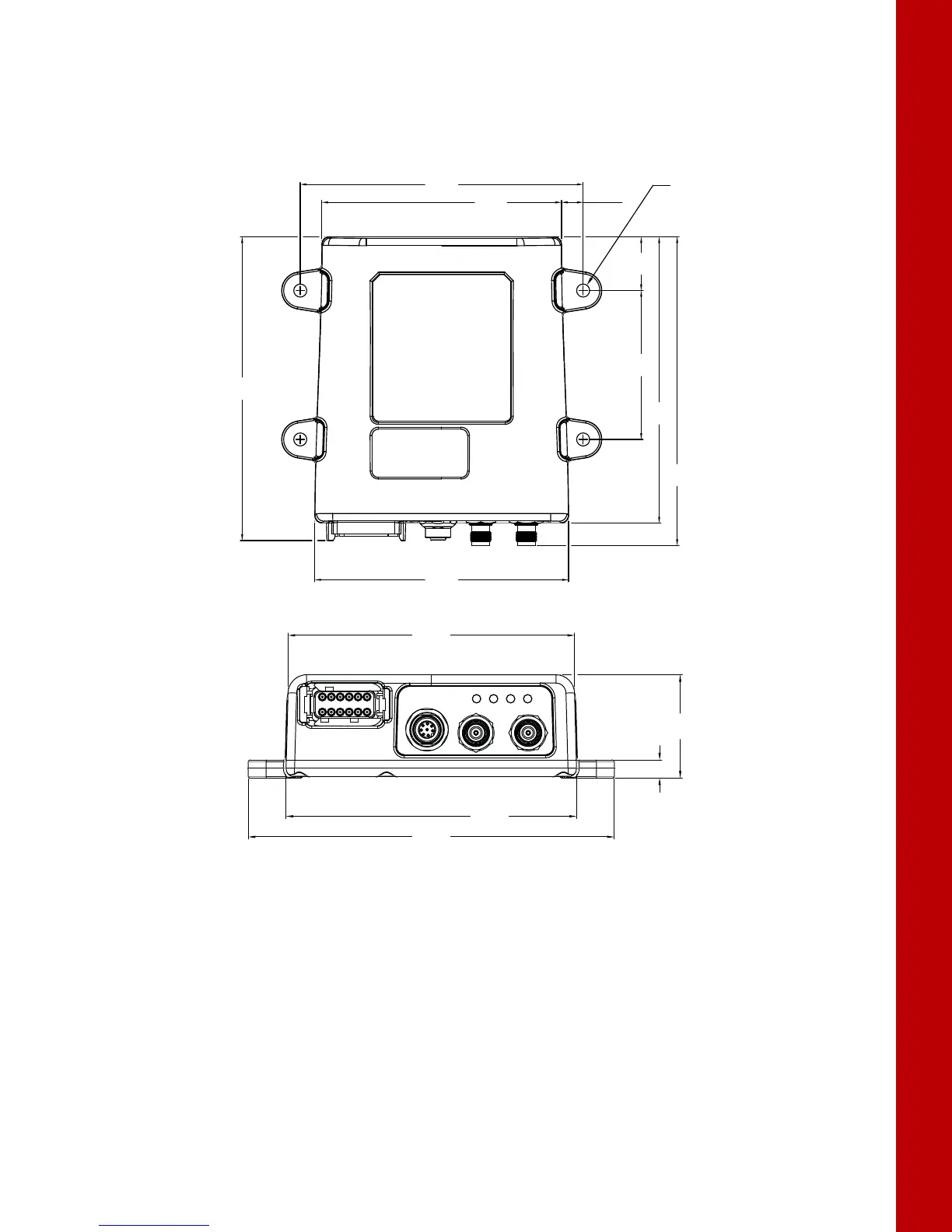

Figure 3: MR-2 Mounting Dimensions
29
(1.14)
80
(3.15)
153.7
(6.05)
165.9
(6.53)
128.8
(5.07)
11.7
(0.46)
152
(5.98)
163.1
(6.42)
136.4
(5.37)
7 Dia.
(.28)
4 PLCS
8.5
(0.33)
48.5
(1.91)
134.4
(5.29)
136.4
(5.37)
171.7
(6.76)
