Topcon MR-2 User Manual

Connector Specifications
62
P/N: 1011907-01
Specifications
Cable Harness
Cable Harness Receiver End Connector

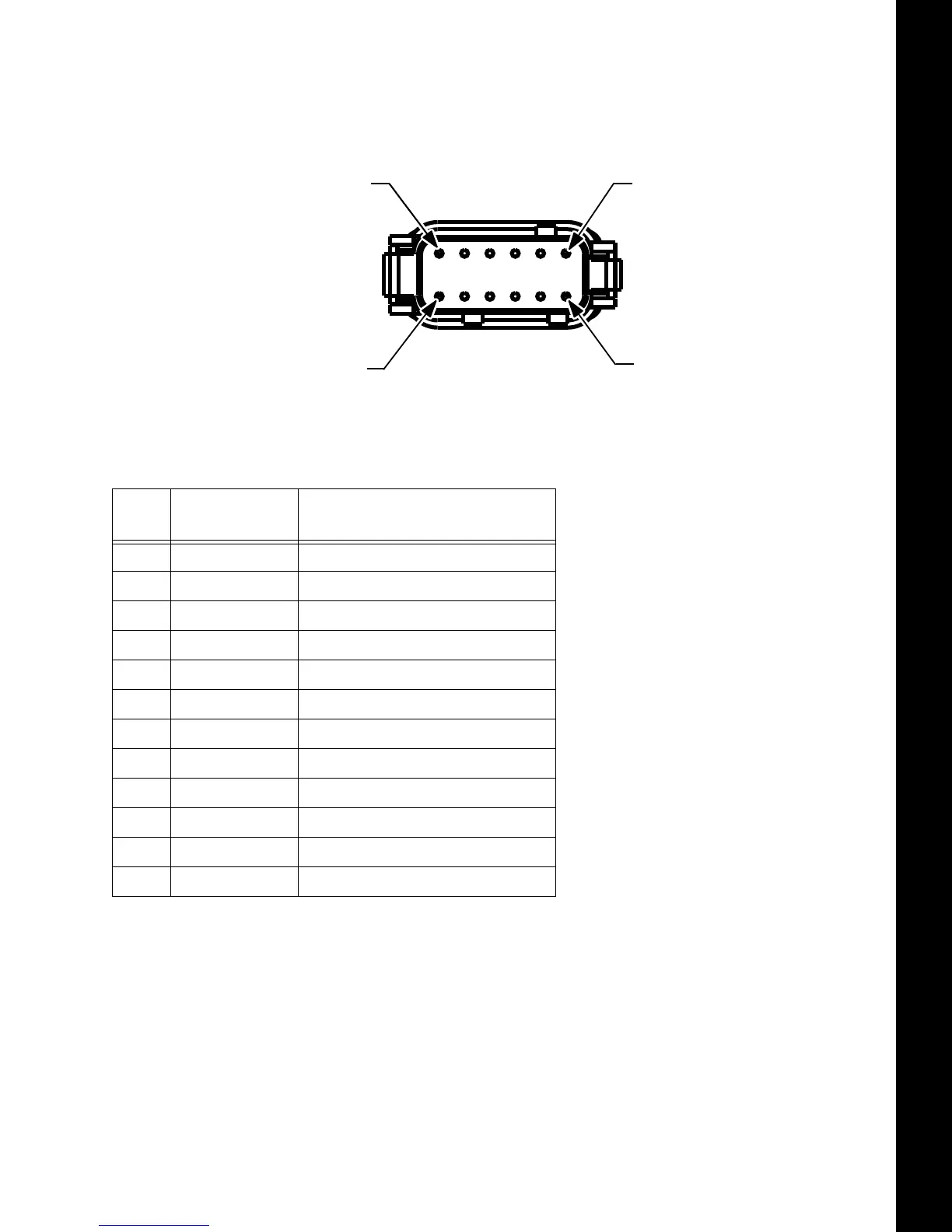

Figure 67: Cable Harness Receiver Connector
Table 9 provides pin out specifications for the receiver end of the cable harness.
PIN 12
PIN 7
PIN 1
PIN 6
Table 9. Cable Harness (Receiver End) Specifications
No.
Signal
Name
Direction
1 GND_IN Ground Input
2 PWR_IN Power Input
3 TXD1 Output
4 RXD1 Input
5 RXD2 Input
6 TXD2 Output
7 GND Ground
8 IGN Power Input
9 COM3 Input
10 COM3 Output
11 PPS Pulse Per Second Output
12 GND Ground
