Topcon MR-2 User Manual

Connector Specifications
67
P/N: 1011907-01
Specifications
Ethernet Cable

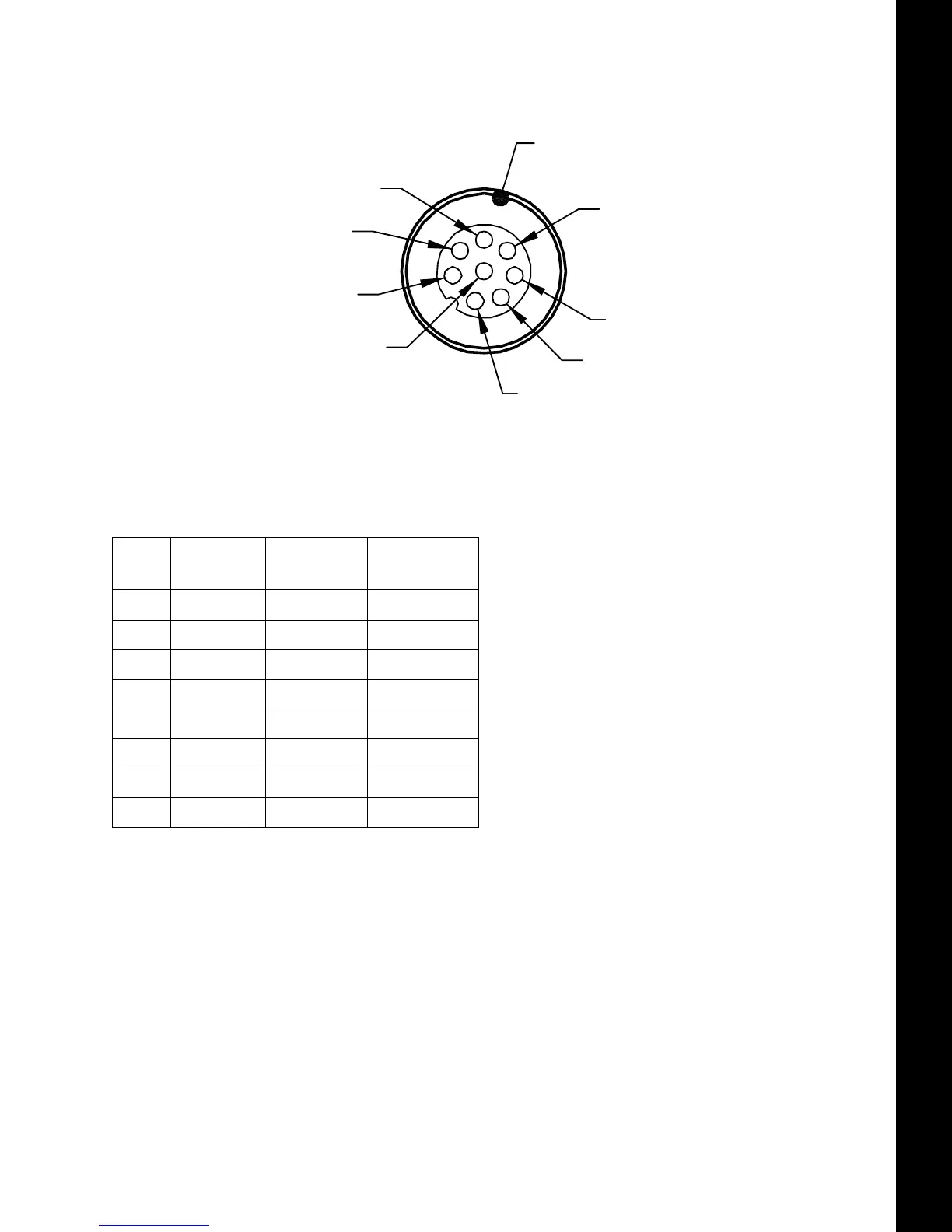

Figure 72: Ethernet Cable - Receiver Side
Table 14 provides pin out specifications for the receiver side of the optional Ethernet cable.
SHIELD
PIN 6
PIN 7
PIN 1
PIN 8
PIN 2
PIN 3
PIN 4
PIN 5
Table 14. Receiver Side Ethernet Cable
Specifications
No.
Signal
Name
Level Direction
1 PWR Power
2 PWR_GND Power/Ground
3 PWR_GND Power/Ground
4 TX-
5 RX+
6 TX+
7 PWR Power
8 RX-
