Ethernet Connection
26
P/N: 1011907-01
Configuration
5. If needed, click the Browse icon
î
to the right of
Port Name
to choose a port from the
My Network
Devices
screen, and click
OK
(Figure 24). The
Connection Parameters
screen appears.

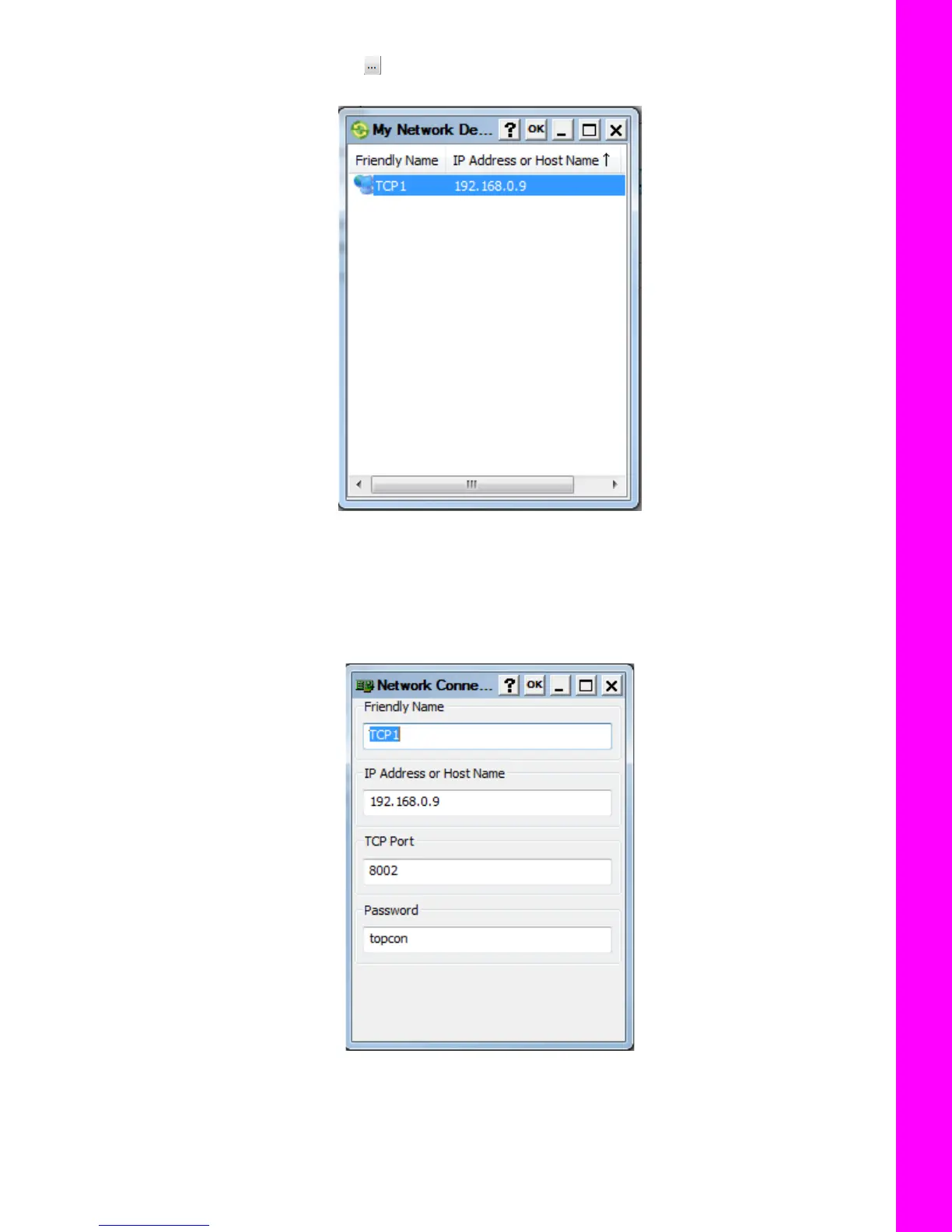

Figure 24: My Network Devices â Ethernet Device
The Port Name shows the friendly and physical names of the computer port. The application remembers the
last used transport, and the last used successful port/device name for every transport, making it easy to connect
to the same device.
6. If needed, right-click on the desired port and click Edit. The Network Connection Parameters screen
appears (
Figure 25).
Figure 25: Network Connection Parameters
7. Enter the IP address and password of the GNSS receiver you want to connect to. The main board IP
address is
192.168.0.9
, and the auxiliary board IP address is
192.168.0.10
.
8. Enter
8002
as the default for TCP Port, and click OK. The Connection Parameters screen appears.
9. Click Connect to connect to the receiver.
