X62
2D Excavator Indicate System
The TS-1 tilt sensors, the GX-60 Display, and the LS-B10W Laser
Receiver make up the 2D excavator indicate system. The LS-B10W
adds a laser height reference to the X62 system and is calibrated for
its location on the stick of the excavator.

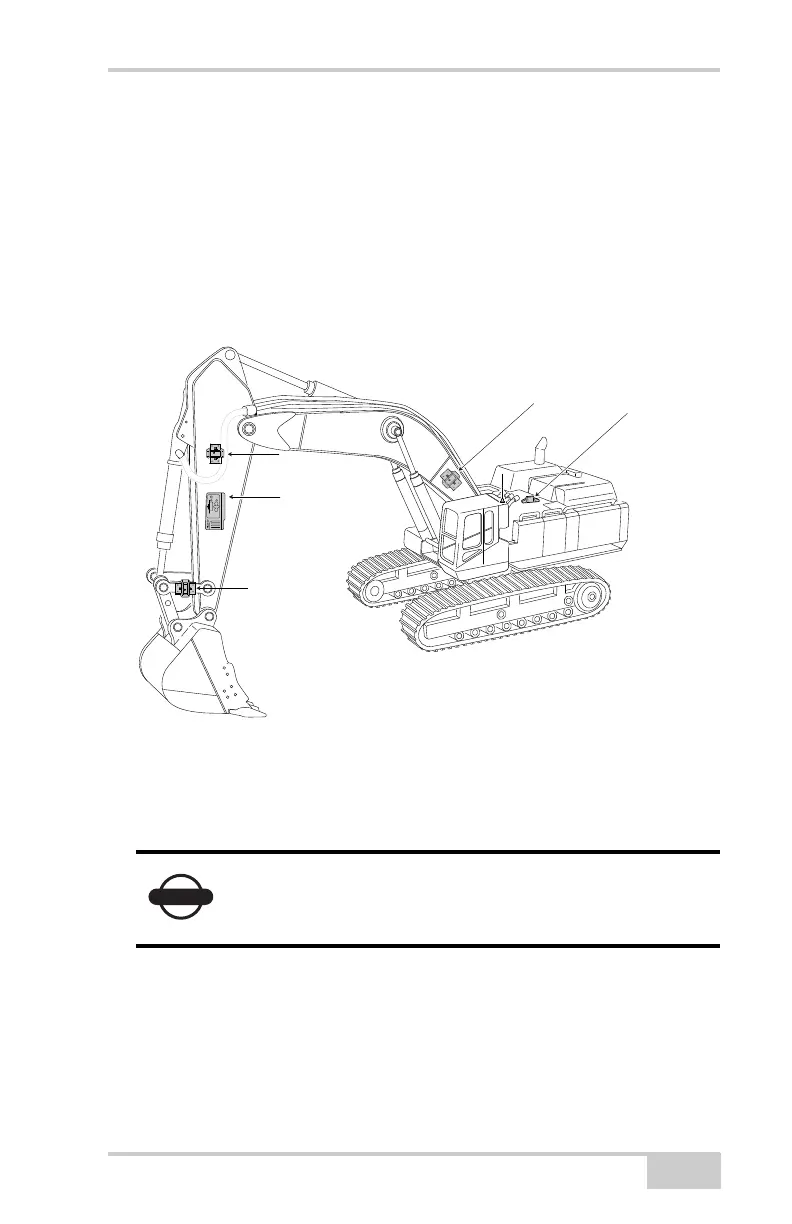

Figure 1-5. TS-1 Tilt Sensors and LS-B10W on Excavator
Figure 1-4 on page 1-4 shows the basic cabling connections for the
X62 system. When installing components, use the Topcon supplied
fuse or fused power from the machine of the same rating.
NOTICE
System ground must be connected to the frame side
of the ground disconnect switch, not directly to the
negative battery terminal.
Dogbone
Sensor
LS-B10W
Laser Receiver
Body
Sensor
Boom
Boom
Sensor
Sensor
Boom
Sensor
Stick
Stick
Sensor
Sensor
Stick
Sensor
