Tormach AF50+ - Lift Cylinder Assembly Exploded View

11: DIAGRAMS AND PARTS LISTS
©Tormach® 2024
Specifications subject to change without notice.
Page 102 UM10825: AF50+ Autofeed Bandsaw Operator's Manual (Version 0324A)
For the most recent version, see tormach.com/support

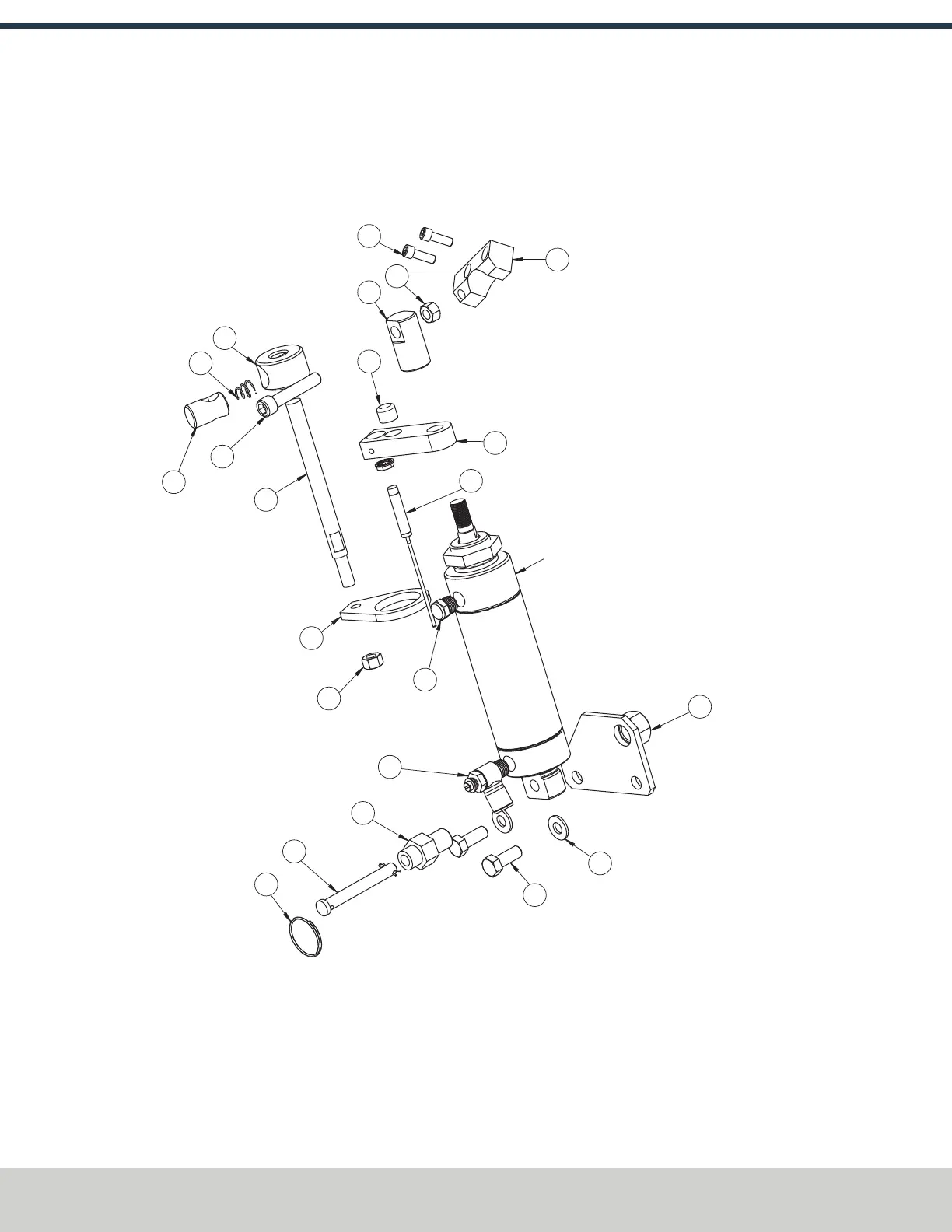

11.21 LIFT CYLINDER ASSEMBLY EXPLODED VIEW
6
5
21
15
16
17
6
18
19
20
1
9
10
2
8
3
4
7
11
12
13
14
22
