10: TROUBLESHOOTING
©Tormach® 2024
Specifications subject to change without notice.
Page 74 UM10825: AF50+ Autofeed Bandsaw Operator's Manual (Version 0324A)
For the most recent version, see tormach.com/support
5. Close the vise with the handwheel until the material is secure. Verify that the stock is flat against the entire length of the base
casting.
6. Lift and secure the guide rail and the infeed table to the stock with clamps, as shown in the following image.

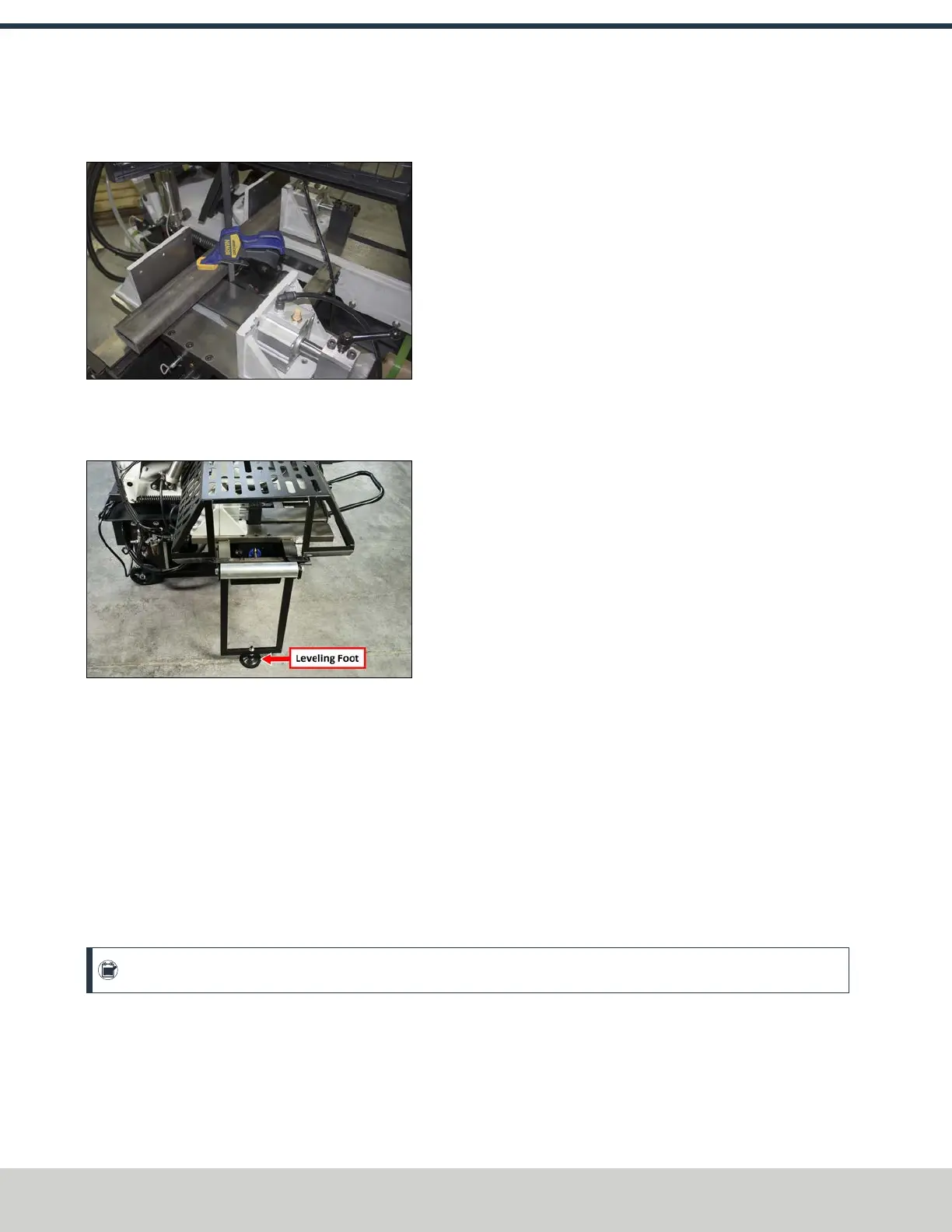

Figure 10-14: Clamp secured to the 24-in. stock.
7. Tighten the three M10 socket head cap screws that you loosened in Step 3.
8. If required, adjust the leveling foot.
Figure 10-15: Leveling foot.
9. Remove the clamps from the machine.
10. Remove the stock from the machine.
10.3.5 Adjust the Jaws
Complete the following steps in the order listed:
Align the Fixed Jaw
1. Open the jaws so that there's enough space to put a square in between them.
2. Put a square on the base casting between the jaws.
3. Push the square until it's flush with the side of the blade.
Note: The square must be flush with the side of the blade, not the blade's teeth.
4. Loosen the two screws securing the fixed jaw to the base casting with a box end wrench.
