Mains power is disconnected from the machine.
c. Disconnect the air line from your site from the input port on the FRLFilter-Regulator-Lubricator.
2. Identify the knob on the blade support guide. Then, loosen it.

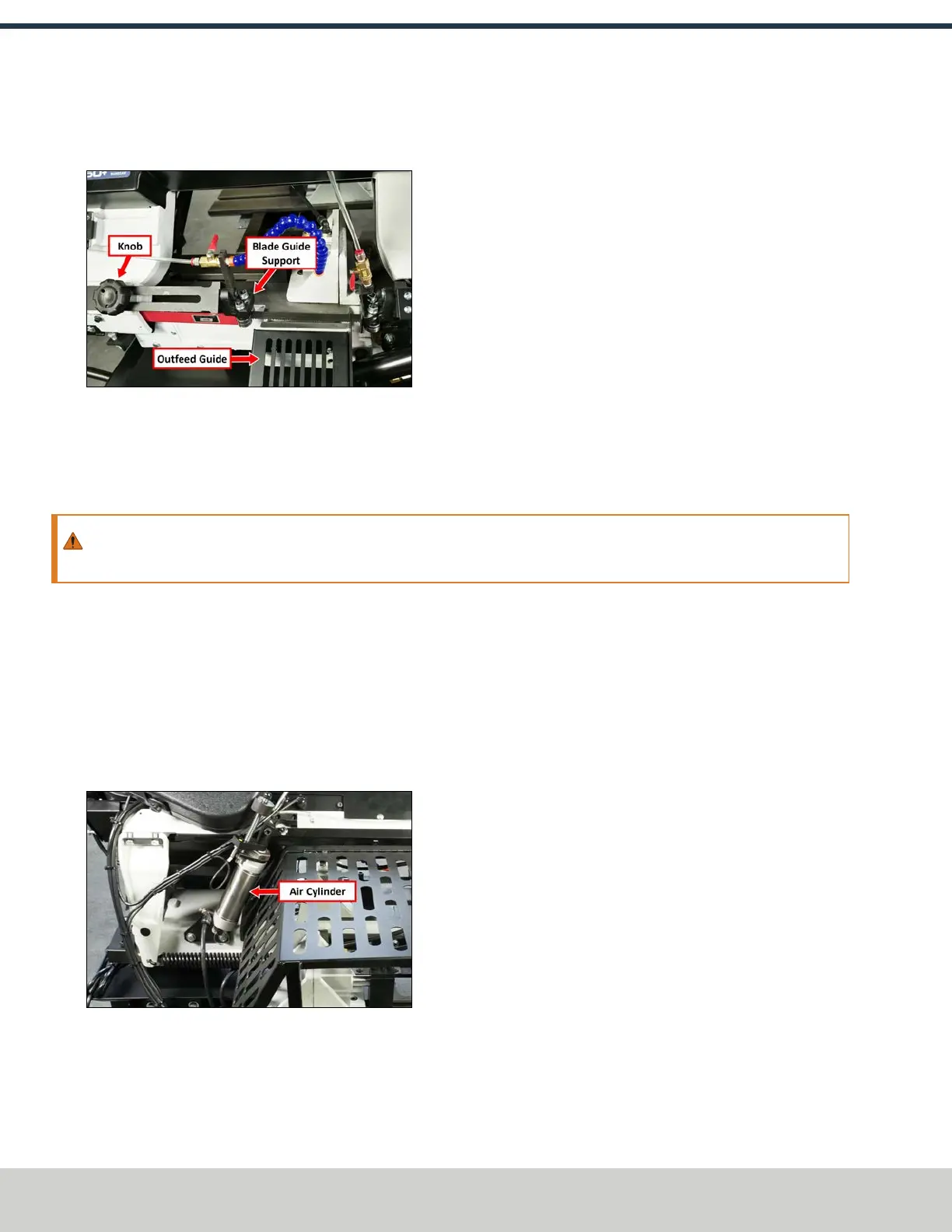

Figure 10-1: Blade support guide and its knob.
3. Move the blade support guide toward the material. Stop when it's 1/4 in. from the material.
4. Tighten the knob on the blade support guide.
10.3.2 Adjust the Blade Tracking
WARNING! Crush Hazard:Moving parts can entangle, pinch, or cut you, causing death or serious injury. While operating the
machine in vertical position, you must keep your hands away from the blade.
1. Put on work gloves, eye protection, and any other appropriate personal protective equipment. We recommend a long-sleeved shirt
and long pants.
2. Power off the bandsaw and disconnect it from the main air supply.
a. Push the Emergency Stop button on the operator panel to lock it into the disabled position.
b. Turn the Main Disconnect switch to OFF.
Mains power is disconnected from the machine.
c. Disconnect the air line from your site from the input port on the FRLFilter-Regulator-Lubricator.
3. On the back of the machine, identify the air cylinder, as shown in the following image.
Figure 10-2: Air cylinder on the back of the machine.
