12. Remove the shipping bracket securing the base casting
to the head casting. Use a 5 mm hex wrench to remove
the socket head cap screw from the top of the bracket,
and a 14 mm wrench to remove the nut from the bottom
of the bracket.

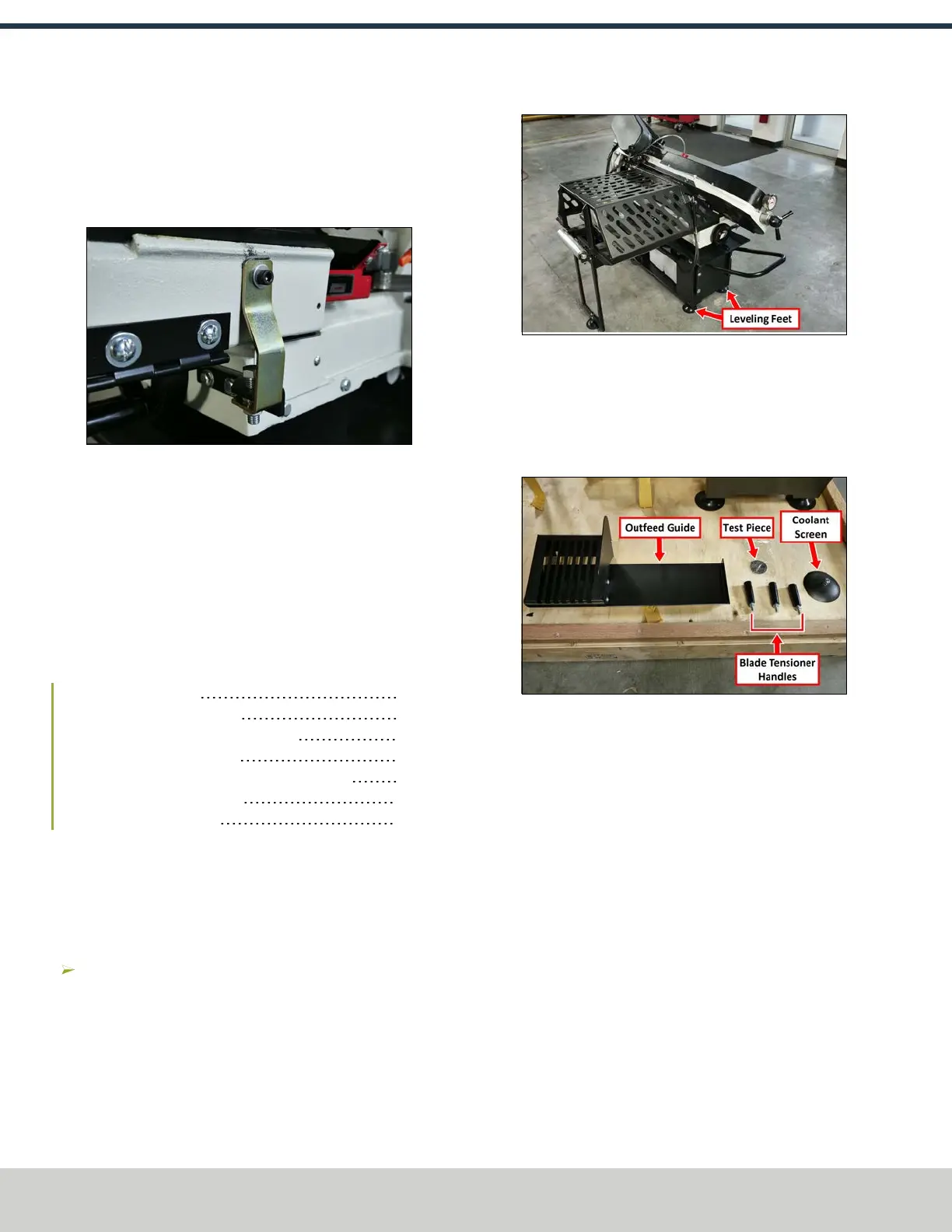

Figure 4-5: Shipping bracket securing the base casting
to the head casting.
13. We recommend replacing the bolt on the head casting,
and keeping the shipping bracket in the event of a future
move.
4.4 SET UP THE MACHINE
Before you begin machining operations, you must setup and
align the machine. Complete the following steps in the order
listed:
4.4.1 Level the Machine 22
4.4.2 Install the Coolant Screen 22
4.4.3 Install the Blade Tensioner Handles 23
4.4.4 Install the Outfeed Guide 23
4.4.5 Remove the Shipping Bolts on the Rear Cage 24
4.4.6 Verify Motor Belt Tension 24
4.4.7 Make Air Connections 24
4.4.1 Level the Machine
Before operating the machine, you must verify that it's
approximately level. While this helps with things like coolant
flow, it doesn't impact machine performance.
To level the machine:
Make note of any high or low spots, and, if required,
adjust the leveling feet.
Figure 4-6: Leveling feet on the machine.
4.4.2 Install the Coolant Screen
1. Find the accessory box that you set aside earlier.
Remove the coolant screen from the box, and set the
rest aside.
Figure 4-7: Coolant screen inside the accessory box.
