5. Tap the fixed jaw until it's flush with the side of the square. Verify that the square is still flush with the side of the blade.

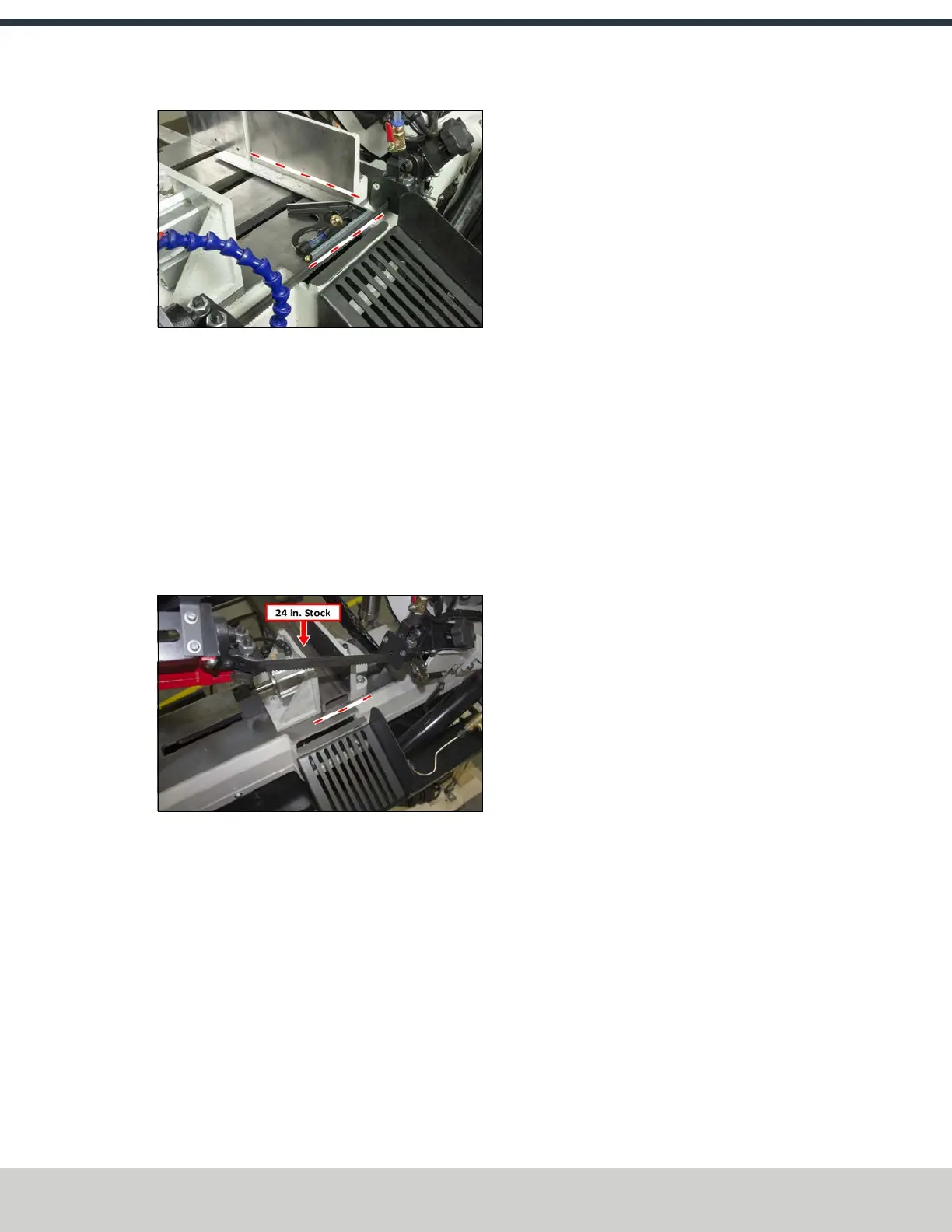

Figure 10-16: Fixed jaw aligned with the blade.
6. Tighten the two screws securing the fixed jaw to the base casting. Confirm that it remains flush with the square.
7. Remove the square from the base casting.
Adjust the Fixed Clamp Jaw
1. Find a piece of 24 in. stock. We recommend using one of the following:
l Cold-rolled steel (that's at least 1 in. square)
l Extruded aluminum (that's at least 1-1/2 in. square)
l Structural tubing (that's at least 1-1/2 in. square)
2. Open the clamps on both vises with the handwheel and the clamp handle. Then, load the stock between the vises as shown in the
following image.
Figure 10-17: Stock loaded between the vises.
3. Close the vise with the handwheel until the material is secure. Verify that the stock is flat against the entire length of the base
casting.
